schmersal PSC1-C-10-MC User Manual

Installation manual
HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 83 of 189
Version: 50F
Q0_P
X21
X12
Q1_N
Q2_P
Q3_N
NC
NC
Y0
Y1
X13
I12
I13
T0
T1
L +
L -

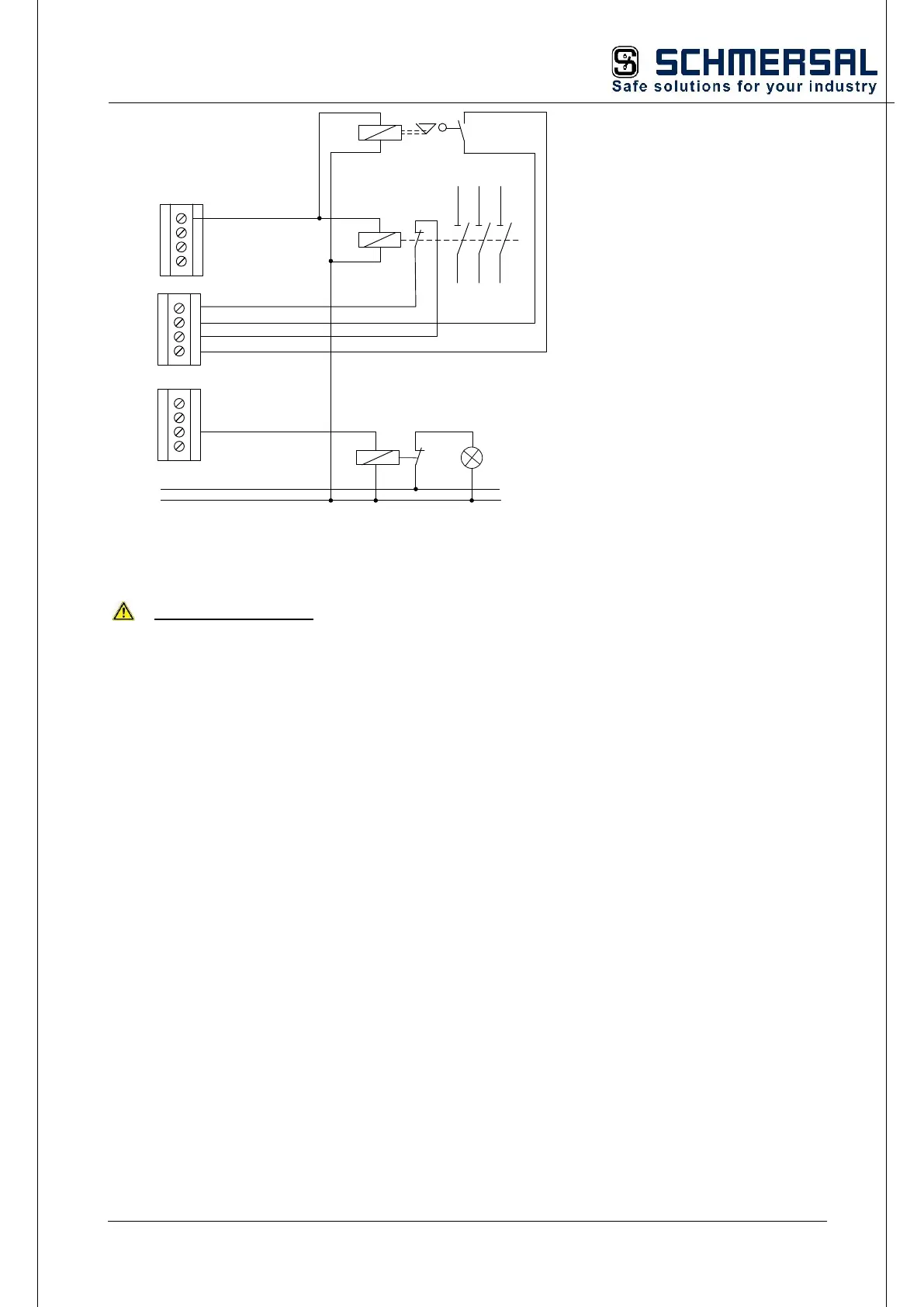

Single-channel switching output Q0_P with dual-channel external circuit as combination of electromechanical
element and hydraulic/pneumatic valve monitoring on two inputs
Safety instructions:
 Only recommended to a limited extent for safety applications! On this topic see also the
information in EN ISO 13849-1 on usage and the fault exclusions necessary.
 For PL c and higher a signalling/warning device is required that immediately makes
clear the hazardous situation to the operator
 With increased requirements, it is to be noted that at least 1 switching process must
take place every 24 hours to test the ability of the external contactor to switch.

schmersal PSC1-C-10-MC Specifications

General

Brand	schmersal
Model	PSC1-C-10-MC
Category	Control Unit
Language	English
