Installation manual
HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 86 of 189
Version: 50F

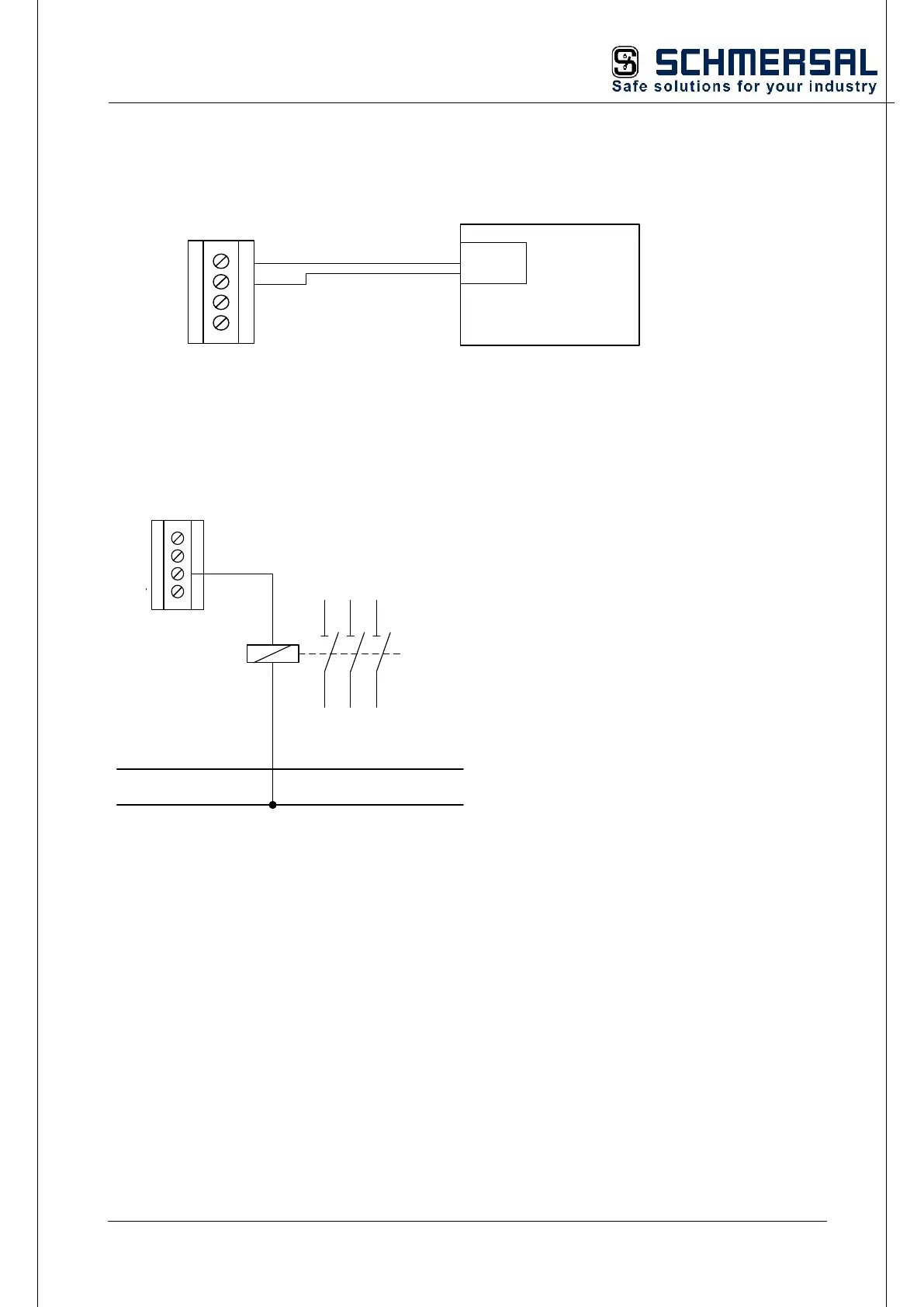

4.3.4.1.7 Dual-channel output with semiconductor output and external control circuit in PL e
For safety applications from PL d and higher according to EN ISO 13849-1. The external
circuit is operated using two channels via semiconductor outputs. PL e is required for the
external circuit for PL e according to EN ISO 13849-1.
STO
Pl e
Q0_P
X21
Q1_N
Q2_P
Q3_N
Dual-channel output with semiconductor output and external control circuit in PL e
4.3.4.1.8 Connecting an signal output
Both of the semiconductor outputs implemented in the PSC1-C-10-x module can be used for
functional applications. The outputs are not pulsed.
L+
L-
Y0
Y1
X13
Connecting an signal output
Applications with auxiliary outputs are not allowed for safety applications!
