Replacing the Ram (part 033074, detail 28)
This set of instructions consists of two (2) sections – section one details
removing the ram, while section two details replacing the ram.
Upon completing the removal and replacement, it is necessary to adjust the
machine for the thickness of the tag you are marking. Please see the section
“Adjusting the Model 4 or 6 for Tag Thickness” to properly adjust the
machine.
Removing the Ram

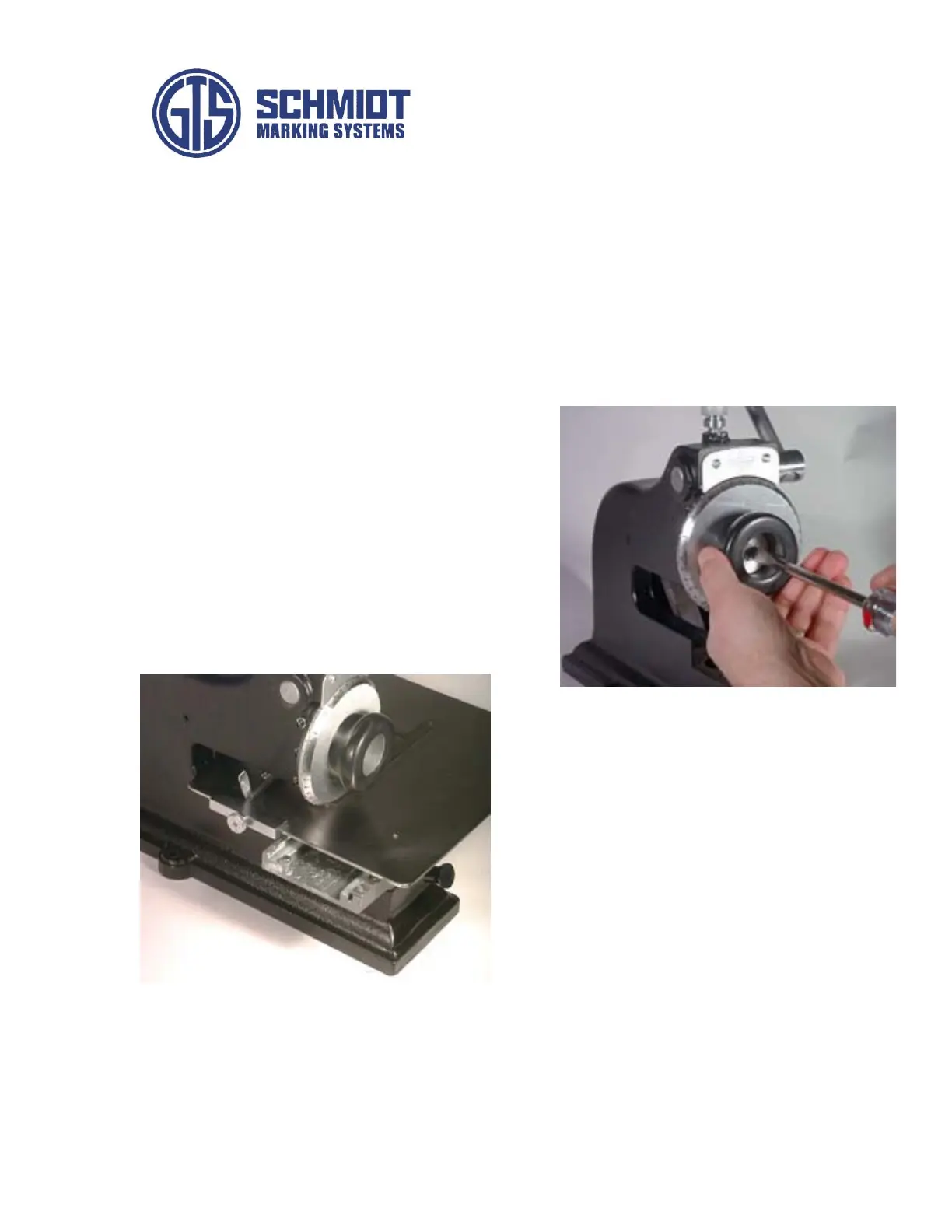

1. Unscrew the slotted screw in the center of
the dial knob (45) and remove the
character dial from machine.
2. Slide the table (5) all the way to the right.
To Next Page
