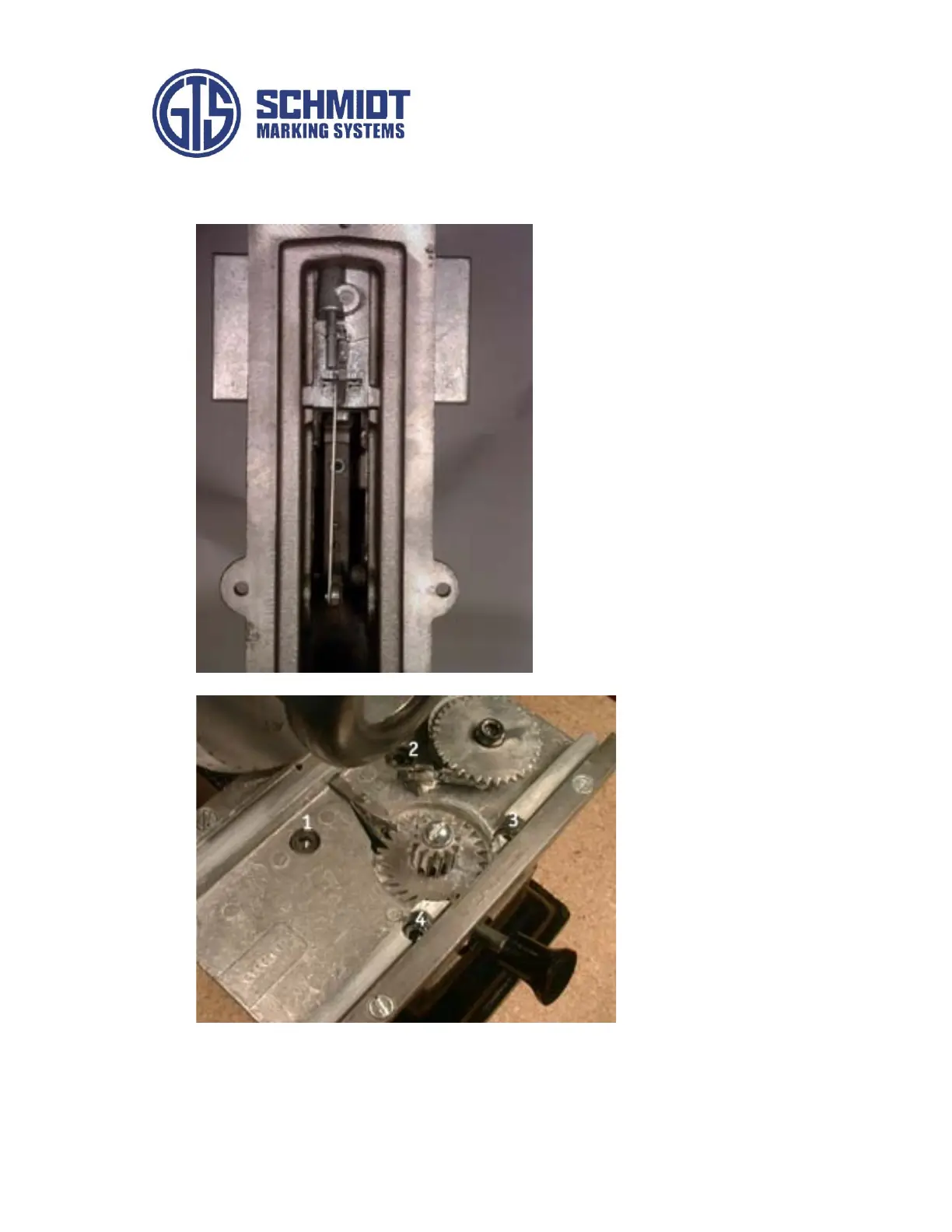

5. Turn machine upside-down and remove connector link (36) by pushing in
on the space button (2-
24). Occasionally, the
nut and screw on the bell
crank (17) must be
loosened to remove
connector link.
6. Remove the
four ¼ - 20
socket head
cap screws
from the table
slide
assembly.
They are
located at
bottom mid-
section of table
slide, and hold
the table slide
assembly to
the machine
casting.
