6. Verify the adjustment of the pawl assembly in relation to the escapement
wheel assembly.
The escapement wheel assembly (13-14) is located in the center of the table
slide assembly.

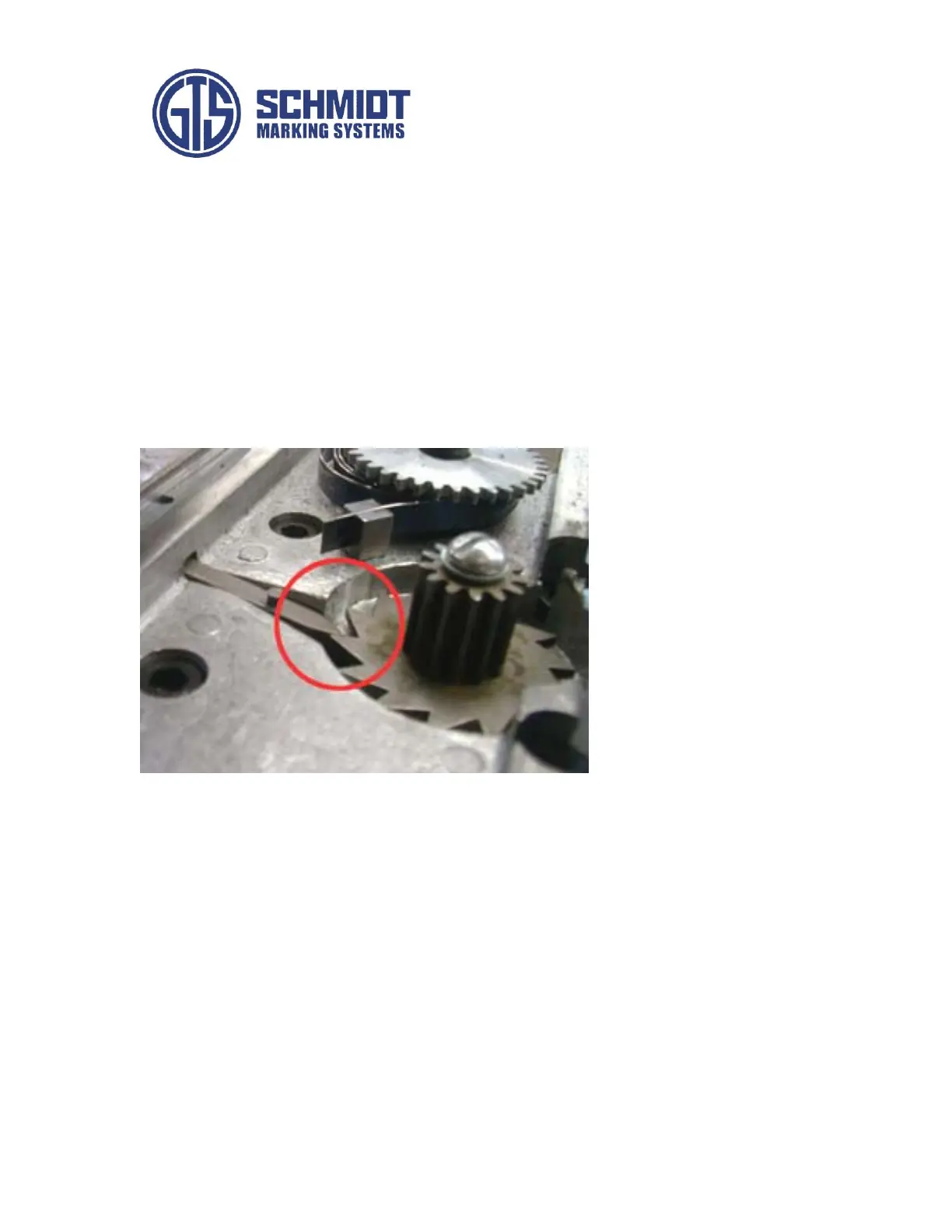

The pawl assembly (11-12-7-38) is located in between the teeth of the
escapement wheel assembly (13-14).
Move the handle to the 9
O’clock position.
If the machine is
adjusted properly, the
top of the pawl should be
flush with the top of the
flat gear on the
escapement wheel
assembly. You should be
able to run a fingernail
across the flat starburst
gear and across the pawl
assembly.
To adjust the pawl assembly height, continue with the following steps:
7. Turn machine upside down and locate the nut and screw on the bell crank
(17).
8. Loosen the nut on the bell crank.
9. Turn the screw on the bell crank clockwise to adjust the pawl assembly
downward to achieve flushness with the escapement wheel assembly or counter
clockwise to raise pawl assembly until flush with escapement wheel assembly
10. Tighten the nut on the bell crank once the adjustment is complete. Turn
machine right side up.
