PARTS LIST
M O D E L 4 & 6 N A M E P L AT E D E T A IL P R E S S E S
AVAILABLE DIAL SIZES
*Must have character dial size when ordering.
(ns) stands for Not Shown on diagram
3/32”, 1/8”, 3/16” or 1/4”
Sharp Face Characters Only
Marking Dial Assemblies include:
character dial(#26.), knob(#27.),
pointer(#28) and escapement wheel
(#29.) for the dial size you choose. All
dials are interchangeable on the Model
4 and Model 6.
Machines, Dials, and Replacement Parts
can be purchased online at:
https://secure.gtschmidt.com/sunshop/
1a. 033025 Table - Model 4
1b. (ns) 033026 Table - Model 6
2. 033023 Table Slide Assembly
3. 033062 Drum Gear
4. 033080 Trigger Spring
5. 033085 Pawl Spring
6. 033031 Stop Arm
7. 033033 Pawl Assembly
8. 033020 Space Button Assembly
9a. 033058 Table Spring - Model 4
9b. (ns) 033059 Table Spring - Model 6
10. 033076 Anvil
11. 033060 Spacing Rack
12. 033022 Front Guide
13. 033027 Rear Guide
14. 033082 Connector Link
15. 033097 Table Gauge Assembly
16. 033091 Table Gauge Nut
17. 054791 Spring Clamp
18. 033088 Clamp Handle
19. 033090 Table Gauge Bar
20. 033084 Gauge Lock
21. 033147 Crank Spring
22. 033046 Bell Crank - Model 4
23. 033047 Bell Crank - Model 6
24. 033045 Safety Spring
25. 033086 Depth Adjustment Screw
26. Size* Character Dial
27. 033092 Rubber Knob
28. Size* Pointer
29. Size* Escapement Wheel
30. 033074-P Ram with Ball Spr
ing
31. 033093 Plunger Spring
32. 033063 Ball Spring
33. 033077 Capstan Screw
34. 033081 Washer
35. 033079 Operating Handle Assembly
36. 033078 Cam
37. 033072 Nameplate
38. 033073 Gib
39. 054082 Truarc Ring

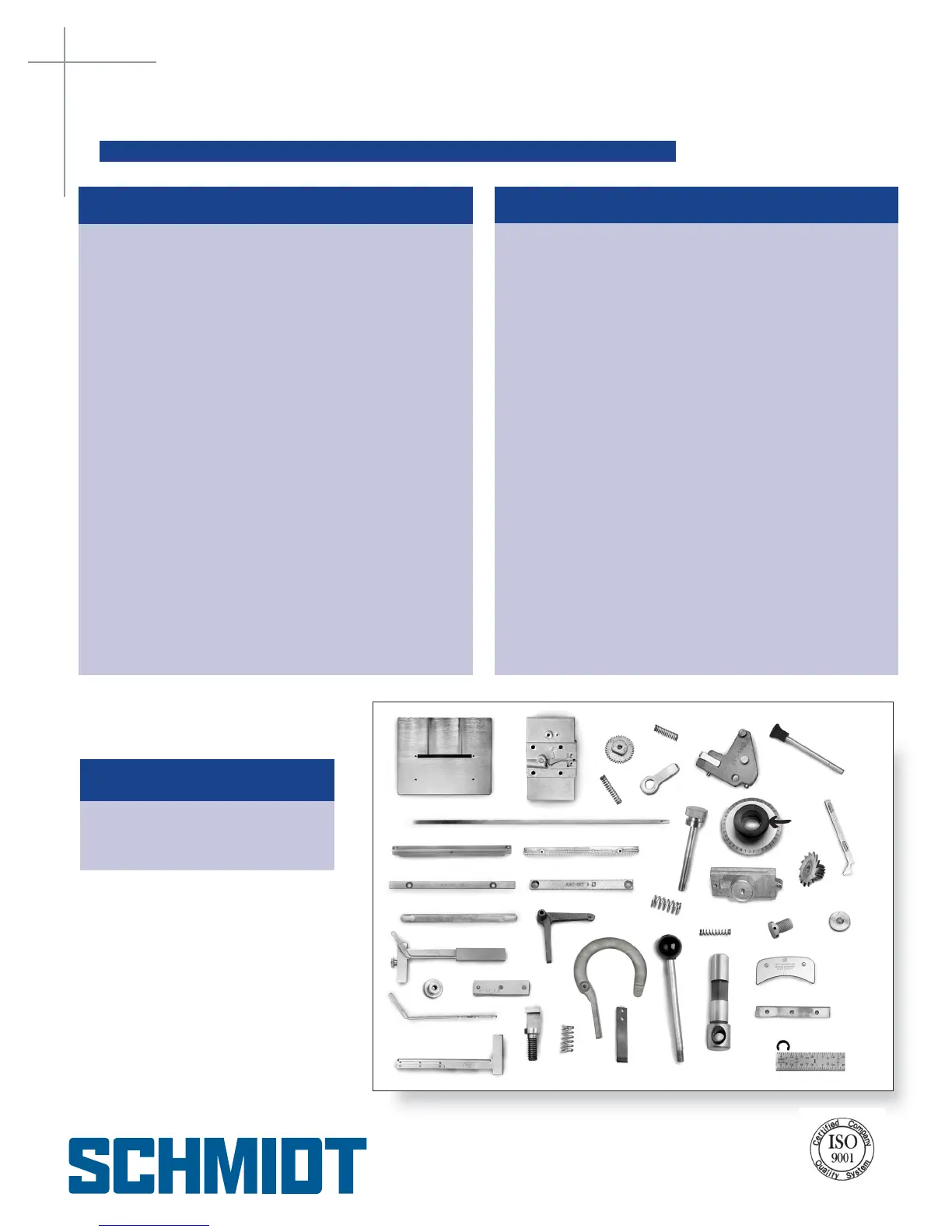

Diagram SKU Part Name Diagram SKU Part Name
1a.
2.
3.
4.
5.
6.
7.
8.
9a.
10. 11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
Images for diagram are not to scale of one another
6151 W Howard Street Niles, IL 60714
847-647-7117 | 800-323-1332
www.gtschmidt.com
ISO 9001: 2015
