EN
3. Unzip the zipper.
4. Thread the chinstrap out of the
A.R.O.S. strap and pull this sideways.
Pull the neck strap rearwards out of
the cheek pad.
5. Repeat points 2 to 4 to dismantle the
cheek pad on the other side.

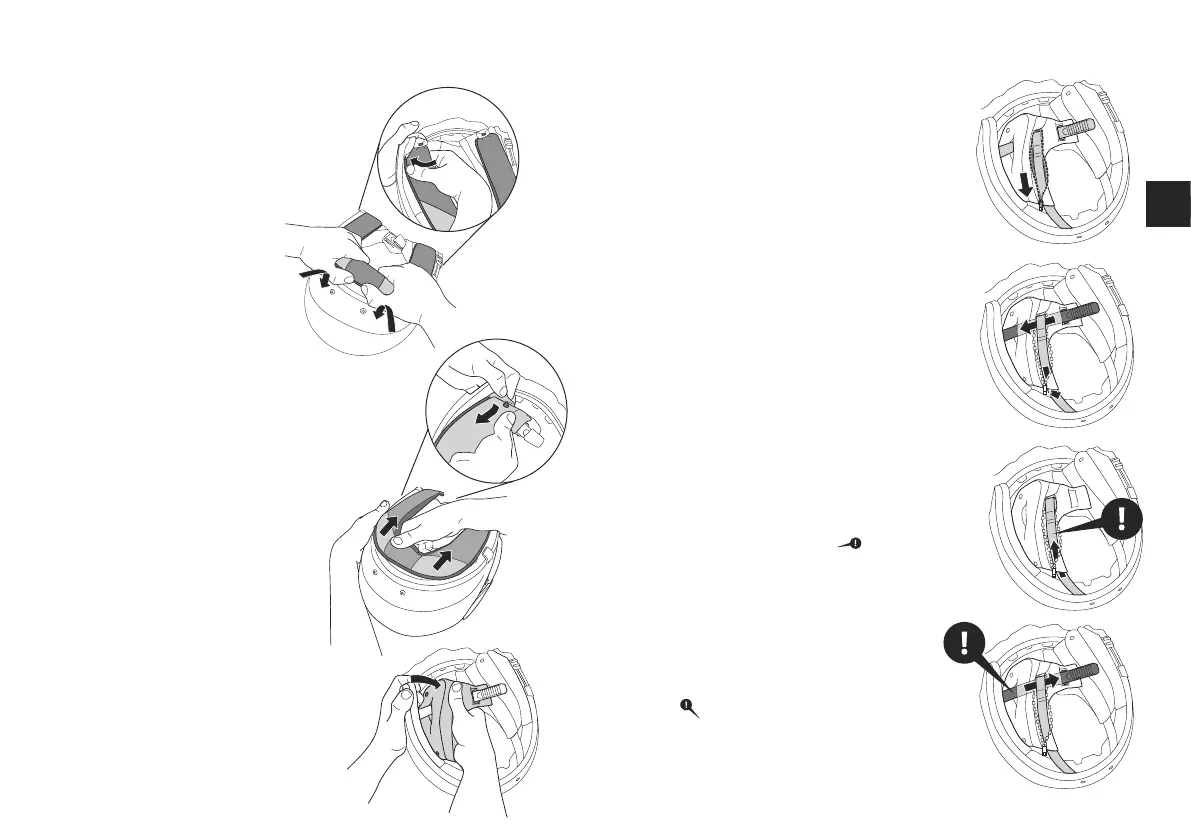

MOUNTING THE CHEEK PAD
1. Push the A.R.O.S. strap through
the neck strap channel as far as the
chinstrap padding opening.
2. From the outside, thread the chinstrap
through the cheek cushion and
through the A.R.O.S. strap and pull it
tight from the back.
3. Reinsert the neck collar by rst
inserting the guide pins into the front
plugs and sockets on the lower helmet
edge on both sides and then mount
the neck collar piece by piece into the
guide gap.
DISMANTLING THE CHEEK PAD
1. Undo the snaps on the front straps of
the neck collar and pull the neck collar
out of the mounting by pulling strongly
inwards.
2. Remove the cheek pad by pulling the
three snaps out of the red plugs and
sockets.
C. THE HELMET
