3. Pull the plastic bar out of the
mounting and remove the crown
liner.

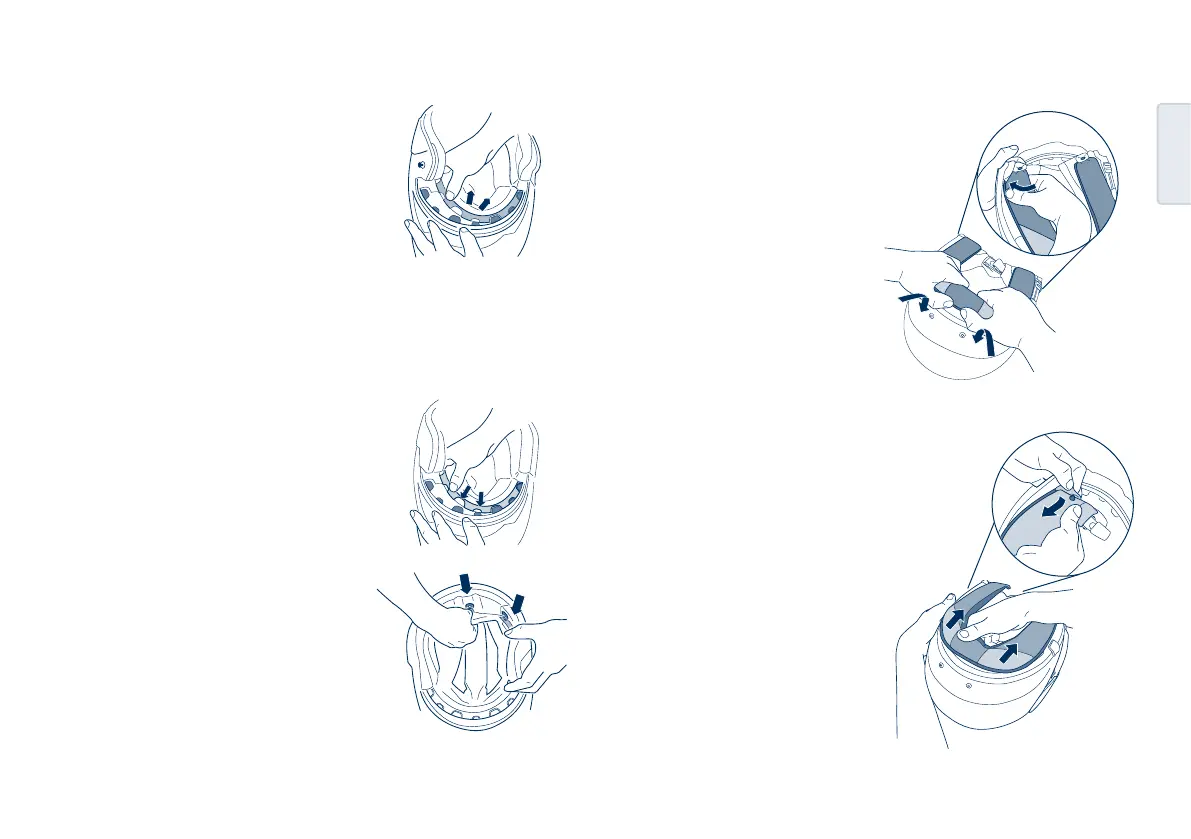

Mounting the crown liner
The sewn-in plastic bar on the forehead section and the
retention flaps in the neck area are used as mounting assists.
1. Push the plastic bar piece by piece
below the notches on the plastic
bar affixed to the inner shell.
2. Insert the plastic retention flaps
with round holes over the pins
sewn into the rear section of the
cheek pad and affix them using
the red snaps.
3. Reinsert the neck collar by first
inserting the guide pins into the
front plugs and sockets on the
lower helmet edge on both sides
and then mount the neck collar
piece by piece into the guide gap.
Dismantling the cheek pad
1. Undo the snaps on the front straps
of the neck collar and pull the
neck collar out of the mounting by
pulling strongly inwards.
D. THE HELMET
