Commissioning instructions – Schüco DCS Touch Display 25
Dok-Nr.10000432116_01

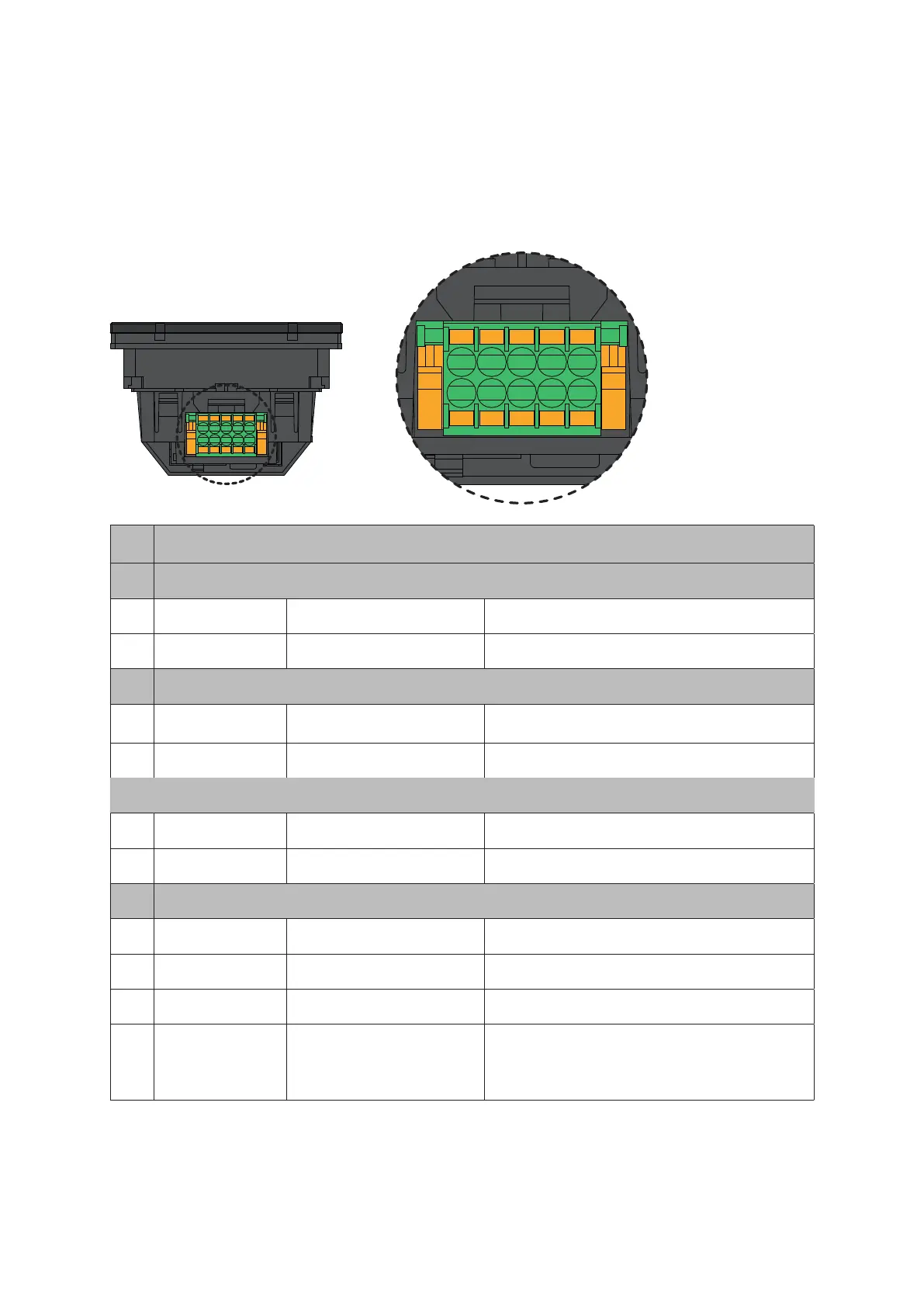

7.2. Connections to Schüco DCS Touch Display
On the underside there is a 2 x 5-pole socket with the inputs and outputs for
the Schüco DCS Touch Display. A suitable plug is supplied. The connections are assigned as follows:
A2A1 A3 A4 A5
B2B1 B3 B4 B5
Power supply Voltage range Notes
Input
A5 IN+ 12-30 V DC (22 mA) Galvanic separation, max. 60 V DC / 42 V AC
B5 IN- GND
Potential-free output
B3 OUT NO
6-24 V AC / V DC (max. 2
A)
Normally Open (closer),
max. 60 W power rating
B4 OUT COM
Output with potential
A4 OUT24V- GND
A3 OUT24V+ 24 V DC (max. 200 mA) Max. 4.8 W
Audio
A1 LINE-IN+ For microphones with line level
A2 LINE-IN-
B2 LINE-OUT-
B1 LINE-OUT+
e.g. for AFIL (audio frequency induction loop.
This allows a hearing aid wearer to receive
interference-free audio signals by means
of the audio device)
