SCHUNK MMS-P22 - Electrical Connection; Installing and Connecting the Sensor

Assembly and settings
01.00 | MMS-P22 / MMSK-P22 | Assembly and Operating Manual | en | 1566688 9

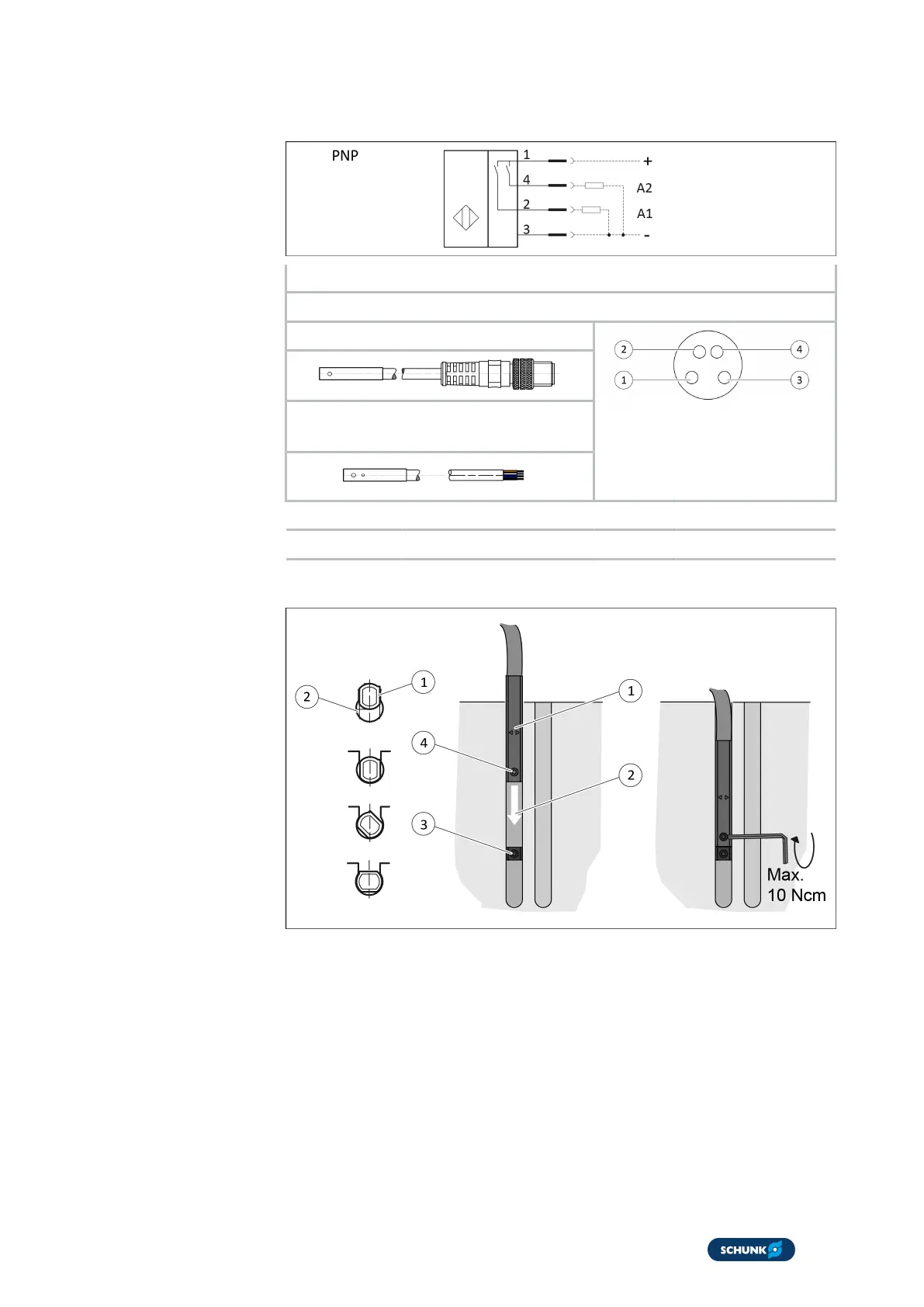

4.2 Electrical connection
Type of switching : PNP
Switching function: Closing
Variant MMS-P 22: Connector M8
Variant MMSK-P 22: 2 m cable, open
wire strand
1 Brown Supply voltage 3 Blue GND
2 White Output 1 4 Black Output 2
4.3 Installing and connecting the sensor
Mechanical connection
1. Turn the sensor (1) into the groove (2),
Or:Push the sensor (1) into the groove (2) until it reaches the
clamping stop (3).
2. Secure the sensor (1) using the set-screw.
ð Observe the maximum tightening torque of 10Ncm.
3. Connect the sensor (1) and fasten the cable.
4. Secure the electronics with cable connectors to relieve the stress
on the cable.
ð Use the ribs on the electronics to fasten the cable.
