Schwank primoSchwank - Dimensions & Capacities

supra/primo Manual
IM091112
RD: NOV 2009
RL: 11A - BA
17

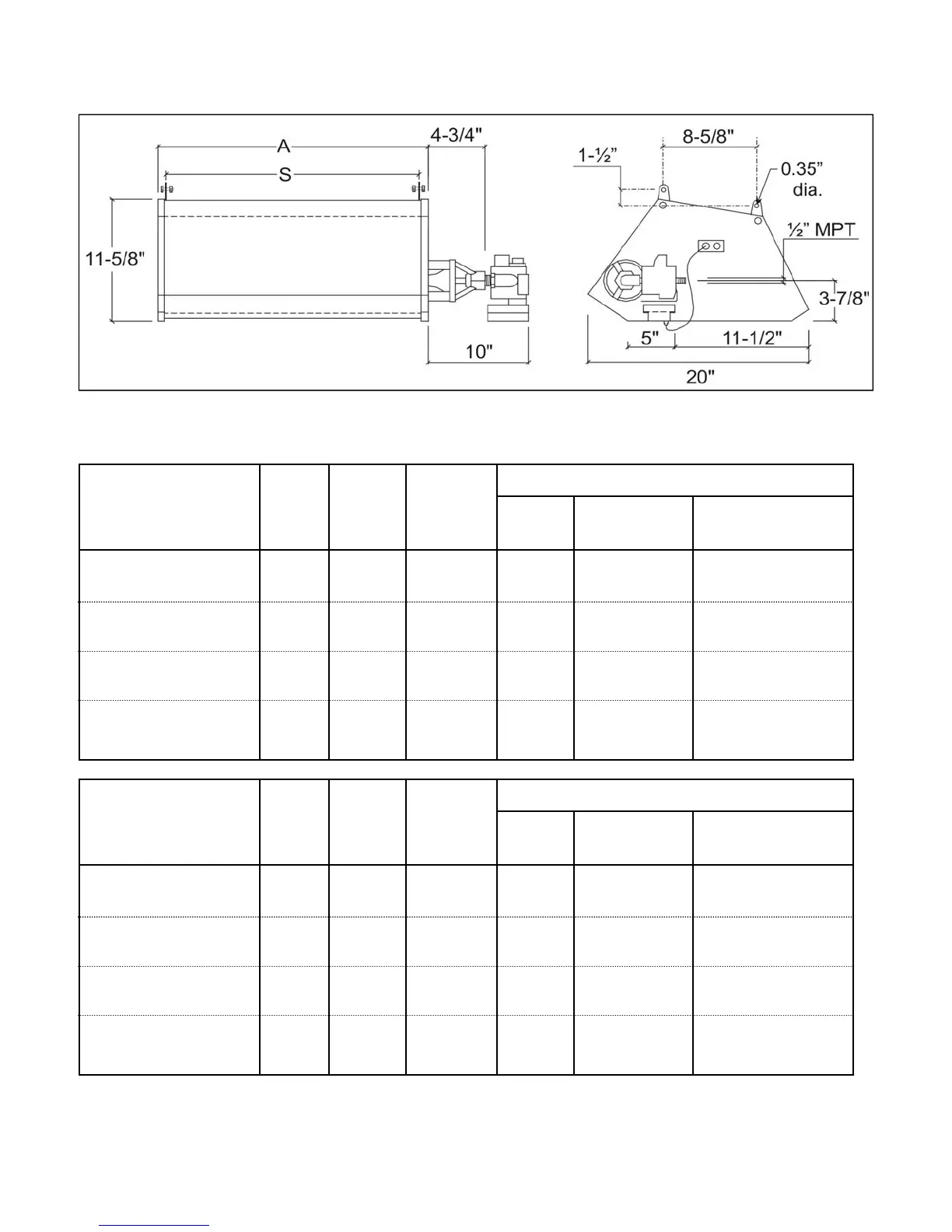

FIGURE 4: DIMENSIONS: primoSchwank & supraSchwank
TABLE 4: DIMENSIONS / WEIGHT / CAPACITY
primoSchwank
MODEL
CAPACITY
GAS
TYPE
INPUT
Btuh [kW]
IR OUTPUT
Btuh [kW]
primoSchwank 10
primoSchwank 15
primoSchwank 20
primoSchwank 30
NG
LPG
NG
LPG
NG
LPG
NG
LPG
37,500 [11]
34,100 [10]
56,000 [16]
51,000 [15]
75,000 [22]
68,500 [20]
113,000 [33]
103,000 [30]
24,600 [7.2]
22,370 [6.6]
35,400 [10.4]
32,230 [9.4]
49,050 [14.4]
44,800 [13.1]
76,500 [22.4]
69,730 [20.4]
‘A’
In.
[cm]
23.75"
[60.3]
34.50"
[87.6]
45.62"
[116]
67.32"
[171]
‘S’
In.
[cm]
21.7"
[55.1]
32.6"
[82.8]
43.5"
[110.5]
65"
[165]
WEIGHT
Lbs.
[kg]
23.5
[10.7]
33.6
[15.2]
40.3
[18.3]
54.9
[24.9]
supraSchwank
MODEL
CAPACITY
GAS
TYPE
INPUT
Btuh [kW]
IR OUTPUT
Btuh [kW]
supraSchwank 10
supraSchwank 15
supraSchwank 20
supraSchwank 30
NG
LPG
NG
LPG
NG
LPG
NG
LPG
29,500 [9]
27,000 [8]
44,000 [13]
40,500 [12]
59,000 [17]
54,500 [16]
88,500 [26]
81,500 [24]
22,800 [6.7]
20,850 [6.1]
34,630 [10.1]
31,870 [9.3]
46,730 [13.7]
43,160 [12.6]
71,700 [21.0]
66,100 [19.4]
‘A’
In.
[cm]
23.87"
[60.6]
34.60"
[87.9]
45.75"
[116]
67.5"
[171]
‘S’
In.
[cm]
21.7"
[55.1]
32.6"
[82.8]
43.5"
[110.5]
65"
[165]
WEIGHT
Lbs.
[kg]
37
[17]
53
[24]
62
[28]
82
[37]
