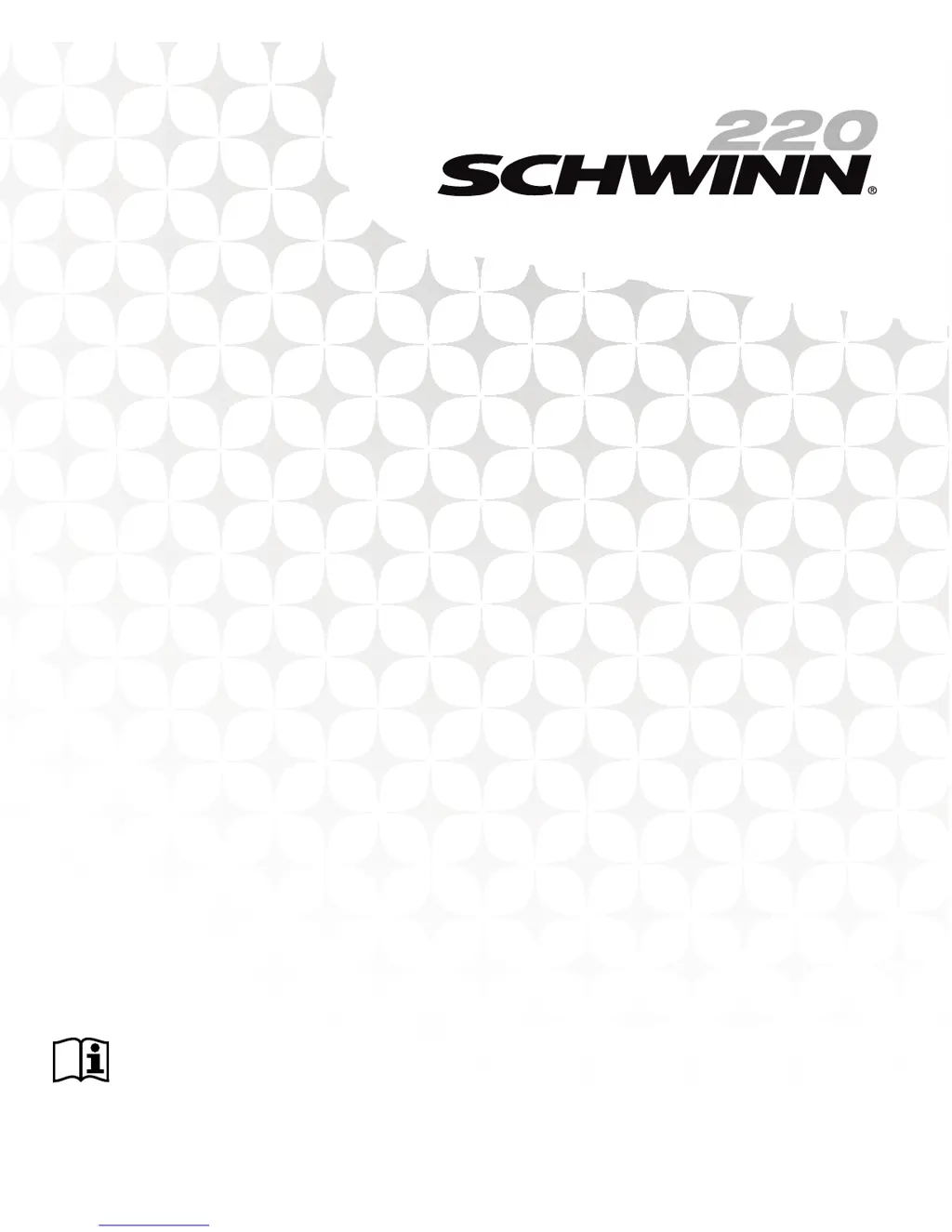

ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.schwinnfitness.com

Table of Contents

Questions and Answers

  • T
    Tammy PhamAug 16, 2025
    What to do if my Schwinn 220 Recumbent Bike 2012 model Exercise Bike has no display or won't turn on?
    • R
      Randy DawsonAug 16, 2025
      First, ensure the unit is plugged into a functioning wall outlet. Check that the connection is secure and undamaged; replace the adapter or connection at the unit if either is damaged. Make sure all wires in the cable are intact, replacing the cable if any are visibly crimped or cut. Confirm the cable is connected securely and oriented properly, ensuring the small latch on the connector lines up and snaps into place. Inspect the console display for cracks or other damage, and replace the console if damaged. If the console only has a partial display and all connections are fine, replace the console.
  • T
    Tiffany HarperAug 19, 2025
    How to fix a Schwinn 220 Recumbent Bike 2012 model with no speed or RPM reading and showing an 'E3' error?
    • J
      Jill BlakeAug 19, 2025
      If your Schwinn Exercise Bike displays an 'E3' error code or shows no speed/RPM reading, first check that all wires in the cable are intact and replace the cable if any are cut or crimped. Ensure the cable is connected securely and oriented properly, with the small latch on the connector lined up and snapped into place. Verify that the magnet is in place on the pulley. Also, check that the RPM sensor is aligned with the magnet and connected to the data cable; realign the sensor if necessary, and replace it if there's any damage to the sensor or the connecting wire.
  • J
    Jennifer PetersonAug 22, 2025
    How to fix a Schwinn Exercise Bike that rocks or doesn't sit level?
    • J
      johnevansAug 22, 2025
      To stabilize your Schwinn Exercise Bike, adjust the leveling feet by turning them in or out. If the surface is extremely uneven, this adjustment may not be enough; move the bike to a more level area.
  • J
    James PowellAug 25, 2025
    Why does my Schwinn 220 Recumbent Bike 2012 model Exercise Bike console shut off while in use?
    • M
      Melanie HudsonAug 26, 2025
      The console might be shutting off due to cable issues or a loose connection. Check that all wires in the cable are intact and replace the cable if any are cut or crimped. Also, ensure the cable is connected securely and oriented properly, making sure the small latch on the connector lines up and snaps into place. Try unplugging the unit from the electrical outlet for 3 minutes, then reconnect it. Also, verify that the magnet is in place on the pulley.
  • C
    christopherhigginsAug 28, 2025
    Why does my Schwinn Exercise Bike console display an “E2” error code?
    • D
      David YorkAug 28, 2025
      If your Schwinn Exercise Bike console shows an “E2” error code, start by checking that all wires in the cable are intact and replace the cable if any are cut or crimped. Also, be sure the cable is connected securely and oriented properly, ensuring the small latch on the connector lines up and snaps into place. If these tests don't reveal any other issues, the console should be replaced.
  • S
    Steven MurrayAug 31, 2025
    What to do if the pedals on my Schwinn 220 Recumbent Bike 2012 model Exercise Bike are loose or it's difficult to pedal?
    • J
      Joshua JohnsonAug 31, 2025
      If you're experiencing loose pedals or difficulty pedaling on your Schwinn Exercise Bike, ensure the pedal is tightened securely to the crank and that the connection is not cross-threaded. Also, check that the crank is tightened securely to the axle.
  • C
    Carol BrooksSep 3, 2025
    How to fix seat post movement on Schwinn 220 Recumbent Bike 2012 model Exercise Bike?
    • K
      Kristopher SmithSep 3, 2025
      To resolve seat post movement on your Schwinn Exercise Bike, ensure the adjustment pin is locked into one of the seat post adjustment holes. Also, make sure the knob is securely tightened.
  • R
    Ricardo BartonSep 6, 2025
    What to do if the fan on my Schwinn Exercise Bike won't turn on or off?
    • M
      mwalkerSep 6, 2025
      If the fan on your Schwinn Exercise Bike is not working correctly, first check that all wires in the cable are intact; if any are cut or crimped, replace the cable. Ensure the cable is connected securely and oriented properly, making sure the small latch on the connector lines up and snaps into place. Try unplugging the unit from the electrical outlet for 3 minutes, then reconnect it.
  • J
    Jennifer GarzaSep 8, 2025
    What to do if the Schwinn 220 Recumbent Bike 2012 model Exercise Bike unit operates but Contact HR is not displayed?
    • A
      Alexis PriceSep 9, 2025
      If your Schwinn Exercise Bike is operating, but 'Contact HR' is not displayed, ensure the cable is securely connected to the console. Also, check that the cables from the handlebars and the cable to the console are secure and undamaged; some models may require the seat back to be raised to access the cable box. Make sure your hands are centered on the HR sensors and kept still, with relatively equal pressure applied to each side.
  • L
    Lisa AdamsSep 12, 2025
    Why is there a clicking sound when pedaling my Schwinn 220 Recumbent Bike 2012 model Exercise Bike?
    • W
      Wanda MaySep 12, 2025
      If you hear a clicking sound when pedaling your Schwinn Exercise Bike, remove the pedals and reattach them fully.

Summary

Important Safety Instructions - Assembly

Safety Warning Labels and Serial Number

Assembly Instructions

Attach Stabilizers to Frame

Connect front and rear stabilizers to the main frame using hardware A and the 6mm tool.

Connect Rear Frame to Main Frame

Connect the rear frame to the main frame, ensuring console cable is not crimped.

Attach Handlebar to Seat Frame

Attach Seat Back and Bottom

Mount Seat Assembly onto Seat Rail

Connect Heart Rate Cable

Attach Seat Rail Bracket

Install Seat Rail Assembly to Frame

Connect Cables and Console Mast

Connect Cables to Console

Attach Console to Mast

Adjust Console and Mast, Tighten Hardware

Attach Pedals to Frame

Attach Water Bottle Holder and Power Cord

Final Inspection

Ensure all hardware is tight and components are properly assembled. Record serial number.

General Safety Instructions

Console Operation

Keypad Functions

Heart Rate Monitoring

Level and Heart Rate Display

Explains the LEVEL/HR display field showing resistance level and heart rate in BPM.

Contact Heart Rate Sensors

Describes how CHR sensors on handlebars work and factors affecting signal detection.

Using the Bike

Console Setup and Programs

Quick Start Workout

User Profile Management

User Profile Options

Custom Workout Creation

Fitness Test

Workout Tracking and Results

Results and Cool Down

Pausing and Stopping Workouts

User Statistics

Console Setup Mode

Maintenance

Daily Maintenance Checks

Examine for wear, wipe machine and console with a damp cloth after each workout.

Weekly Maintenance Checks

Monthly Maintenance Checks

Troubleshooting Common Issues

No Display or Power Issues

Check electrical outlet, cable connections, data cable integrity, and console display for damage.

Heart Rate Sensor Problems

Verify HR cable connection, box connection, and proper hand placement on sensors.

Troubleshooting Error Codes and Sleep Mode

Console Error Codes E2 & E3

Troubleshooting for console error codes E2 (data cable) and E3 (speed/RPM sensor).

Console Auto Shut-Off Troubleshooting

Check data cable integrity and connections; consider resetting the machine for auto shut-off.

Troubleshooting Operational Problems

Fan and Stability Troubleshooting

Troubleshoot fan issues and unit rocking by checking connections, levelers, and surfaces.

Pedal and Seat Post Issues

Address loose pedals, clicking sounds, and seat post movement by checking connections and pins.

Schwinn 220 Recumbent Bike 2012 model Specifications

General IconGeneral
TypeRecumbent Bike
Resistance TypeMagnetic
Resistance Levels8
Display TypeLCD
User ProfilesNo
Weight Capacity300 lbs
PedalsStandard
Transport WheelsYes
Display FeaturesTime, Speed, Distance, Calories, Pulse, RPM
Programs6
Heart Rate MonitoringGrip
Seat TypePadded
