Schwinn MPower - Full Up;Down Position Calibrations; Full Up Position Calibration; Full Down Position Calibration

FullUpPositionandFullDownPositionCalibrations
ThePowerSensormusthavevalidZeroGCalibrationbeforeyoudotheFullUpPositionandFullDownPositioncalibrations.
ZeroGCalibrationisdoneatthefactory.ToinspecttheZeroGCalibrationstatus,lookatthe0Gsub-submenuoptionandmake
surethattheProgressStatusshows“PASS”.
WhenyoudotheFullUpPositionandFullDownPositioncalibrations,thesequenceisnotimportant.
NOTICE:ThePowerSensormustbeinstalledonthebikefortheFullUpPositioncalibrationandtheFullDownPosition
calibration.RefertotheSchwinn®MPower™PowerUpgradeInstallationGuide.
• •
•
IfthePowerSensorisnotinstalledonthebike,installitonthebike.RefertotheSchwinn®MPower™PowerUpgrade
InstallationGuide.
• •
•
TaptheAVG/ENDorSTAGEbuttontolookattheStageoptions.
FullUpPosition:
• •
•
TaptheAVG/ENDorSTAGEbuttontogototheUP(Stage1)option.
• •
•
PushtheBacklightbuttontomakeyourselection.
• •
•

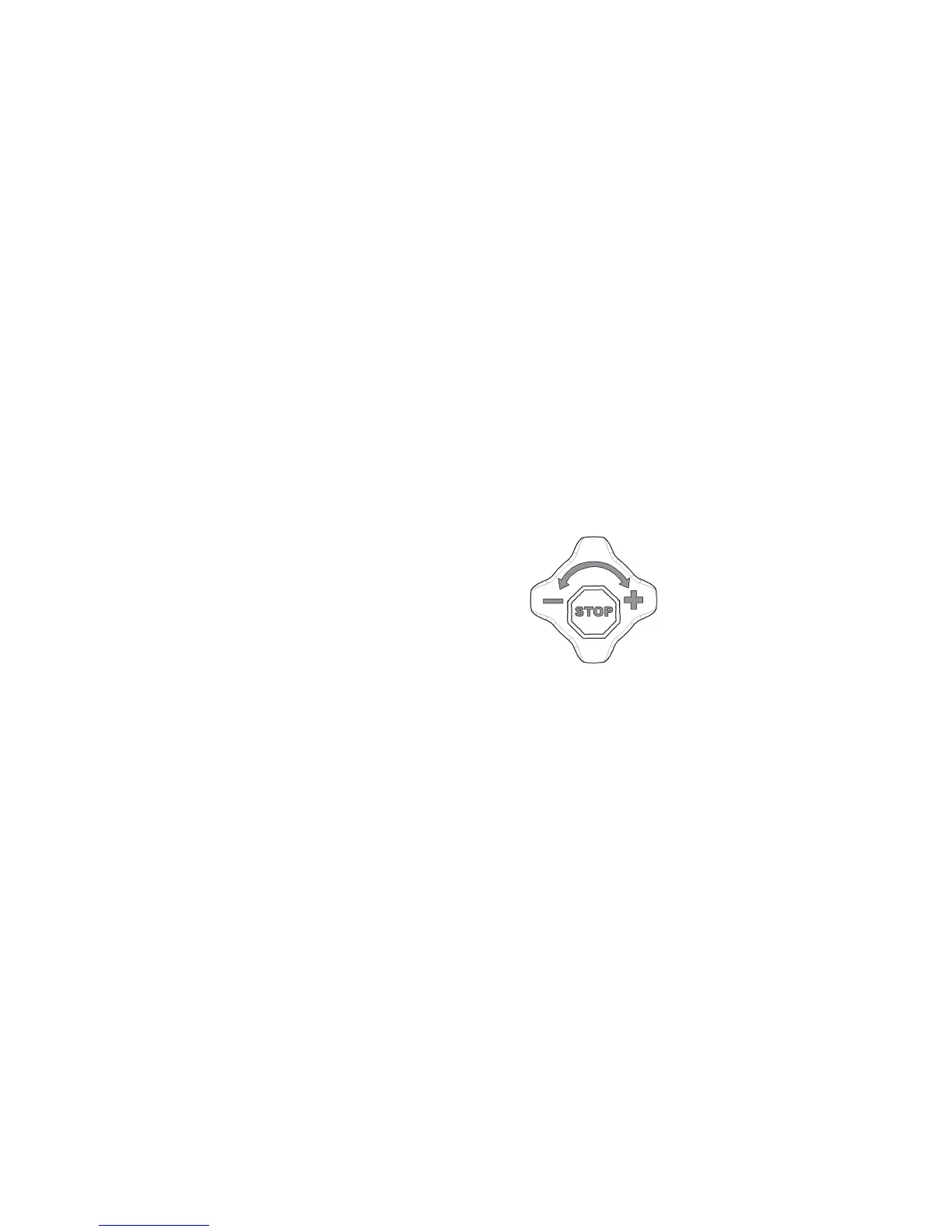

TurntheBrakeAdjustmentKnobtothefarthestleftposition(–)toraisetheBrake
CarriagetotheFullUpPosition.
• •
•
AftertheBrakeCarriageisstablefor3–4seconds,pushtheBacklightbutton.
• •
•
Thetimerstartstocountdown.
• •
•
LookfortheresultfromthePowerSensorontheconsoledisplay.Themessage
“PASS”showsifthecalibrationresultissatisfactory.Themessage“FAIL”showsif
thetimercounteddowntozeroandthecalibrationresultisunsatisfactory.
FullDownPosition:
• •
•
TaptheAVG/ENDorSTAGEbuttontogotothedn(Stage2)option.
• •
•
PushtheBacklightbuttontomakeyourselection.
• •
•
TurntheBrakeAdjustmentKnobtothefarthestrightposition(+)tolowertheBrake
CarriagetotheFullDownPosition.
• •
•
PushtheBacklightbutton.
• •
•
Thetimerstartstocountdown.
• •
•
LookfortheresultfromthePowerSensorontheconsoledisplay.Themessage
“PASS”showsifthecalibrationresultissatisfactory.Themessage“FAIL”showsif
thetimercounteddowntozeroandthecalibrationresultisunsatisfactory.
