Schwinn Rascal - Page 9

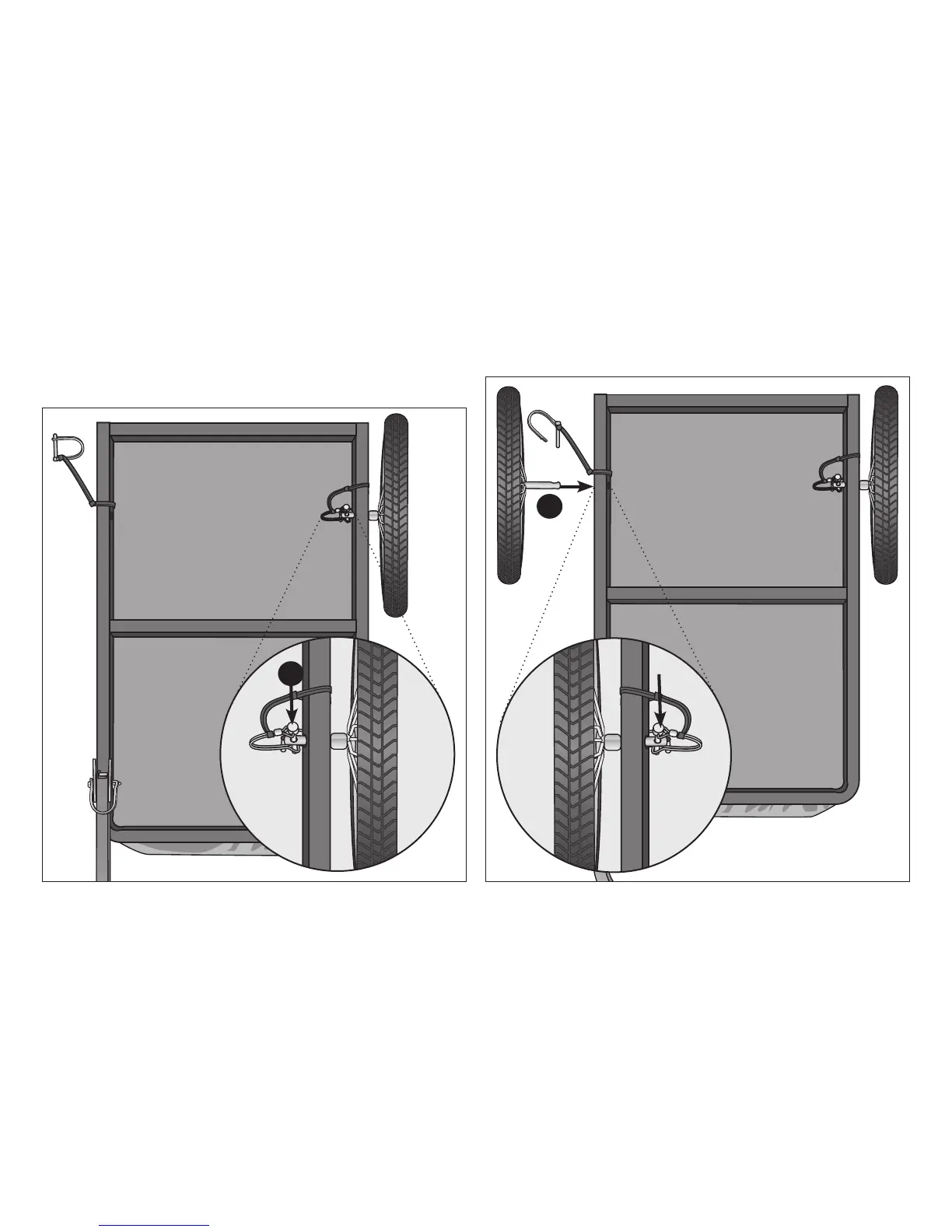

❸ Insert the locking pin into the hole on the end of the axle and
slide the end of the safety loop over the end of the locking pin.
Check that the locking pin is securely in place. Figure 3.4
❹ Repeat steps 2 and 3 for the remaining wheel. Figure 3.5
Schwinn Pet Trailer • model 13-SC315 6
Figure 3.4 Figure 3.5
3
4
