Fuses

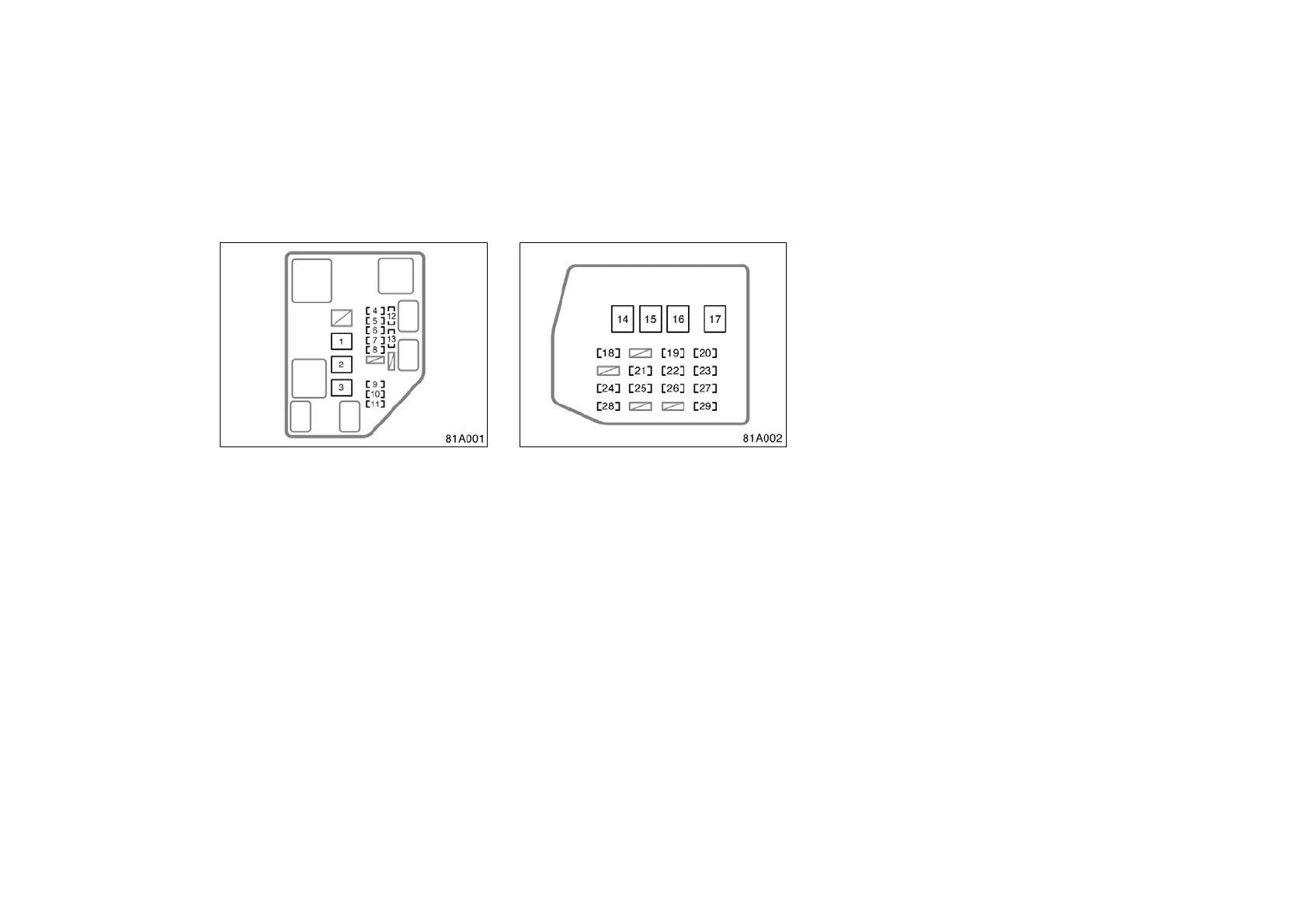

81A001
Engine compartment
Fuses
1. RDI 30 A: Electric cooling fan
2. HTR SUB1 50 A: Air conditioning sys-
tem
3. ABS NO.1 40 A: Anti−lock brake sys-
tem
4. DOME 15 A: Clock, interior light,
gauges of meters
5. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
81A002
Instrument panel
6. HORN 15 A: Horn
7. AM2 15 A: Starter system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, discharge warning system
8. ST 30 A: Starter system
9. H−LP LH/H−LP LO LH 10 A: Left−
hand headlight
10. H−LP RH/H−LP LO RH 10 A: Right−
hand headlight
11. A/C2 7.5 A: Air conditioning system
12. SPARE 30 A: Spare
13. SPARE 15 A: Spare
14. AM1 40 A: “ACC”, “GAUGE”, “WIPER”,
and “ECU−IG” fuses
15. POWER 30 A: Power windows
16. HTR 40 A: Air conditioning system
17. DEF 30 A: Rear window defogger sys-
tem.
18. GAUGE 10 A: Back−up lights, charging
system, air conditioning system, power
window system, gauges of meters
19. D/L 25 A: Power door lock system
20. TAIL 10 A: Tail lights, parking lights,
license plate lights
21. WIPER 20 A: Windshield wipers and
washer
22. ECU−B 7.5 A: SRS airbag system
23. FOG 15 A: Front fog lights
24. ACC 15 A: Clock, cigarette lighter
25. ECU−IG 7.5 A: Anti−lock brake system,
electric cooling fan
26. OBD 7.5 A: On−board diagnosis sys-
tem
