4-3. Do-it-yourself maintenance

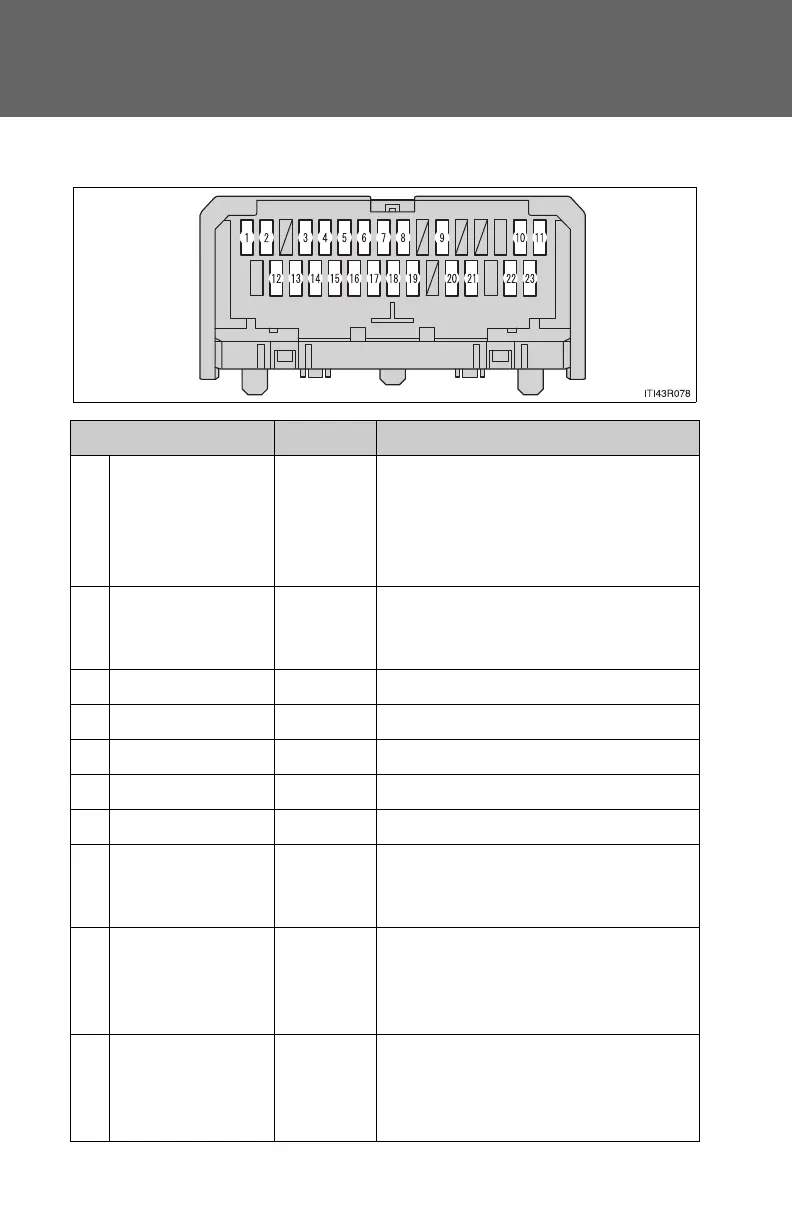

■ Under the driver’s side instrument panel
Fuse Ampere Circuit
1 TAIL 10 A
Parking lights, tail lights, side
marker lights, gauges and meters,
license plate lights, multiport fuel
injection system/ sequential multi-
port fuel injection system
2 PANEL 7.5 A
Instrument cluster lights, instru-
ment panel lights, gauges and
meters
3 FR DOOR 20 A Power windows
4 RL DOOR 20 A Power windows
5 RR DOOR 20 A Power windows
6 SUNROOF 20 A No circuit
7 CIG 15 A Cigarette lighter
8 ACC 7.5 A
Outside rear view mirror switch,
shift lock control system, audio sys-
tem, body ECU
9 MIR HTR 10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, outside rear view mirror
defoggers
10 IGN 7.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, steer-
ing lock system
