SCIWIL S861-LCD User Manual

4
Changzhou Sciwil E-
Mobility Technology Co., Ltd.
9
th
Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: +86 519-85602675 Tel: +86 519-8560067
5

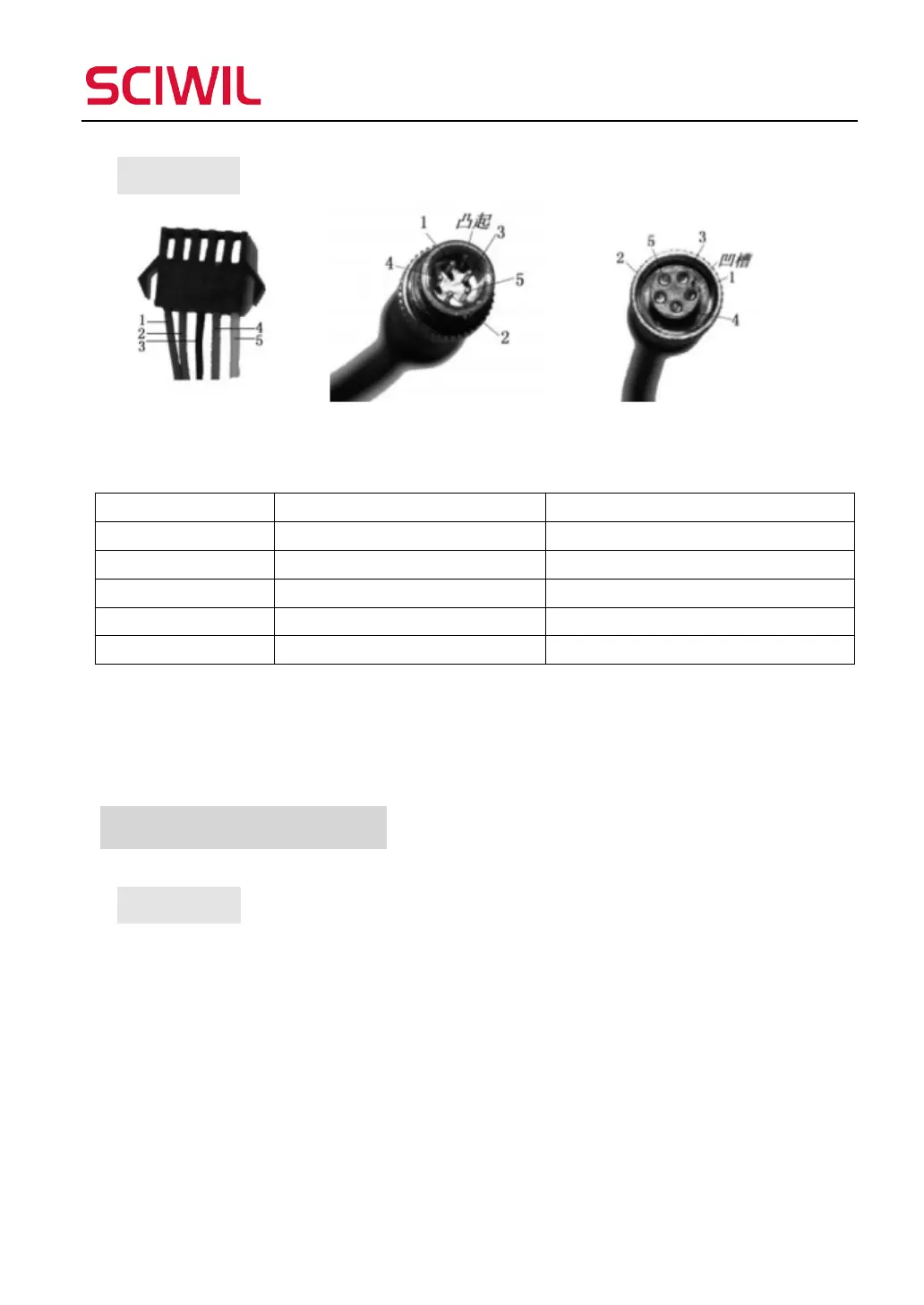

4.2 Connection
Connector to Controller Display Cable Outlet Connector Display Cable Coupling Connector
Standard Connector Arrangement
Sequence No. Wire Color Functions
1 Red（VCC） Display Power Cable
2 Blue（K） Controller Power Cable
3 Black（GND） Display Ground Cable
4 Green（RX） Display Data Receiving Wire
5 Yellow（TX） Display Data Sending Wire
Note: Some products may use waterproof connectors, in which case the internal
wire arrangements cannot be identified from outside.
5 Functions and Key Pad
5.1 Functions
There are multiple items displayed on S861 as follows:
 Battery Level
 Speed (average, maximum, current speed)
 Distance (single Trip, total ODO)
 PAS Level
 Error Indication
 Cruise
