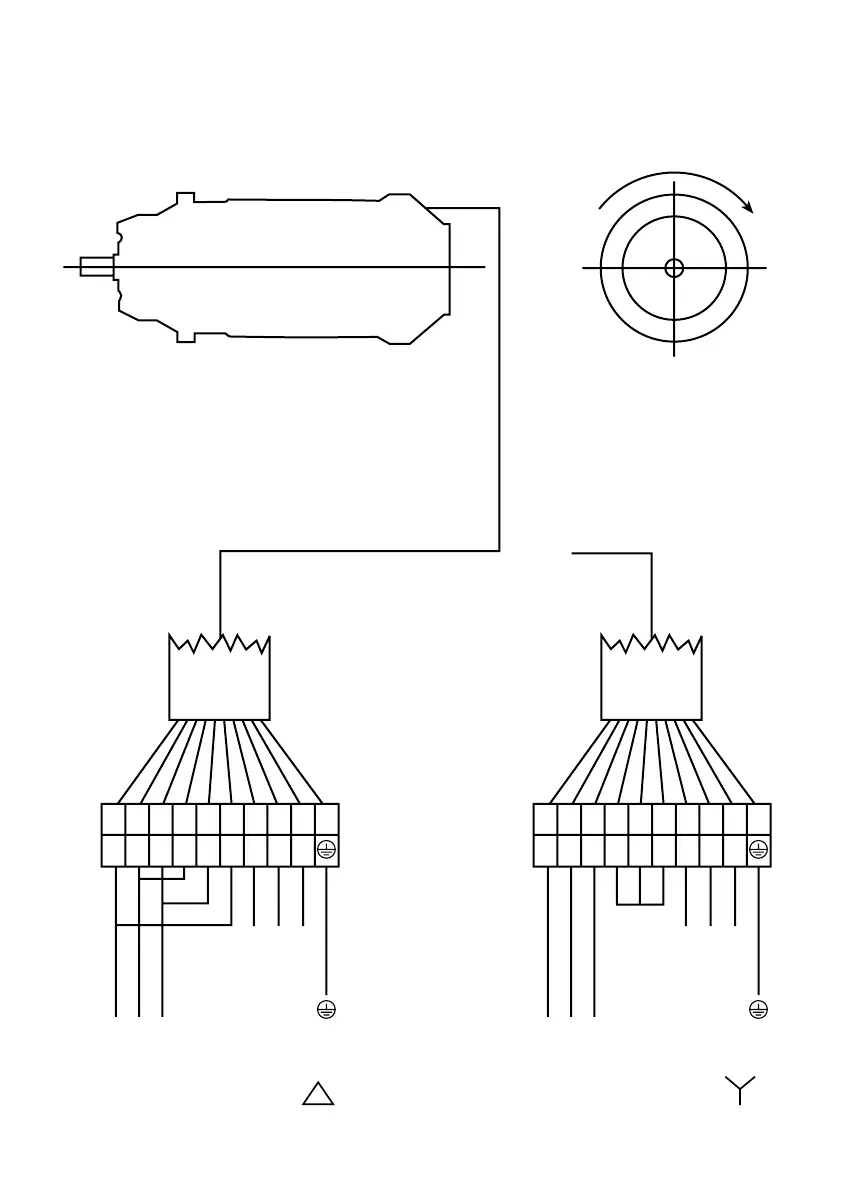

Electrical connections diagrams

for motor type SICXXX - Kw 4,0 ÷ Kw 11,0

123456789

GV

U1 V1 W1 U2 V2 W2 TTL

123456789

GV

U1 V1 W1 U2 V2 W2 TTL

Thermal switch

Oil sensor device

L1 L2 L3

DELTA CONNECTION

Thermal switch

Oil sensor device

L1 L2 L3

START CONNECTION

21
