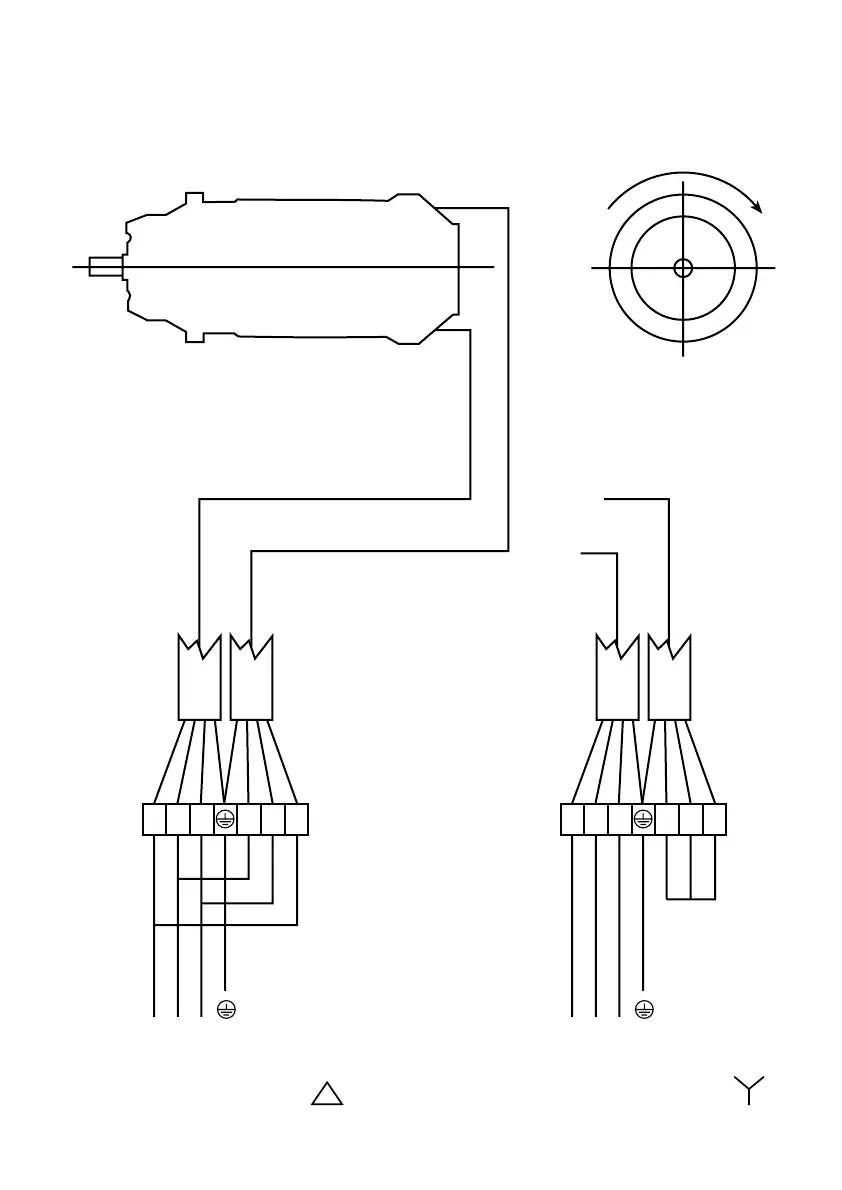

Electrical connections diagrams

for motor type SICXXX - Kw 15,0 ÷ Kw 55,0

DELTA CONNECTION START CONNECTION

L1 L2 L3

U1 V1 W1 U2 V2 W2

L1 L2 L3

U1 V1 W1 U2 V2 W2
