Scosche SLC-4 - Illustration A: Line Level Converter Setup; Connecting Speaker Wires from Head Unit

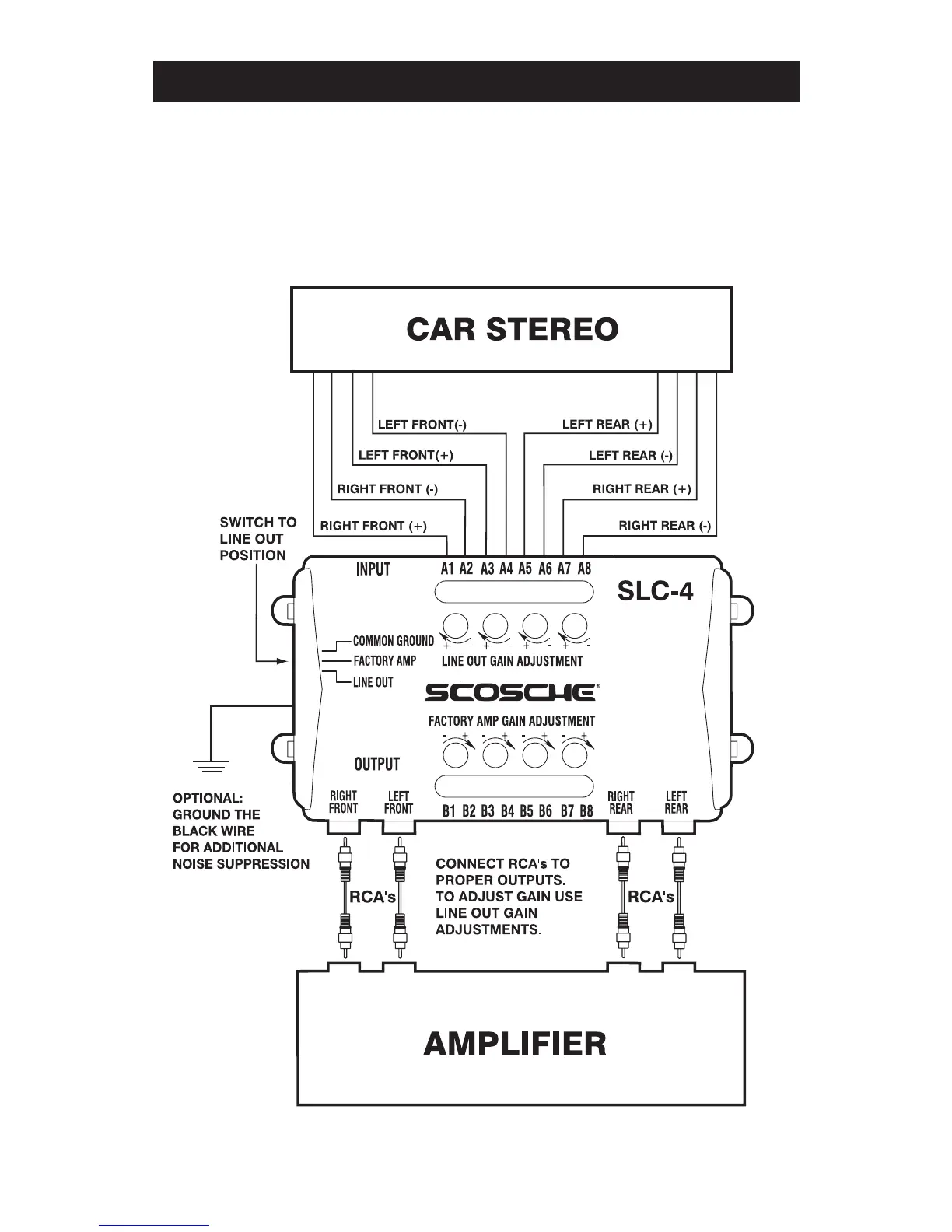

ILLUSTRATION A
HIgH TO LOW LEVEL CONVERTER
- AS A LINE LEVEL CONVERTER
CONNECT SPEAKER WIRES FROM HEAD UNIT TO SLC-4 AS SHOWN
IN DIAGRAM BELOW. BE SURE EACH WIRE IS SECURE. DO NOT
OVERTIGHTEN.
