Scosche SLC-4 - Illustration B: Subwoofer Signal Tap Method; Wiring for Subwoofer Integration

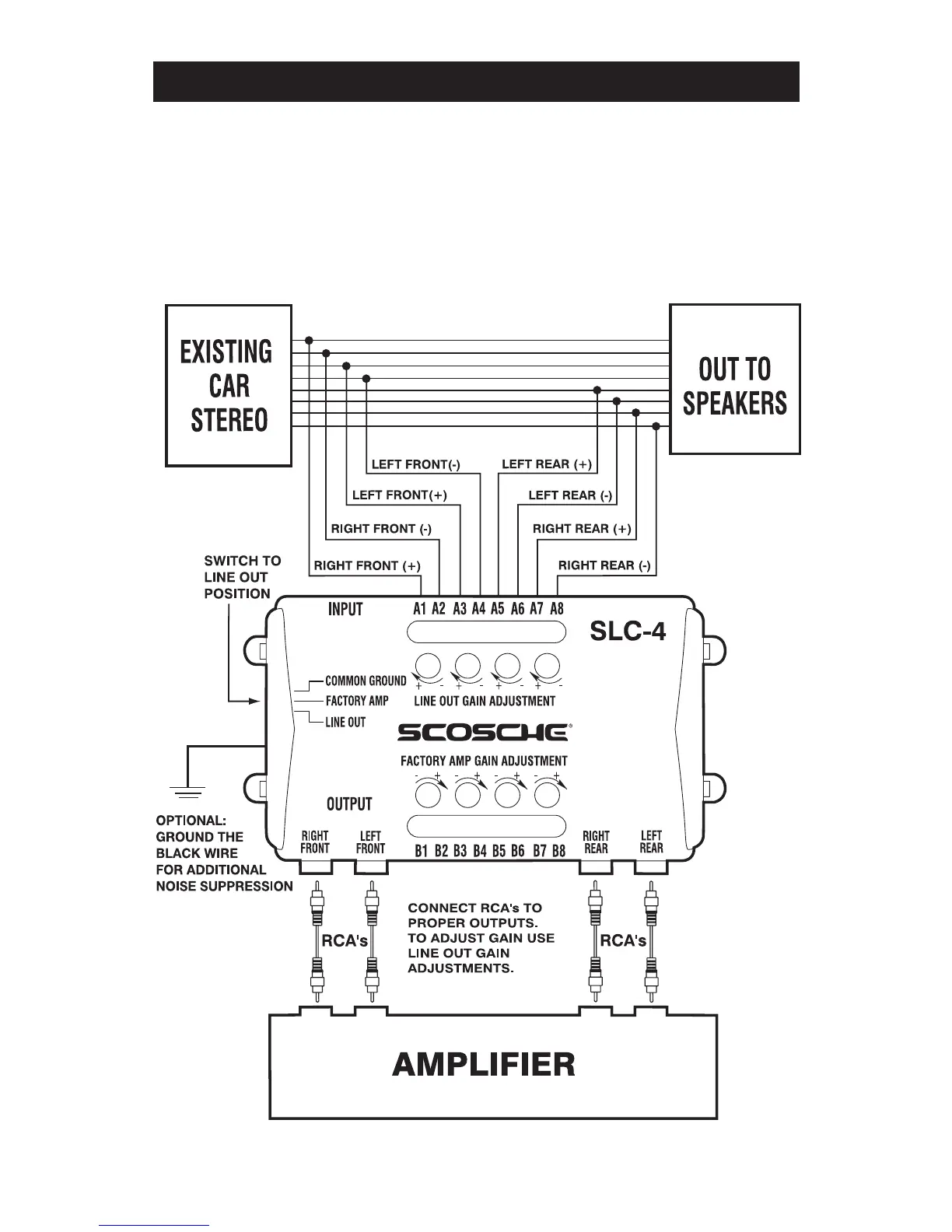

ILLUSTRATION B
HIgH TO LOW CONVERTER
- SIgNAL TAp mETHOd fOR AddINg SubWOOfERS
If you wish to add an amplifier to an existing system to power subwoofers
and not the entire system, tap on to speaker wires from existing unit.
DO NOT CUT EXISTING WIRES. BE SURE EACH WIRE IS SECURE.
DO NOT OVERTIGHTEN.
