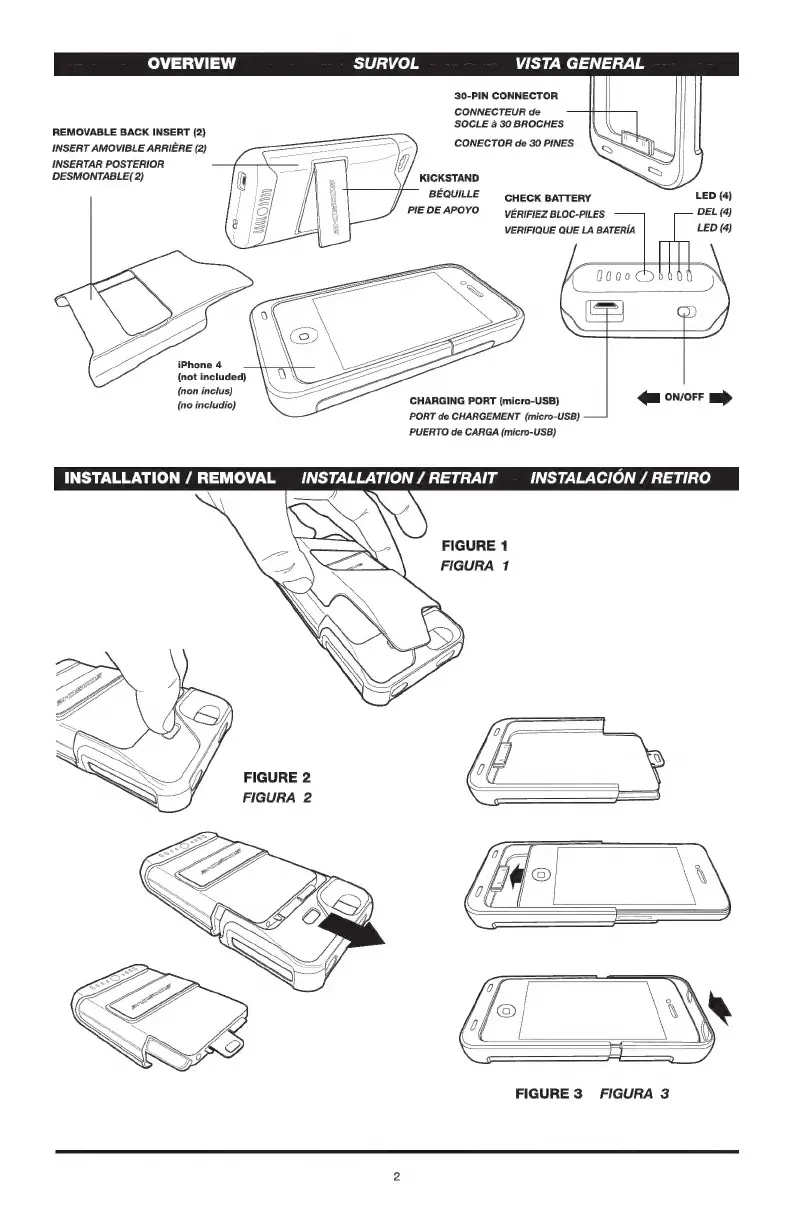

OVERVIEW SURVOL VISTA GENERAL
30-PIN CONNECTOR
CONNECTEUR de
SOCLE à 30 BROCHES
REMOVABLE BACK INSERT (2)
INSERT AMOVIBLE ARRIËRE (2) CONECTOR de 30 PINES
INSERTAR POSTERIOR
DESMONTABLE( 2) KICKSTAND
BÉQUILLE CHECK BATTERY LED (4)
PIE DE APOYO VERIFIEZ BLOC-PILES DEL (4)
VERIFIQUE QUE LA BATERÍA LED (4)
iPhone 4
{not included)
(non inclus)
(no includio)
CHARGING PORT (micro-USB) <s on/orr my
PORT de CHARGEMENT (micro-USB) — |
PUERTO de CARGA (micro-USB)
INSTALLATION / REMOVAL INSTALLATION / RETRAIT INSTALACIÓN / RETIRO
FIGURE 1
FIGURA 1
FIGURE 2
FIGURA 2
FIGURE 3 FIGURA 3
