Page 40
Page 40

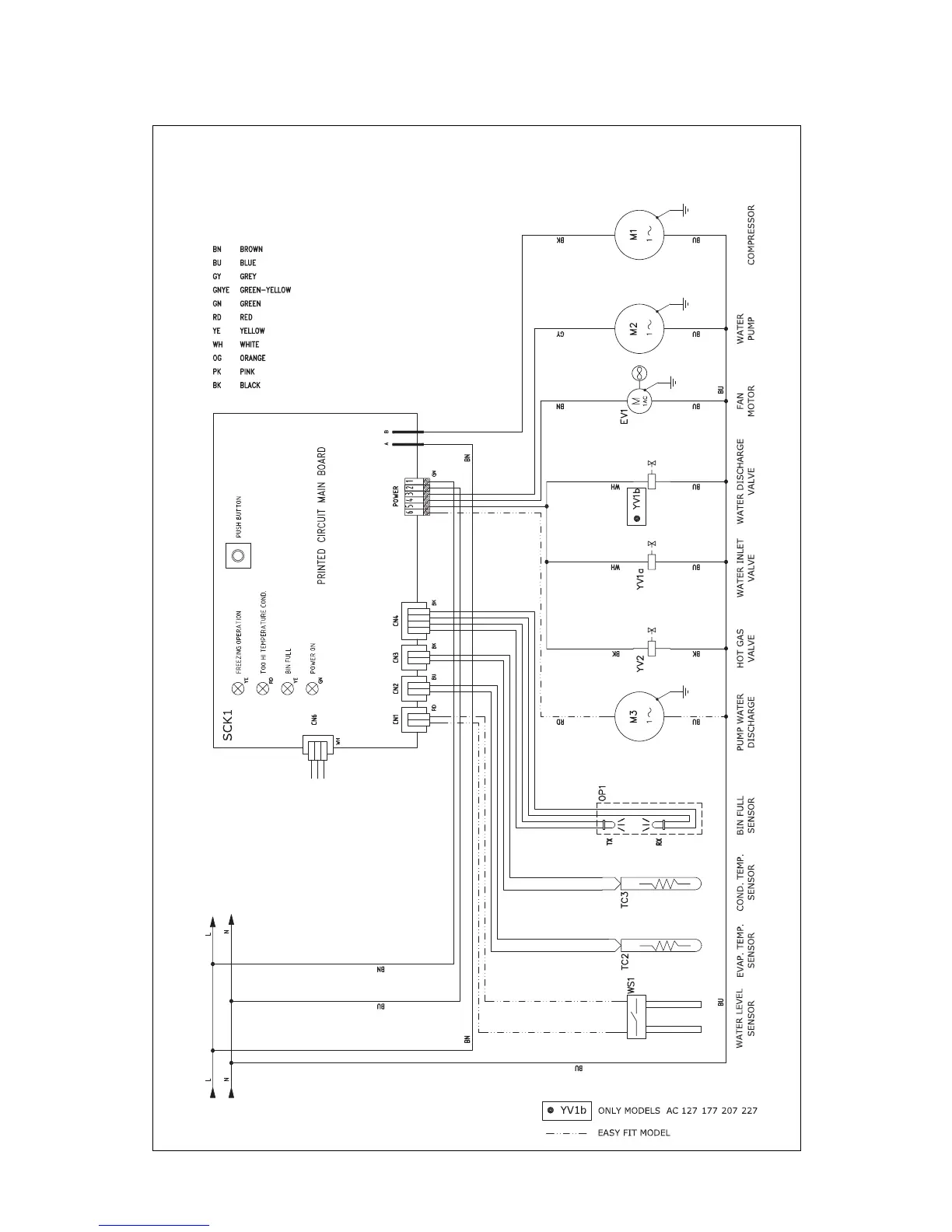

WIRING DIAGRAM
AC-EC 47-57-87-107-177 AIR AND WATER COOLED 230/50-60/1
The unit is shown on freezing cycle
