Scotsman CME250 - Component Location

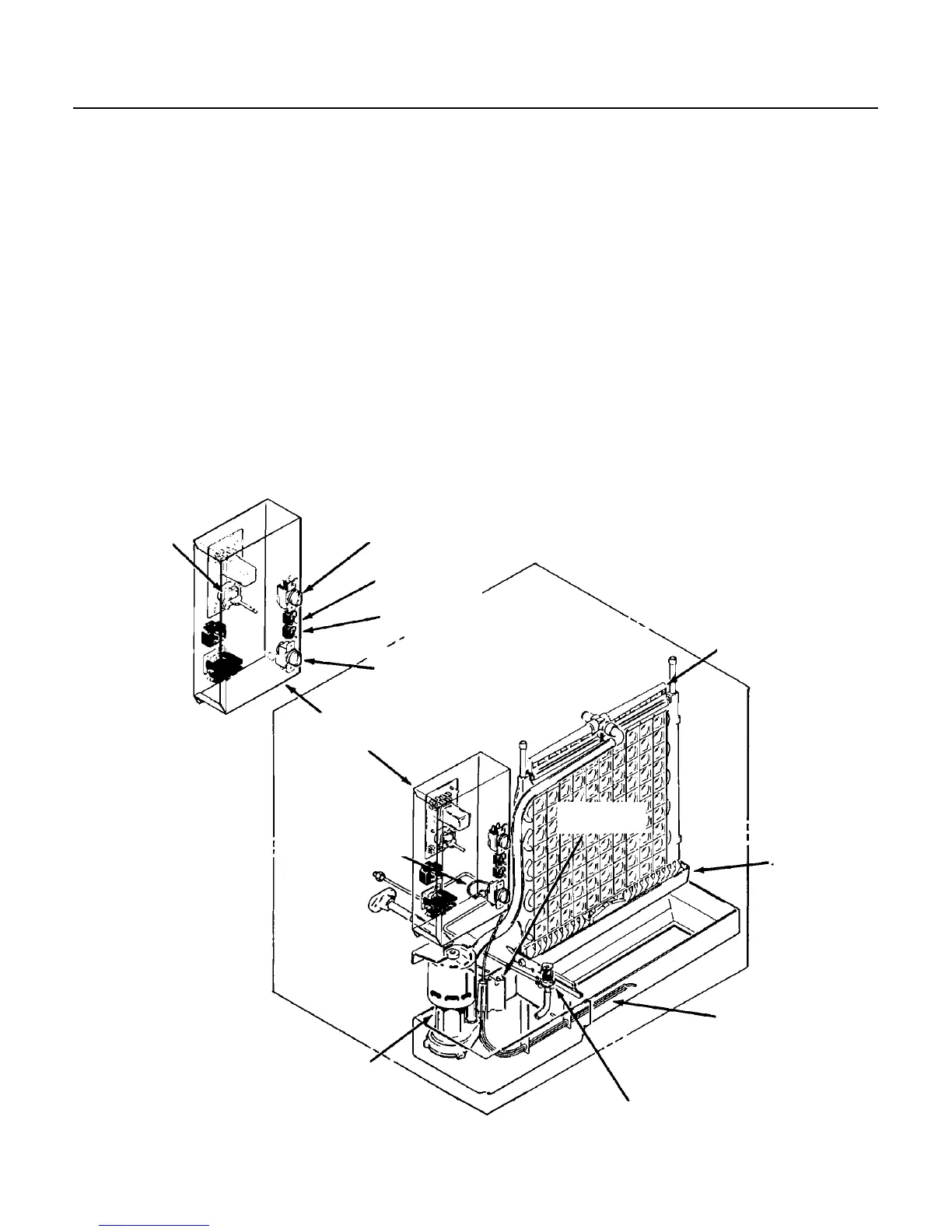

Component Location
The ice machine is designed for front service.
Many components are serviceable from the front
without removing the side panels.
Behind the front panel:
•• Water pump
•• Inlet water valve
•• Reservoir
•• Evaporators
•• Water distributor
•• Control box with cube size control adjustment
•• ON/OFF switch
•• Compressor switch
Inside the control box is control system for the ice
machine.
Timer
Cube Size Control
Master Switch
Compressor Switch
Bin Thermostat
Water
Distributors
Drain Trough
Bin Thermostat
Bracket
Water Inlet Valve
Water Pump
Bin Thermostat
Control Box
Component Location
Overflow
Standpipe
CME250
August 1994
Page 9
