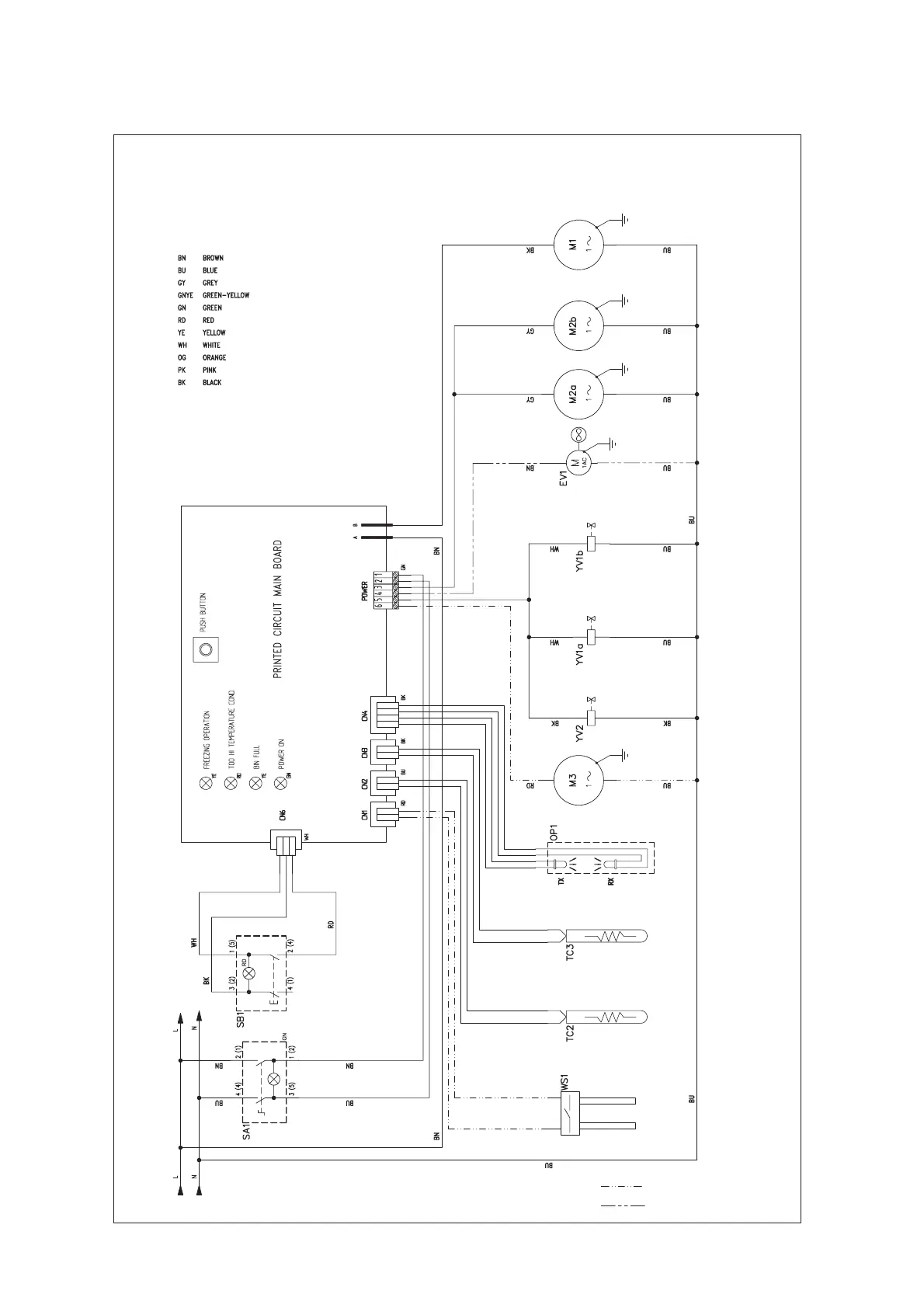

WIRING DIAGRAM
ECS 126 - 176 AIR AND WATER COOLED 230/50-60/1
The unit is shown on freezing cycle
SENSOR
COND. TEMP.
PUMP WATER
VALVE
HOT GAS
SENSOR
BIN FULL
SENSOR
EVAP. TEMP.
DISCHARGE
FAN WATER
COMPRESSOR
WATER INLET
POWER SWITCH
RESET
WATER LEVEL
SENSOR VALVE PUMPSMOTOR
VALVE
WATER DISCHARGE
SCK1
AIR COOLED MODEL
EASY FIT MODEL
