Scotsman Eclipse CME686 - Condensing Unit

Condensing Unit
Condensing Unit
– Modular system - connect
CP to ERC
– Assemble on roof or
ground
– ERC has back legs and
two braces
• Assemble legs and
braces to condenser
– Connect wires to junction
box

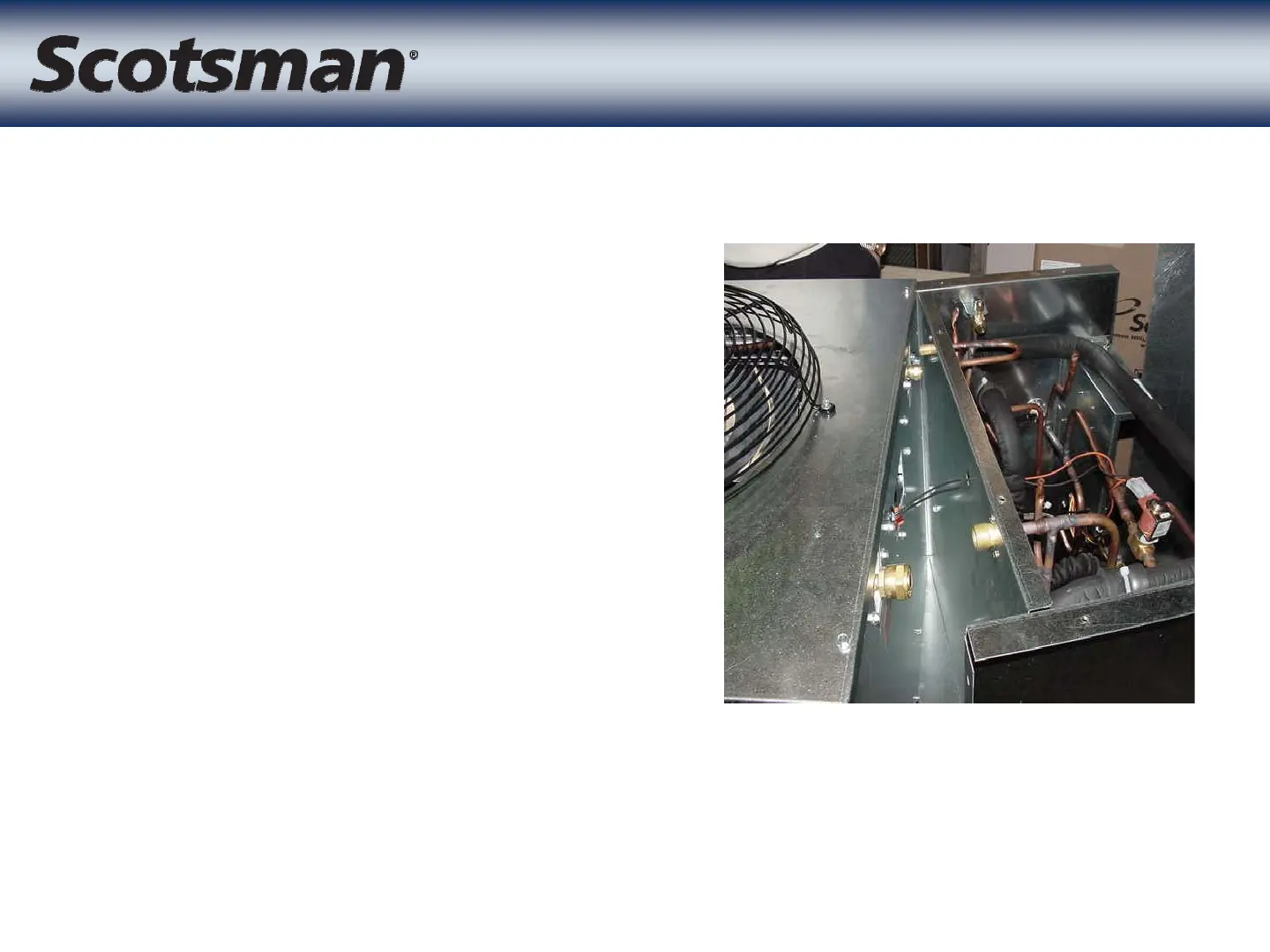

– Place ERC on back of CP -
lip on CP holds ERC up
