Scotsman MXG Series - Page 93

SWITCH 9
OPERATING TIME
OF WATER PUMP
DURING HARVEST
OFF = 15”
ON = 30”
SWITCH 7 AND 8
EXTENTION TIME OF
HARVEST CYCLE BY 0”, 30”,
60” OR WATER PUMP OFF
SWITCH 5 AND 6
LENGTH OF THE
HARVEST CYCLE
ACCORDING TO THE
TIME T
2
SWITCH 1, 2, 3 AND 4
SETTING OF THE
TIMED PORTION OF
FREEZING CYCLE
SWITCH 10
CONDENSER
SAFETY CUT OUT
TEMPERATURE
(60ºC WATER -
OFF AND 70ºC AIR
- ON)

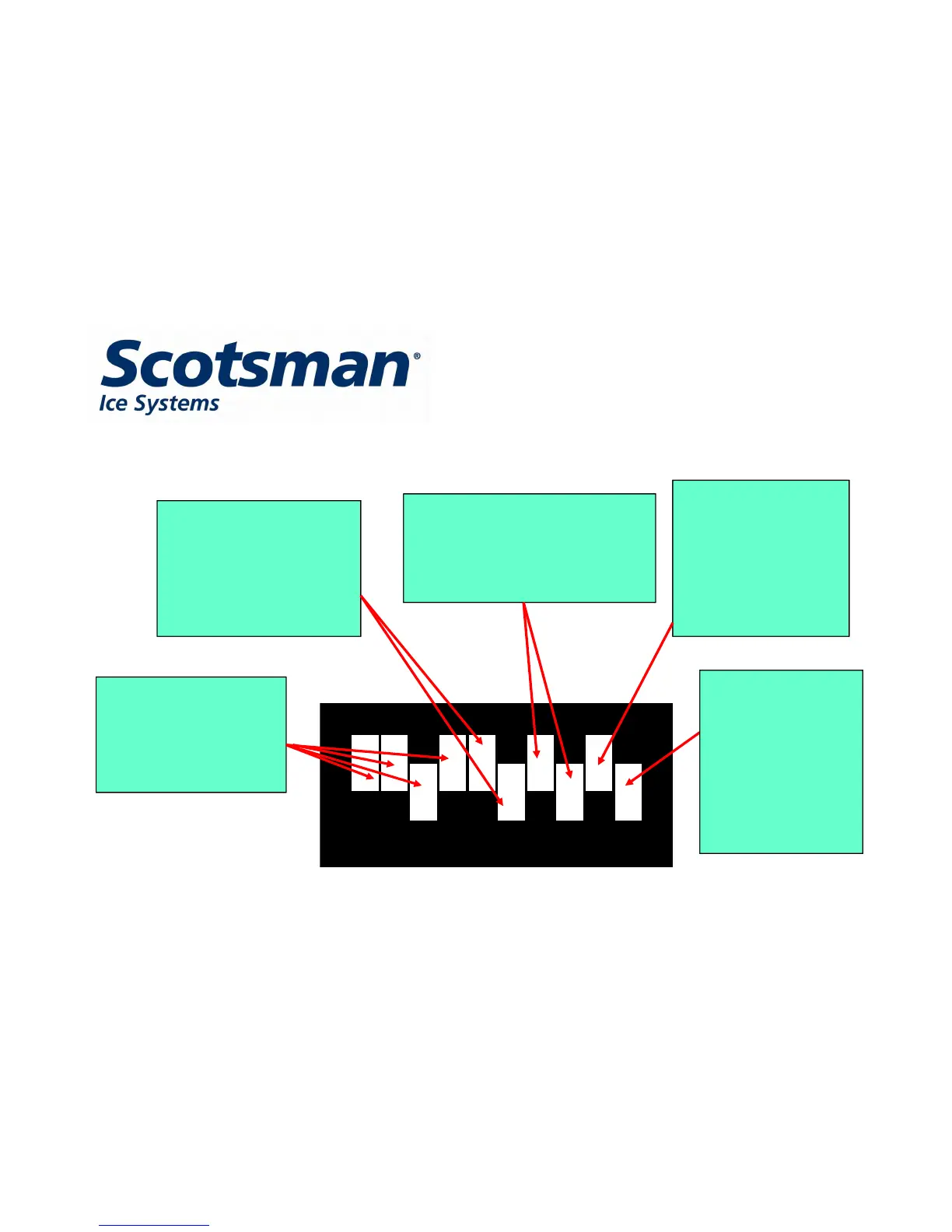

OPERATING PRINCIPLES – DIP SWITCHES
NEW MXG SERIES
