SCOTT 2005 User Manual

12

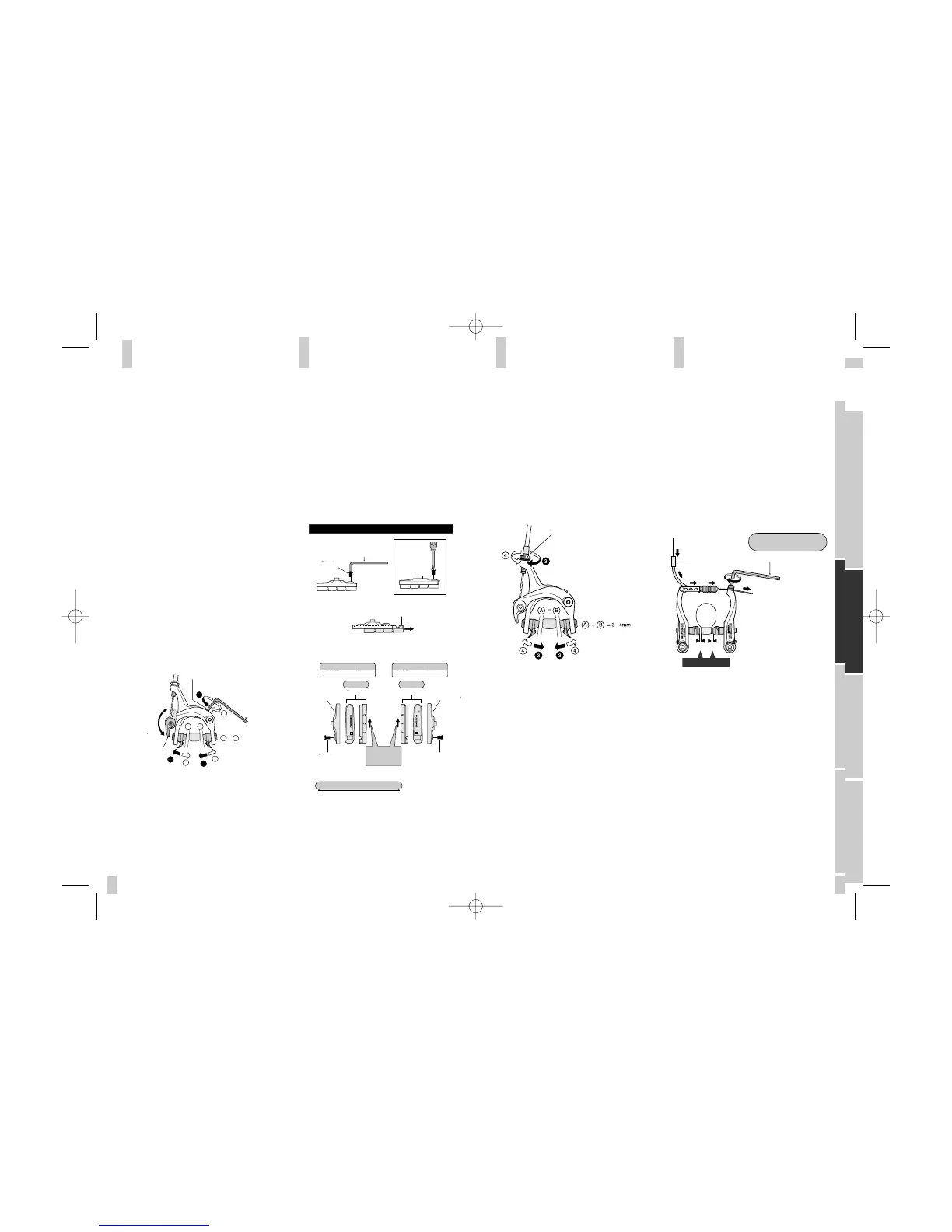

Brake adjustment general
Your Scott bike is fitted with a reliable and well-func-
tioning braking system, provided the brakes are correct-
ly adjusted. Check by measuring the distance between
the brake shoes and the rim: it should be 1.5 to 2 mm.
Cable connection and adjustment of the (Dual Pivot)
brake
1. et the quick lever to the closed position.
2. Adjust the brake shoe clearance (as shown in the
illustration) and secure the cable with the pinch bolt
nut.
Cable bolt tightening torque 6-8 Nm
1. Loosen up the security screw with a 2 mm allen key.
2. Push the used brake pad out of the aluminium brake
shoe.
3. Push the new brake pad into the brake shoe, and
beware of the arrow which shows the mounting direc-
tion.
4. Tighten up the security screw to approximately 1.5 Nm.
Make a minor adjustment by using the centring
adjustment screw.
Readjustment of the brake shoe clearance
Turn the cable-adjustment bolt to readjust the
brake shoe clearance.
V-Bremse
1. While holding the shoe against the rim, tighten the
shoe fixing nut.
2. Pass the inner cable through the inner cable lead,
and after setting so that the total of the clearances
between the left and right shoes and the rim is 2
mm tighten the cable fixing bolt.
BRAKES CHANGE OF BRAKE PADS CENTRING THE BRAKE SHOE V-BRAKES
ENGLISH
13
DEUTSCH
FRANÇAIS
OWNER MANUAL 2005
2
Zentrierschraube
3mm-Inbusschlüssel
A
B
+
= 3 - 4 mm
2
2
1
1
offen
geschlossen
Schnellspannhebel
Schieben Sie den Bremsschuh zum Abnehmen aus der Bremsschuhhalternut.
Auf der rechten und linken Seite werden verschiedene Bremsschuhe und
Bremsschuhhalter verwendet. Schieben Sie den neuen Bremsschuh in die
Bremsschuhhalternut und achten Sie darauf, daß die Einschubrichtung und die
Schraubenlöcher richtig übereinstimmen.
Die Schraube wieder festziehen.
Die Schraube lösen.
Bremsschuh-
einschub-
richtung
für linke Seite
für rechte Seite
gleich für vorne und hinten
gleich für vorne und hinten
vorne
vorne
Bremsschuh
Bremsschuh
Bremsschuhhalte
Bremsschuhhalter
Schraube
Schraube
2mm Inbusschlüssel
Schraube
Bremsschuh
Austauschen der Bremsschuheinheit
Anzugsdrehmoment: 1 - 1,5 Nm
centering adjustment bolt
3mm allen key
open
closed
quick release lever
Replacement of the cartridge shoe
remove the set-
screw
2mm allen key
remove the shoe by sliding it along the groove of the shoe holder
set screw
shoe
There are two different types of shoe and shoe holder to be used in the left and
right positions respectively. Slide the new shoes into the grooves on the shoe
holders while taking note of the correct directions and screw hole positions.
for the left
front
front
same at front and rear
shoe
shoe holder
shoe holder
set screw
set screw
tighten the set screw
shoe
same at front and rear
for the right
shoe
insertion
direction
tightening torque: 1-1,5 Nm (9-13 in. lbs.)
Anzugsdrehmoment:
6 — 8 Nm
BC
B
+
C
=
2 mm
centering adjustment bolt
inner cable lead
5mm allen key
tightening torque :
6-8 Nm (52-69 in. lbs.)
manual_general_e 23.06.2004 9:42 Uhr Seite 14
