1. Mount the front derailleur on the seat tube
(without chain) and turn it in a temporary position,
2. Check that the chain guide does not protrude
beyond the largest chain wheel by more than
2 mm. The chain guide must not touch the chain
wheels
3. The chain guide must run parallel to the chain
wheels. Check above,
4. Tighten the frame bolt and change to the smallest
gear (smallest chain wheel, larger rear sprocket).
In this position, the chain must almost run against
the chain guide inner blade,
5. Tighten the front derailleur control cable and
secure with the pinch bolt,
6. Change to the highest gear (largest chain wheel,
smallest sprocket). In this position the chain must
almost run against the chain guide outer plate of
the right pedal crank,
7. Adjust both highest positions of the front
derailleur with the adjusting screws,
8. Change the chain to the smallest and the largest
gear. In both gears, the front derailleur must
smoothly and immediately change the chain from
the smallest to the largest chain wheel and vice
versa.
Note: This procedure applies for both two and three-
ringed pedal cranks with round chain wheel.
Caution!
To avoid excessive wear and damage of the chain,
sprockets and chain wheels, we advise against the fol-

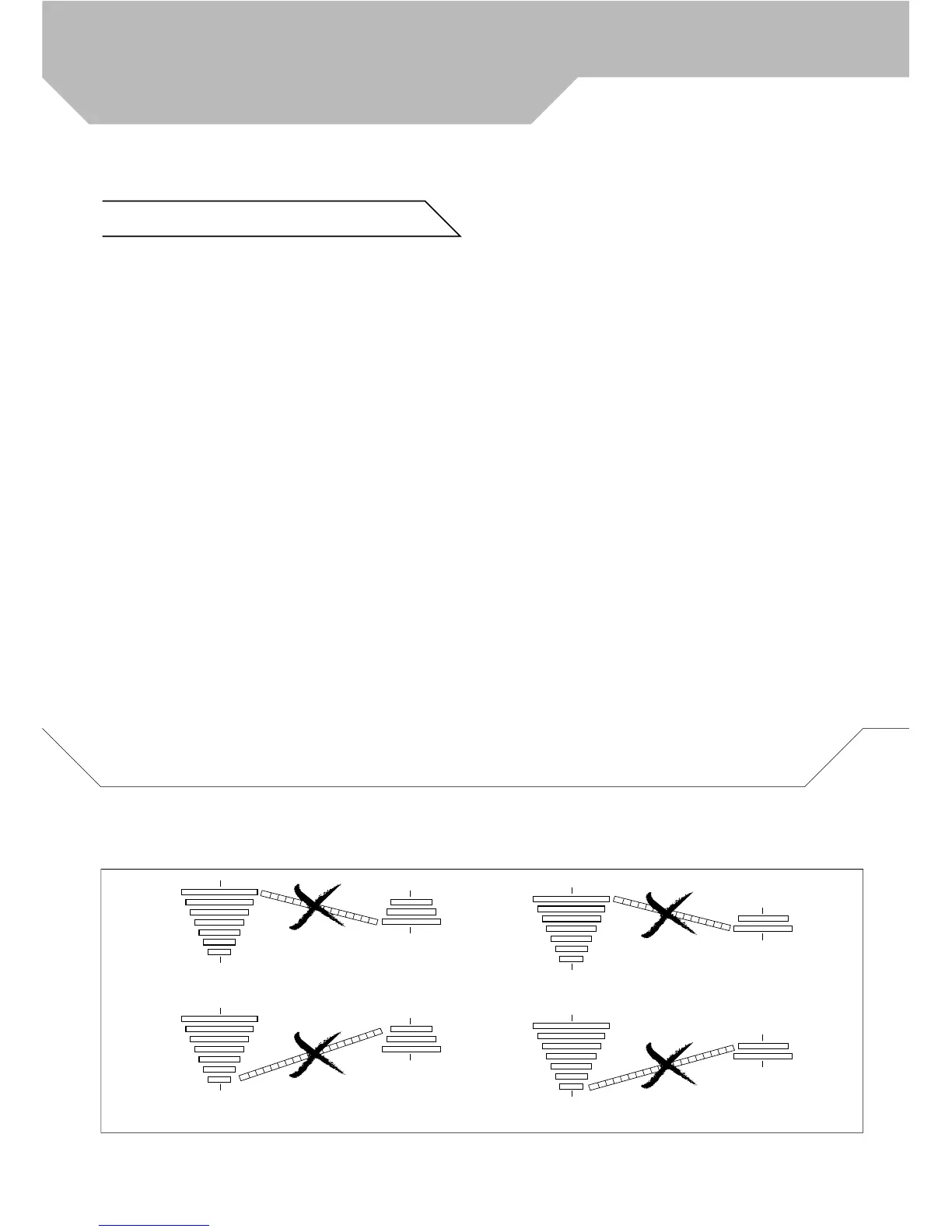

lowing combinations (see illustrations):
Largest chain wheel – largest sprocket
Smallest chain wheel – smallest sprocket
