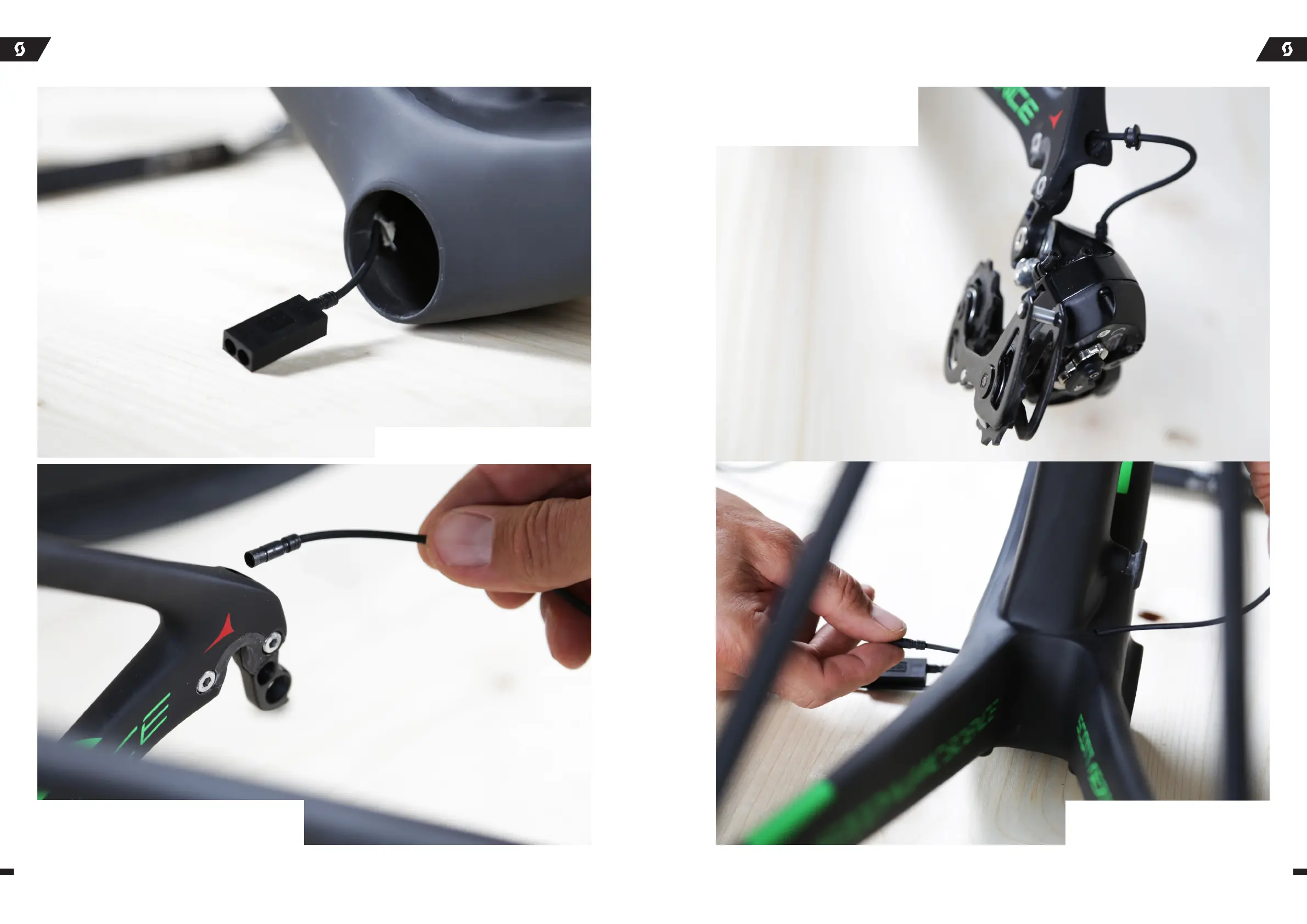

Remove the tape and install the internal junction
(SM-JC41/Junction B) to the Di2 wire.
Insert a 650mm Di2 wire into the opening of the dropout and
push it towards the bottom bracket opening. Plug the cable
into the internal junction box (Junction B).
FOIL BUILD UP MANUAL / SCOTT / FOIL / 2016
Mount the rear derailleur, install a rubber seal
on the Di2 wire and connect the latter to the
rear derailleur using the recommended tool
from Shimano.
Insert a 250mm Di2 wire into the hole below
the front derailleur mount and connect it with
the internal junction box (Junction B).
