2524

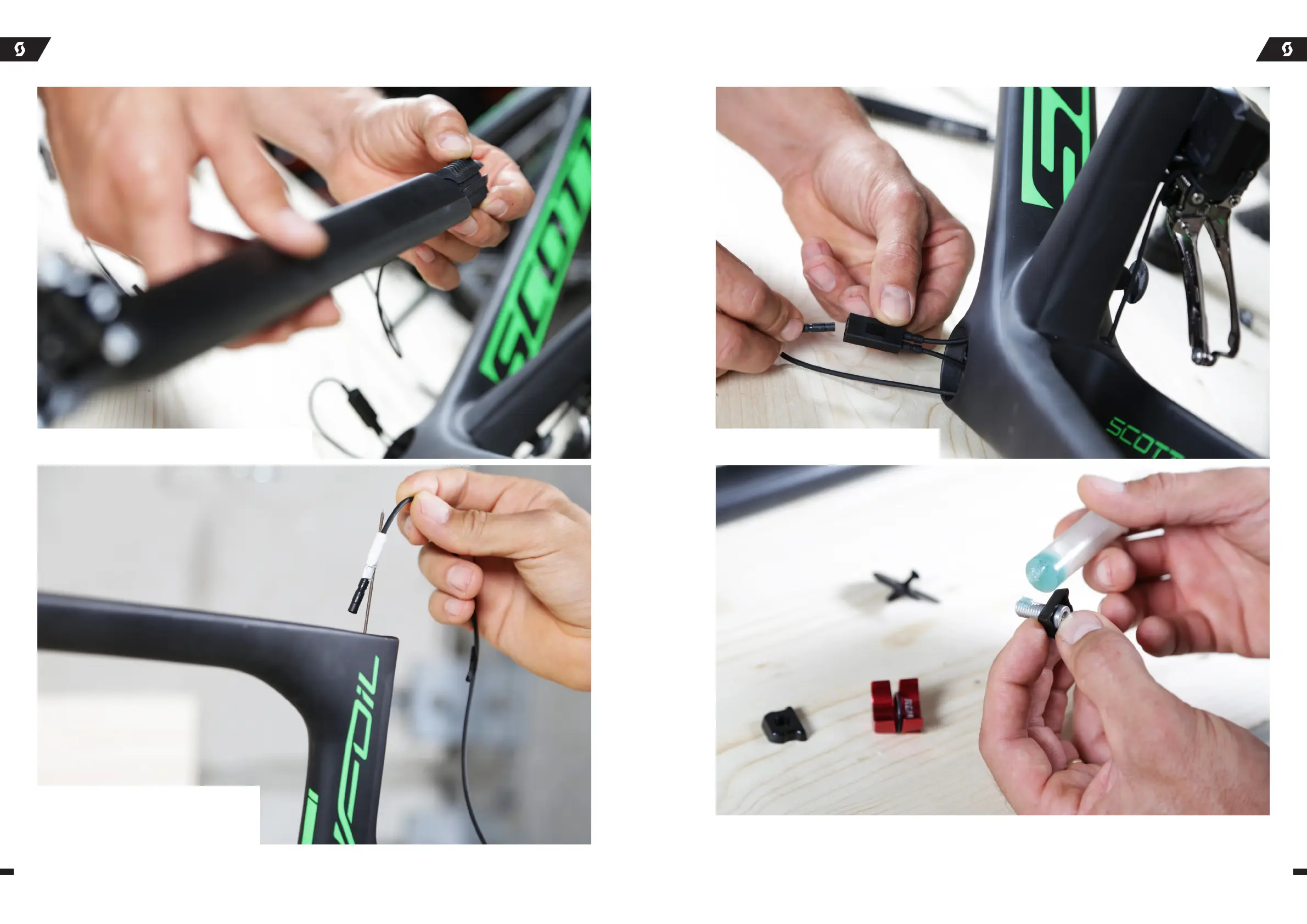

Align the rubber pieces correctly and push the battery into the
seatpost with the wire facing down.
Push a brake cable from the bottom bracket
through the seattube. Fix a 550mm Di2 wire with a
tape on the brake cable and pull it down the seat-
tube and out of the bottom bracket box.
FOIL BUILD UP MANUAL / SCOTT / FOIL / 2016
Connect the Di2 wire with the internal junction box
(Junction B).
To install the internal seatpost clamp, start by putting grease on the tightening bolt. Make sure no grease reaches the concave
contact area of the post.
