4 5
FRONT BRAKE
REAR BRAKE
FD
FD
500-650
1200
650
250
mm
A
B
C
D
mm
mm
mm
A B C D
ELECTRONIC SHIFTING CONFIGUARTION :
SM-EW90-A
CPU
JUNCTION
SM-JC41
BATTERY SM-BTR2
FRONT BRAKE
FD
RD
REAR BRAKE
35
mm
35
mm
1200
mm

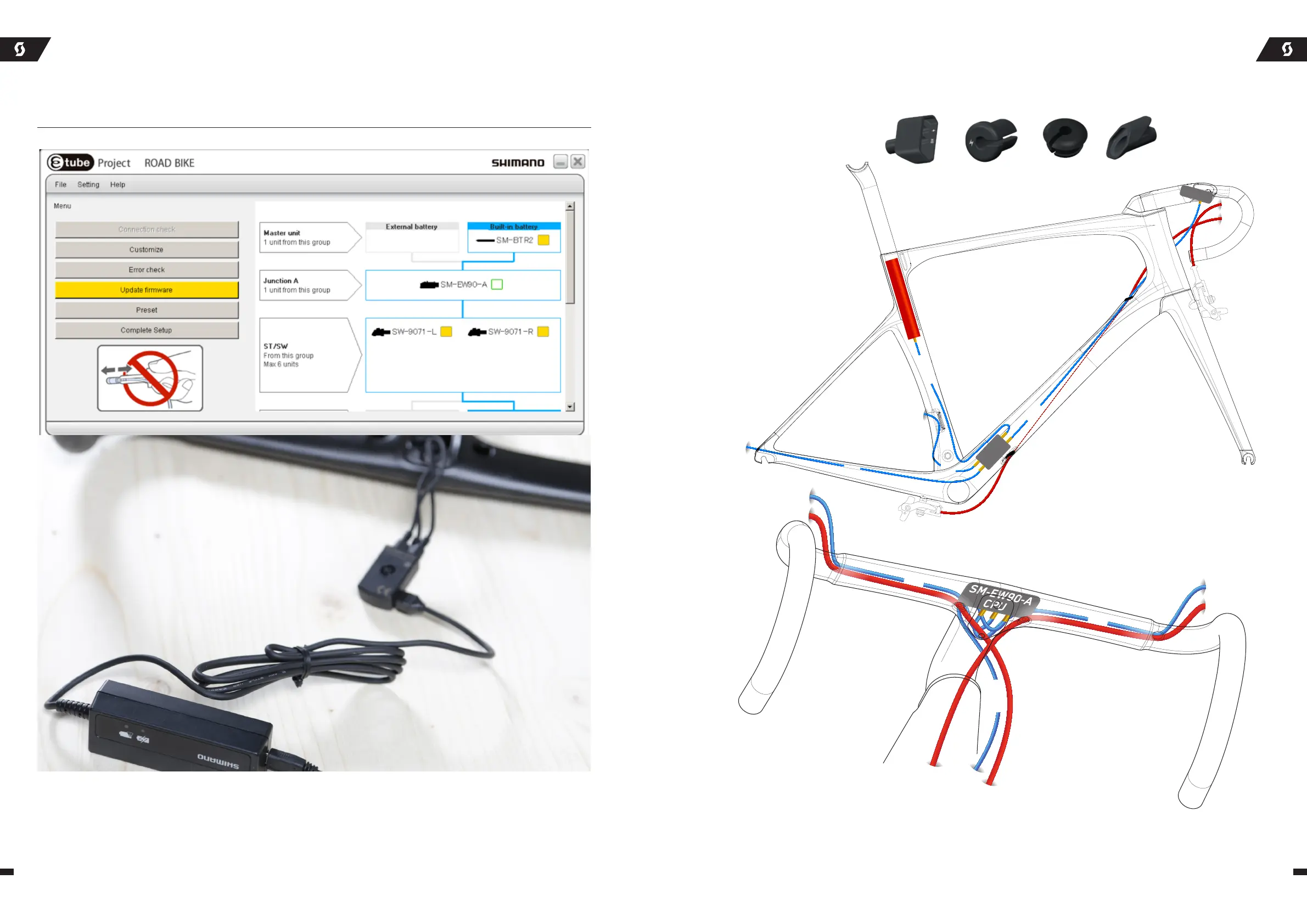

Before you start assembling the bike, we recommend doing an inventory check of all parts (components, cables, wires, junctions,
etc.), as well as a brief function test of the electronic Shimano Di2 groupset. To do so, connect all Shimano parts and connect via
SM-PCE1 or SM-BCR2 to a laptop. Update all components with the e-tube software.
Finally, check whether the drivetrain functions properly.
GETTING STARTED
Wiring diagram: before you start building the Foil, check out the wiring diagram in order to use the right parts in the right places.
Follow Shimano’s instructions regarding the installation of Di2 parts.
