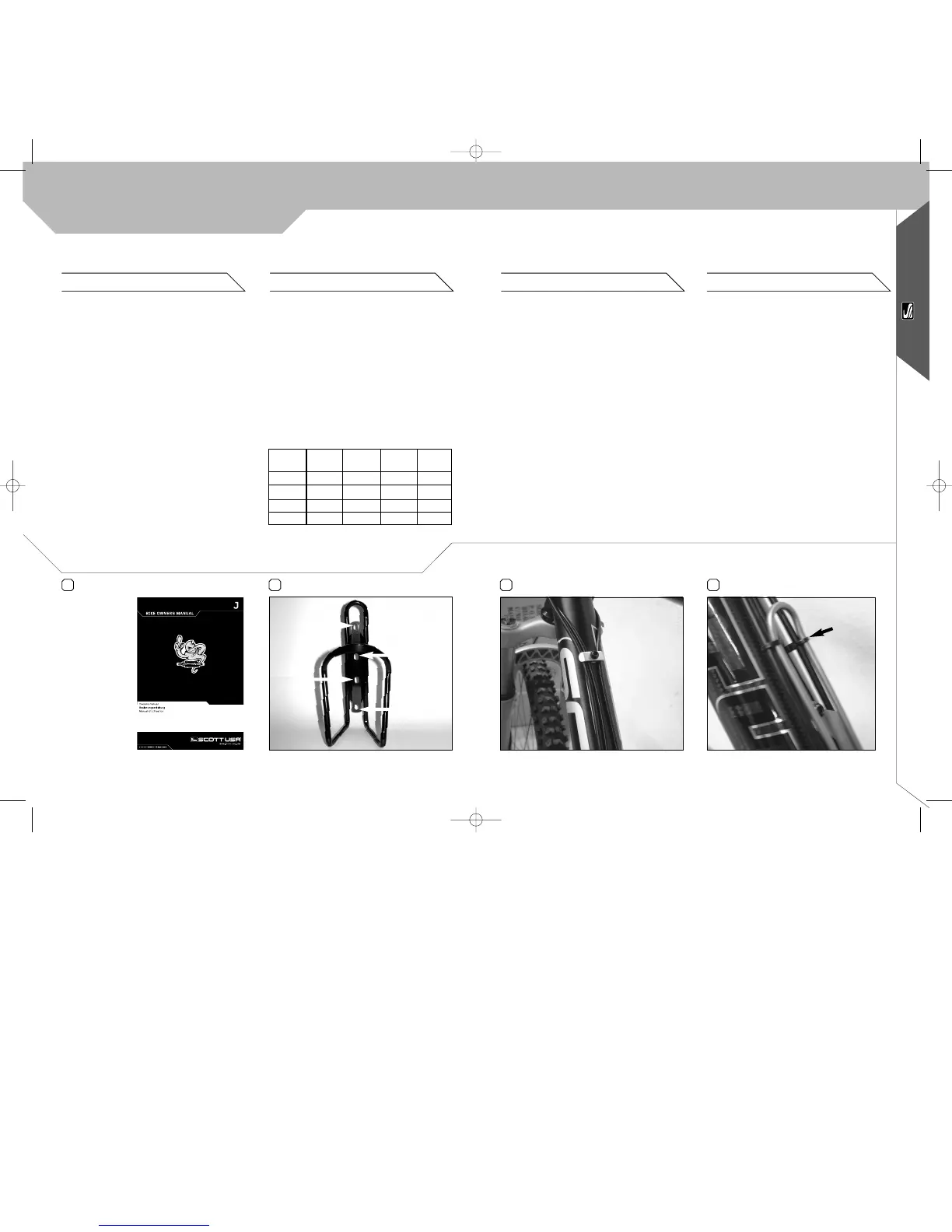

To enable you to participate in long distance races with
the Genius MC, Scott offers a special designed bottle
cage with which you can take 2 bottles of 0.7l with you
beginning from frame size Medium.
In addition this bottle cage can also be used instead of
a standard one on the downtube and makes it easier to
carry your bike on the shoulder in those parts of a long
distance race which can be only passed by walking.
This bottle cage can be ordered with parts number
15.1.804.401.0.000 at your local Scott dealer. [3]
OWNERS MANUAL
The Set-Up of the Genius Shock is shown in the
manual “Scott Genius Shock 03” attached to this bike
and can be done within a few minutes.
In case you want even more detailed figures of air
pressure or tuning hints, you can download a program
under www.scottusa.com as a pdf file. [2]
Set-Up Genius MC Bottle-Cages Scott Smart Cable Routing Mechanics hint
The outer housing of the cables can also be fixed on
the bottle cage with cable fixers, the two brackets
below the cage are not needed anymore. [5]
The direct and straight cable system on all our full
suspension models allows Smart Cable Routing which
is very resistant against water and dirt.
To change the cables simply unscrew and open the
three cable brackets on the downtube.
On the left side of the downtube you will find the cable
housings of the rear brake and the TC-system, on the
right side for the rear derailleur. [4]
OWNERS MANUAL
04-05
Smart Cable Routing Mechanics hint
2
4 5
151.804.401.000
Genius Schock Manual
3
35 mm
offset
standard
Downtube
0.5 l
STD
STD
STD
STD
Downtube
0.7 l
OCB
STD/OCB
STD/OCB
STD/OCB
Seattube
0.5 l
-
STD
STD
STD
Seattube
0.5 l
-
OCB
OCB
OCB
genius MC
Small
Medium
Large
X-Large
STD: Standard MTB Bottle Cage;
Scott Article 15.1.806.202.0.000.
OCB: Off-Center MTB Bottle Cage;
Scott Article 15.1.806.401.0.000.
