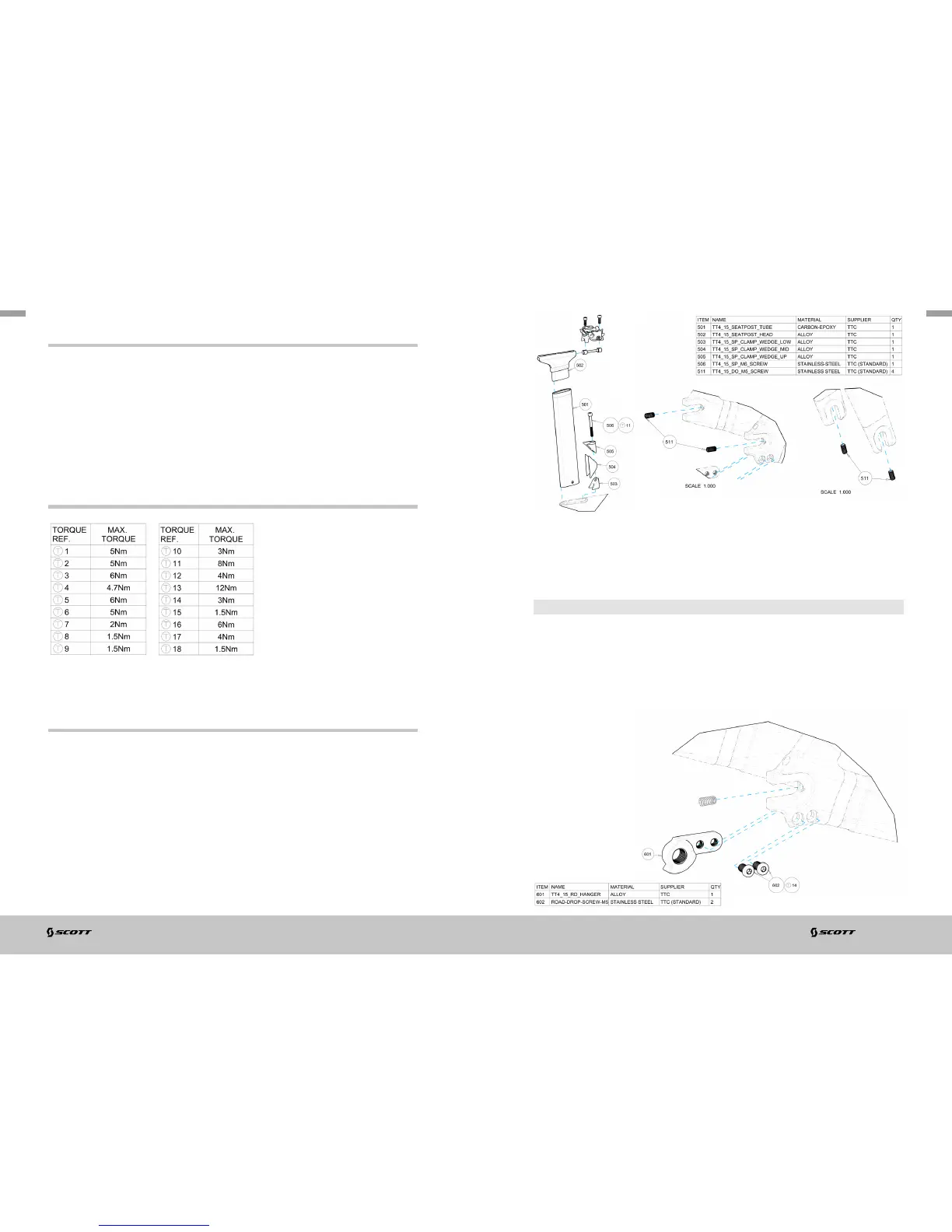

PLASMA 5 FRAMESET CONTENT
1. Frame
2. Fork
3. Headset
4. Seatpost
5. Stem/Handlebar
Rear derailleur hanger:
place the rear derailleur hanger in the cavity and tighten the 2x M6 screws to their
specified torques.
IMPORTANT
Rear derailleur hanger (601 + 2*602): 239178 is compatible with Plasma 4 and
Plasma 5
Drop out adjustment screws: Standard M5*10mm headless screw available in any
hardware shop.
6. Front Brake
7. Brake Covers
8. Storage Box
9. Hydration System
REAR DROP OUT AND REPLACEABLE DERAILLEUR
HANGER
Setup screw:
Dropout length can be set to adjust the rear wheel tire clearance with the frame
(100) thanks to the rear dropout screws (511). The chainstays length can be set from
403mm to 413mm.
- Loosen the screw to set a longer chainstays length,
- Tighten the screw to set a shorter chainstays length.
Make sure right and left side are set at the same length by assembling the rear wheel
and verifying it is centred with the chainstays.
SPECIFIC TORQUES VALUES TABLE

SCOTT PLASMA 5 Specifications

General

Headset	Syncros Integrated
Fork	Plasma 5 / 1" - 1 1/8" Carbon / integrated
Shifters	Shimano Dura-Ace Di2 R9150
Brakes	Shimano Dura-Ace R9110
Crankset	Shimano Dura Ace FC-R9100 / 53x39 T
Bottom Bracket	Shimano Pressfit
Cassette	Shimano Dura-Ace R9100 11-28T
Chain	Shimano Dura-Ace HG901
Seatpost	Plasma 5 specific / 0mm offset / -5mm offset
Tires	Schwalbe Pro One 25mm
