INSTALLING MOWER

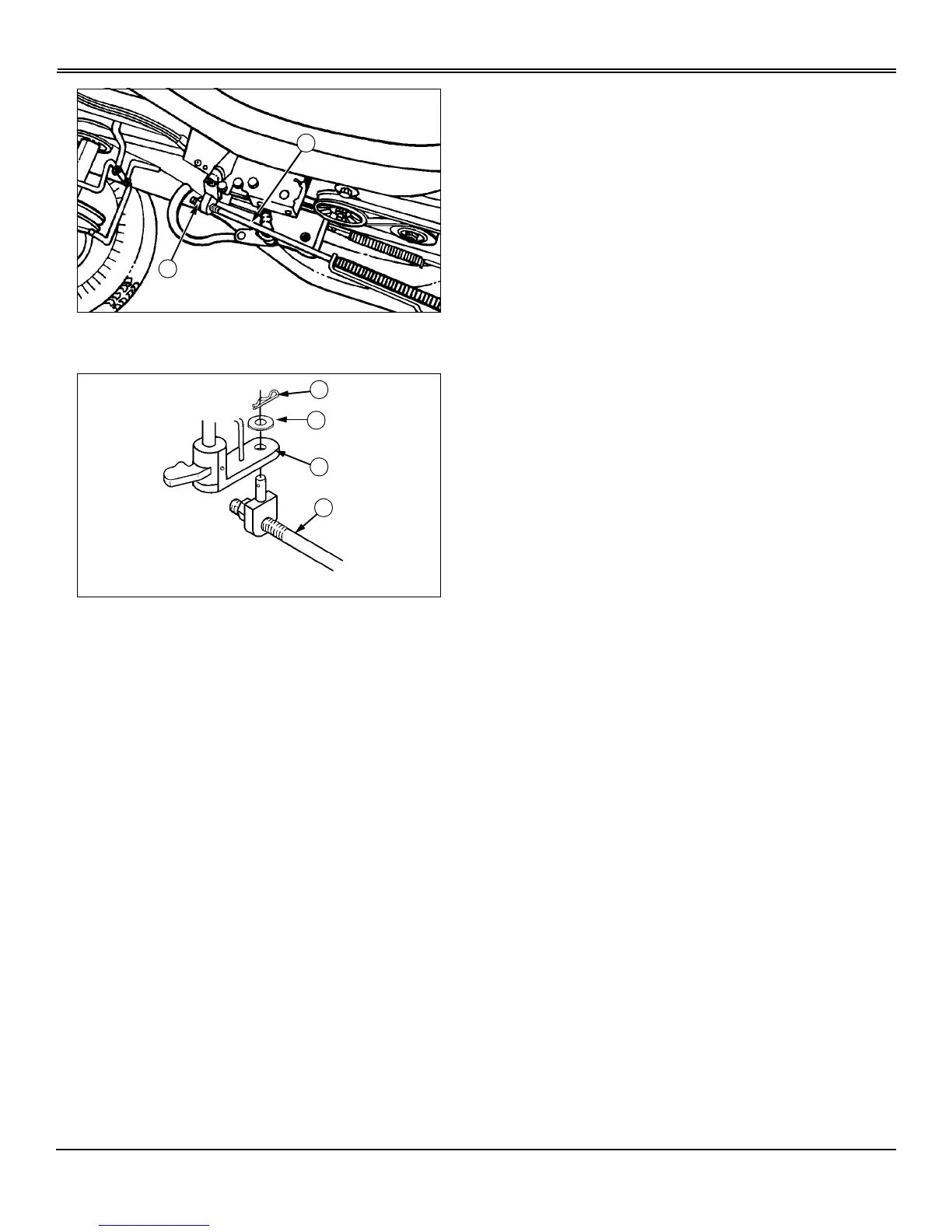

12.Raise tension rod (N) and attach to blade drive arm (O)
using flat washer (P) and spring locking pin (Q).
13.Raise deck by pressing the lift lever lock and pulling the
mower deck lift lever to its highest point.
14.Remove wood blocks from under deck.
15.Check for proper routing and position of all belts.
16.Level mower. (See Adjusting Mower Level (Side-to-Side
and Front-to-Rear) in the Operating Mower section.)
17.Adjust gage wheels. (See Adjusting Mower Gage
Wheels in the Operating Mower section.)
N
O
Q
P
O
N
