Center Box
Base Top View
Bottom View

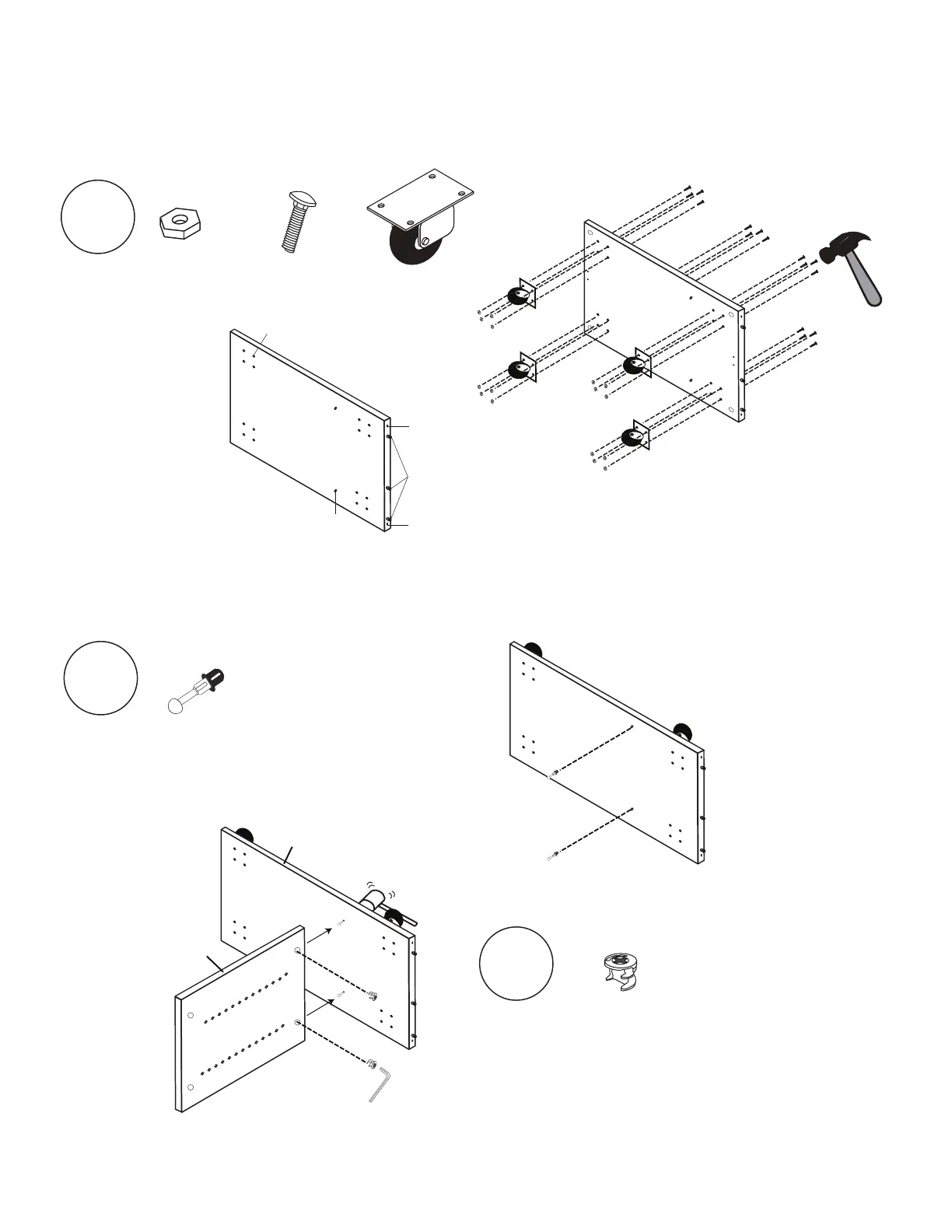

CENTER BOX Build on a blanket for best results
Green dowel
Post hole
Pre-drilled
wheel screw
holes
Post
hole
Post hole
x4
Wheels
x16
Nuts
x16
Bolts
Hammer (16) bolts into top of base.
Install (4) wheels onto bolts.
Tighten with (16) nuts using a
wrench or socket wrench.
Do NOT overtighten screws
(wheels should spin freely)
Fit Divider 1 onto posts with finished
edges facing up. Tap with Mallet to secure.
Insert (2) Cams at bottom of Divider 1 and
tighten with Allen Wrench until secure.
First, assemble the lower section of the Center Box.
2
Insert (2) Posts into post holes on
top side of Center Box Base.
Center Box
Base
Center Box
Base
Top Side
Center Box
Base
x2
Posts
Center Box
Divider 1
Locking
Cams
x2
Finished Edge
Finished Edge
