Clip acrylic guards into acrylic
guard holes.
OPTIONAL: (2) Metal Rods and (4) Plastic Cups
may be used instead of acrylic guards.
CENTER BOX
RIGHT BOX
LEFT BOX
CLEAR TOTES & SHELVING
LEFT SWING DOOR
IMPORTANT:
Installation Instructions:
First, add one shelf horizontally in the middle of
each Center Box, Left Box and Right Box. This
helps secure divider panels. Proceed to add
shelving in each vertical space.
Use (6) 12mm screws
to attach (3) metal
Drawer Pulls onto
(3) Center Box
Drawers.

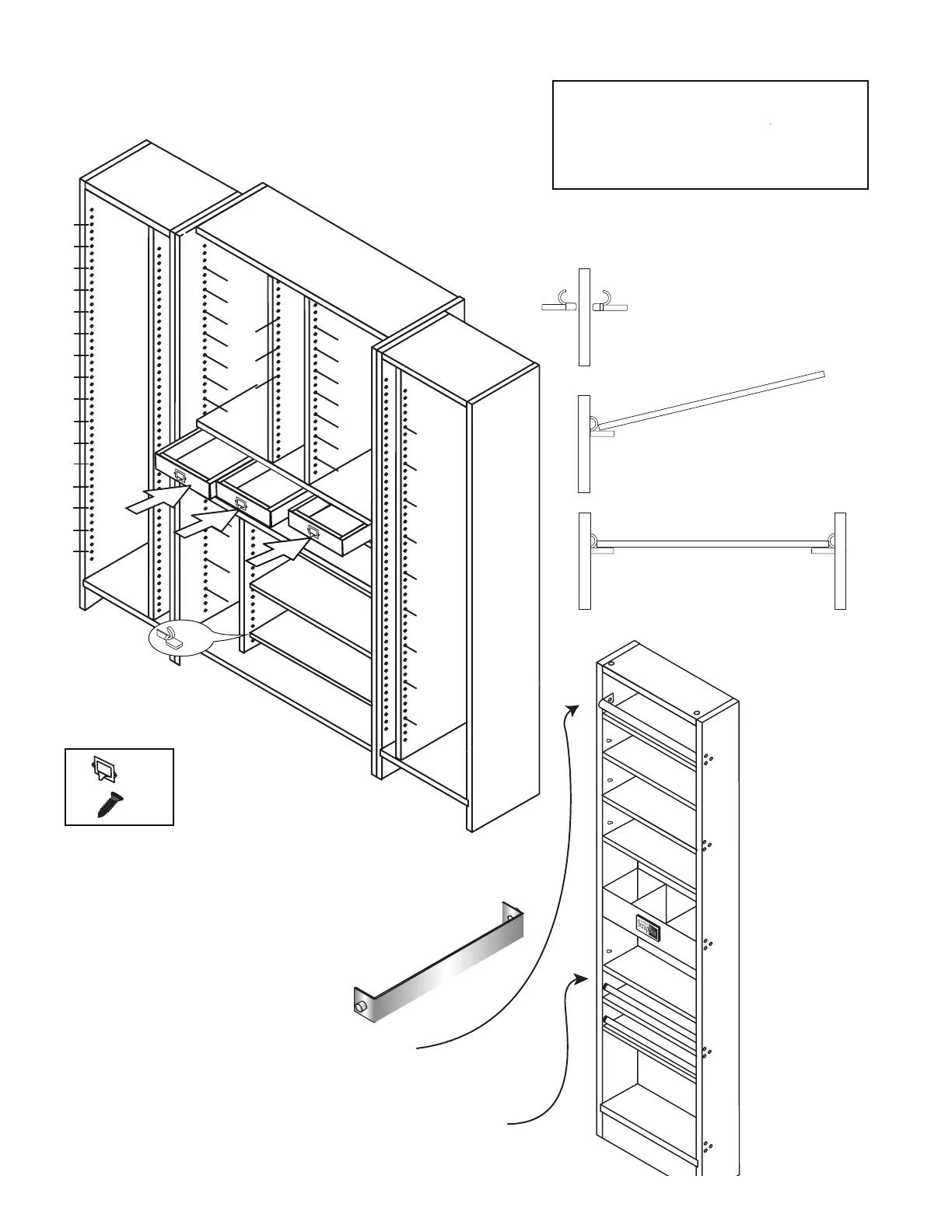

See drawing for suggested shelf arrangement.
12 mm
x3
x6
5
8
11
14
17
20
23
26
29
32
35
38
41
44
47
Shelf
Pegs
Acrylic Guards
x7
Divider
Tap pegs gently with mallet to ensure
they are fully installed. Shelf pegs will
lock into each other when sharing the
same peg hole on opposite sides of
divider.
Secure one side of shelf into pegs on one
side of space.
Snap other side of shelf into
remaining pegs on other
side of space as shown.
