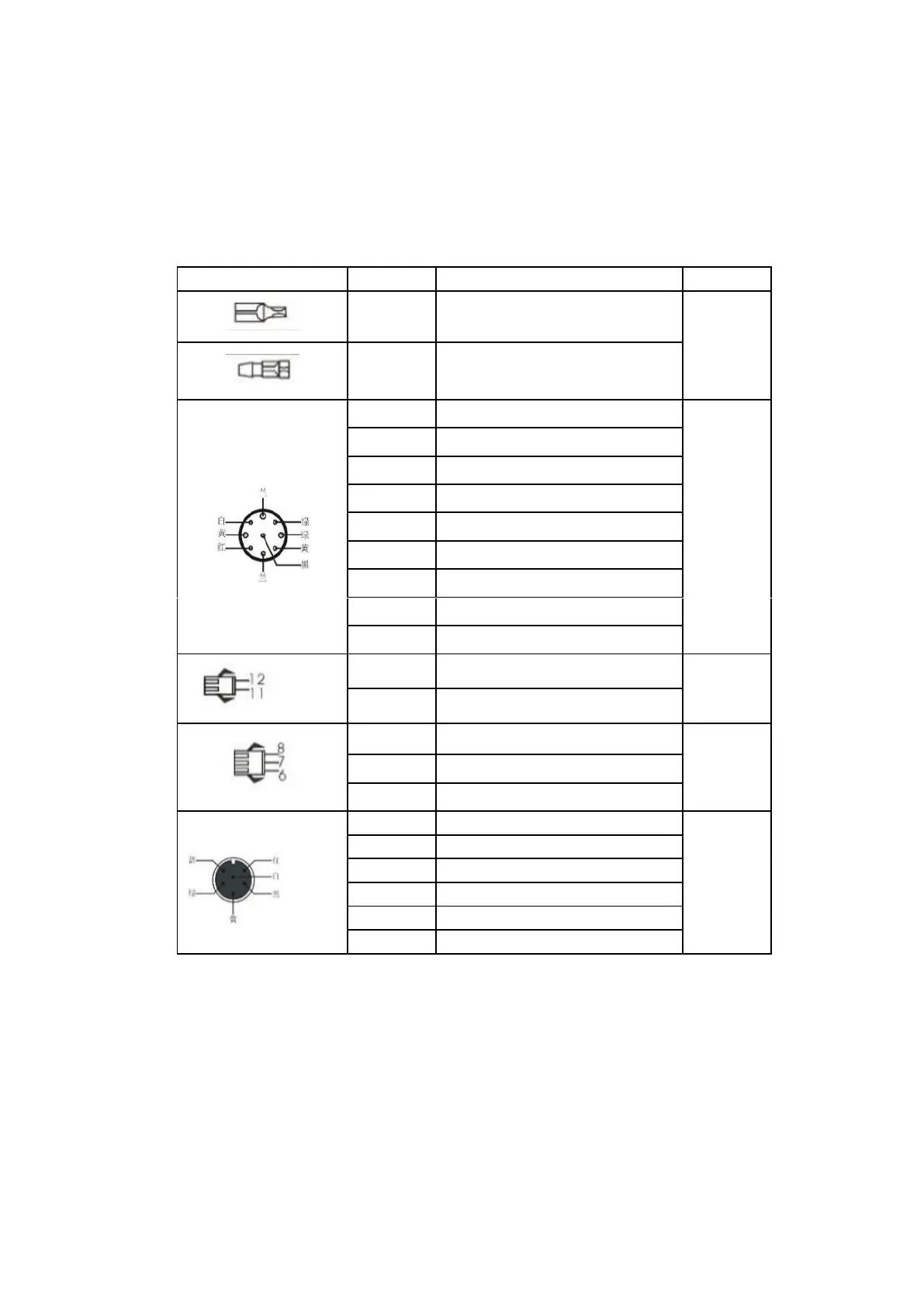

11. Diagram and specification
We reserve the right, without further notice, makes modifications to the product. For further advice,
please contact your vendor.
Colour
Function
black
Power +
Battery
red
Power -
red
Motor
black
green
hall b
blue
hall a
yellow
hall c
white
speed
blue
motor A
green
motor B
yellow
motor C
black
gnd
Light
red
light 6V
blue
PAS
Sensor
black
gnd
red
5V
white
brake
Display
yellow
RX1
green
TX1
black
gnd
blue
KEY
red
36v
