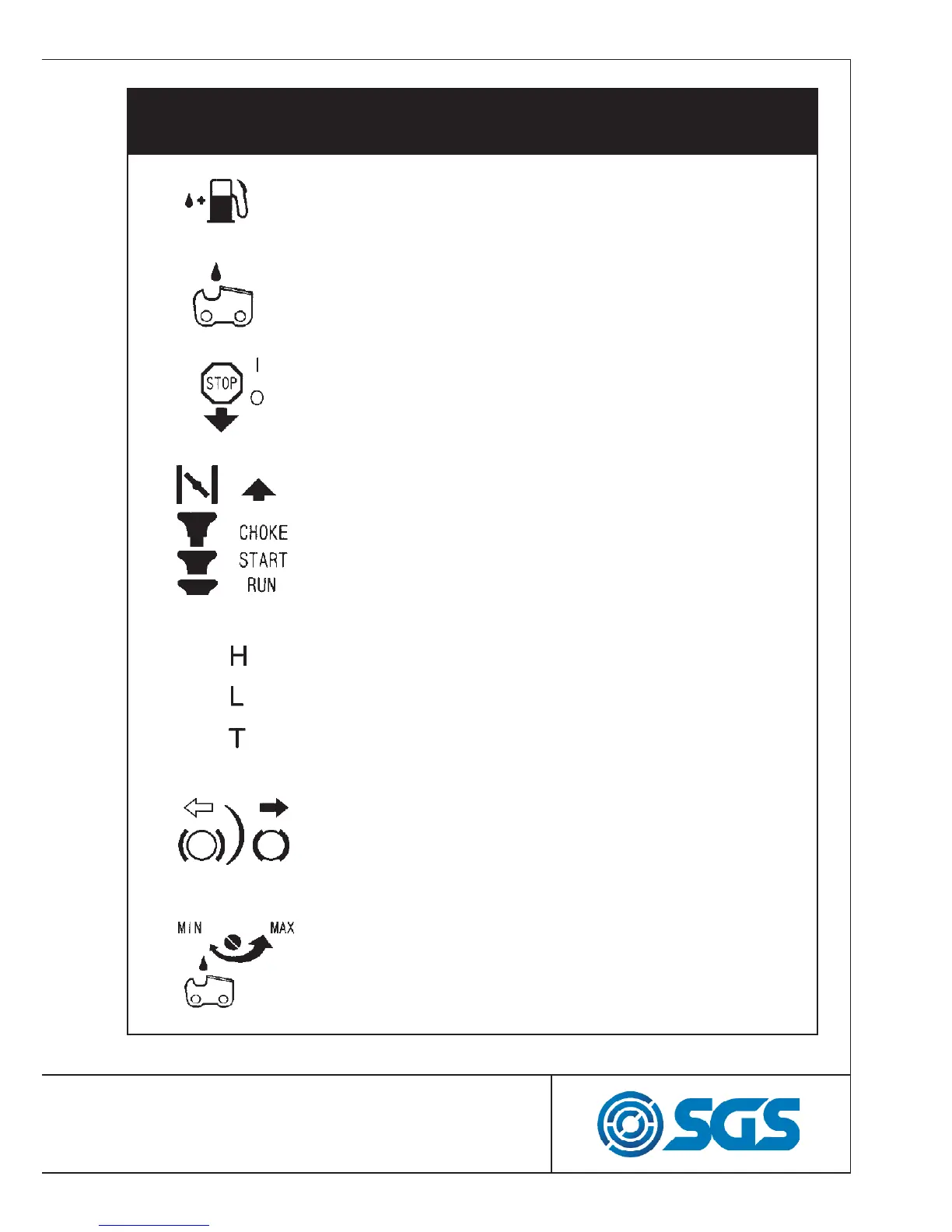

4. EXPLANATION OF SYMBOLS ON THE MACHINE
The port to refuel “MIXED PETROL”
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Starting the engine. If you pull out the
choke knob (at the back-right of the rear
handle) to the point of the arrow, you can
set the starting mode as illustrated.
Position: Upper-right of the aircleaner cover
The screw under the “H” is The High-
speed adjustment screw. The screw under
the “L” is The Slow-speed adjustment
screw. The screw at the left of the “T” is
the Idle adjustment screw.
Position: Left side of the rear handle
Shows the directions that the chain brake is
released (white arrow) and activated (black
arrow).
Position: Front of the chain cover
If you turn the rod by screwdriver follow the
arrow to the “MAX” position, the chain oil
flow more, and if you turn to the “MIN” posi-
tion, less.
Position: Bottom of the power unit
Setting the switch to the “O” position, the
engine stops immediately.
Position: Front at the top of the rear handle
