SDC 1581S - Page 6

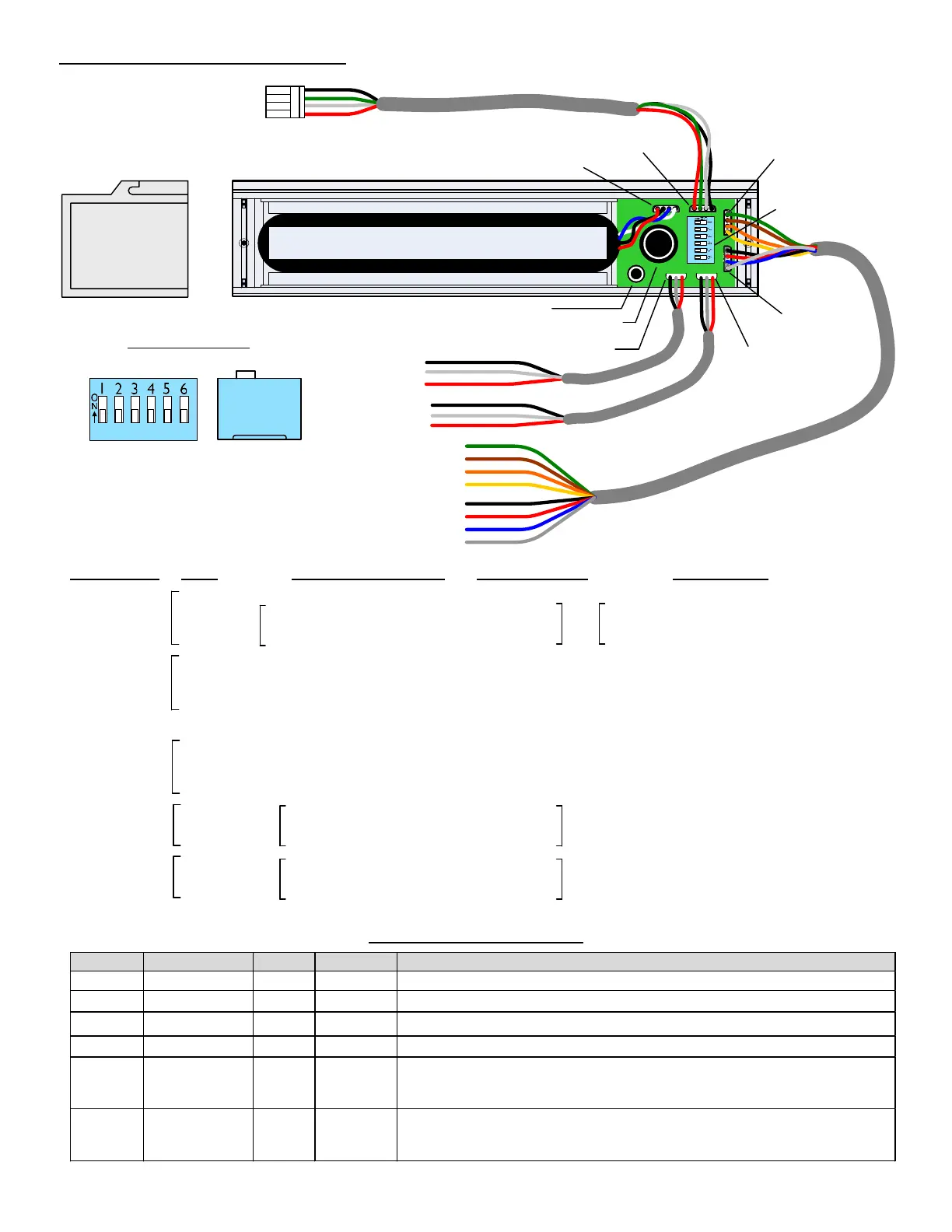

WIRING DETAILS & FUNCTIONS (ALL OPTIONS SHOWN)
ROCKER SWITCH SETTINGS
CONNECTOR INPUT / OUTPUT
GREEN REMOTE TRIGGER INPUT MOM GROUND TO (-) POWER USING DRY CONTACT
BROWN RELAY – COMMON OUTPUT
ORANGE RELAY – CLOSED WHEN IN ALARM OUTPUT
YELLOW RELAY – CLOSED WHEN SECURE OUTPUT
BLACK POWER (-) INPUT REGULATED 12/24 VDC (-) POWER
RED POWER (+) INPUT REGULATED 12/24 VDC (+) POWER
BLUE RESET/REQUEST TO EXIT(REX)
*
INPUT MOM GROUND TO (-) POWER - DRY CONTACT
WHITE REX & MAINTAINED BYPASS INPUT (REX) MOM GROUND TO (-) POWER - DRY CONTACT
(CONT. BYPASS) AA GROUND TO (-) POWER – DRY CONTACT
RED
GREEN
WHITE
BLACK
(2) SPST DRY CONTACT OUTPUTS TO REMOTE
CONTROL ANNUNCIATOR, LED OR ALARM SYSTEM
MONITOR – RATING: 1 Amp @ 30 VOLTS RESISTIVE
DESCRIPTIONCONTROL / FUNCTION
MAIN
CONNECTOR
J1B
MAIN
CONNECTOR
J1A
WIRE
M/SL
CONNECTOR
J3
CABLE FOR TANDEM LOCK
CONNECTION
(OPTIONAL)
INTERCONNECT
INTERCONNECT CABLE INTERFACING TWO
1581S UNITS (MASTER & AUXILIARY) FOR
PAIRS OF DOORS. (CABLE MUST BE
ORDERED SEPARATELY).
DPS OPTION
CONNECTOR
WHITE
RED
BLACK
SWITCH – COMMON OUTPUT
SWITCH – DOOR OPEN OUTPUT
SWITCH – DOOR CLOSED OUTPUT
BAS OPTION
CONNECTOR
WHITE
RED
BLACK
SWITCH – COMMON OUTPUT
SWITCH – N/C OUTPUT
SWITCH – N/O OUTPUT
RATING: .250 mA @ 30 VOLTS RESISTIVE
POLARITY SHOWN WITH THE DOOR UNSECURE
** Power up lock option not available on some versions
*
REX on blue reset wire when enabled by DIP switch
* UL 294 Listed, power
limited, Class 2, power
supply must be used
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-1581S REV F2 12-22 Page 6
USE ONLY SHIELDED CABLE FOR ALL SIGNAL WIRES, WITH
SHIELD GROUNDED AT ONE END
J1B
J1A
DIP SWITCHES
TRIGGER SENSOR
LOCK COIL CONNECTOR
(J4)
TANDEM CABLE (OPTIONAL)
CONNECTOR
(J1B)
CONNECTOR
(J1A)
MASTER/AUXILIARY
CONNECTOR
(J3)
TO MASTER/AUXILIARY
CONNECTOR ON
SECOND 1581S
GREEN
BROWN
ORANGE
YELLOW
BLACK
RED
BLUE
WHITE
DPS
DPS CONNECTOR
BLACK
WHITE
RED
DPS SENSOR (OPTIONAL)
DPS
OPTION
CABLE
MAIN
CABLE
DIP SWITCH DETAIL
ON
OFF
SHOWN SWITCHED TO
OFF CONDITION
Master/SlaveCoil
BAS
1
2
3
4
5
6
BAS
OPTION
CABLE
BLACK
WHITE
RED
BAS CONNECTOR
}
}
SWITCH # FUNCTION OFF ON DESCRIPTION
1 REX Time 1 Second 10 Seconds Internal relock time delay when using REX input controls
2 Power-up Option** Disabled Enabled Manual reset on power-up required when disabled; Auto reset on power-up when enabled
3 Remote Trigger Disabled Enabled When enabled, remote trigger input is used for external activation; Internal sensor disabled
4 Master/Slave Master Slave Designates lock as master or slave for tandem application (tandem cable required)
5 Door Prop Disabled Enabled
When disabled, the lock will enter alarm mode if the door is held open past the REX period.
When enabled, no alarm will sound if the door is held open past the REX period following an
authorized REX signal. Lock will relock and rearm upon closure of the door.
6 REX on Reset Input Disabled Enabled
When disabled, the blue reset will only function as a reset wire after an alarmed release.
When enabled and the lock is secure, momentarily shorting the blue reset wire to ground will
initiate a REX period.
Shunt
