6 Cyl Single ECU

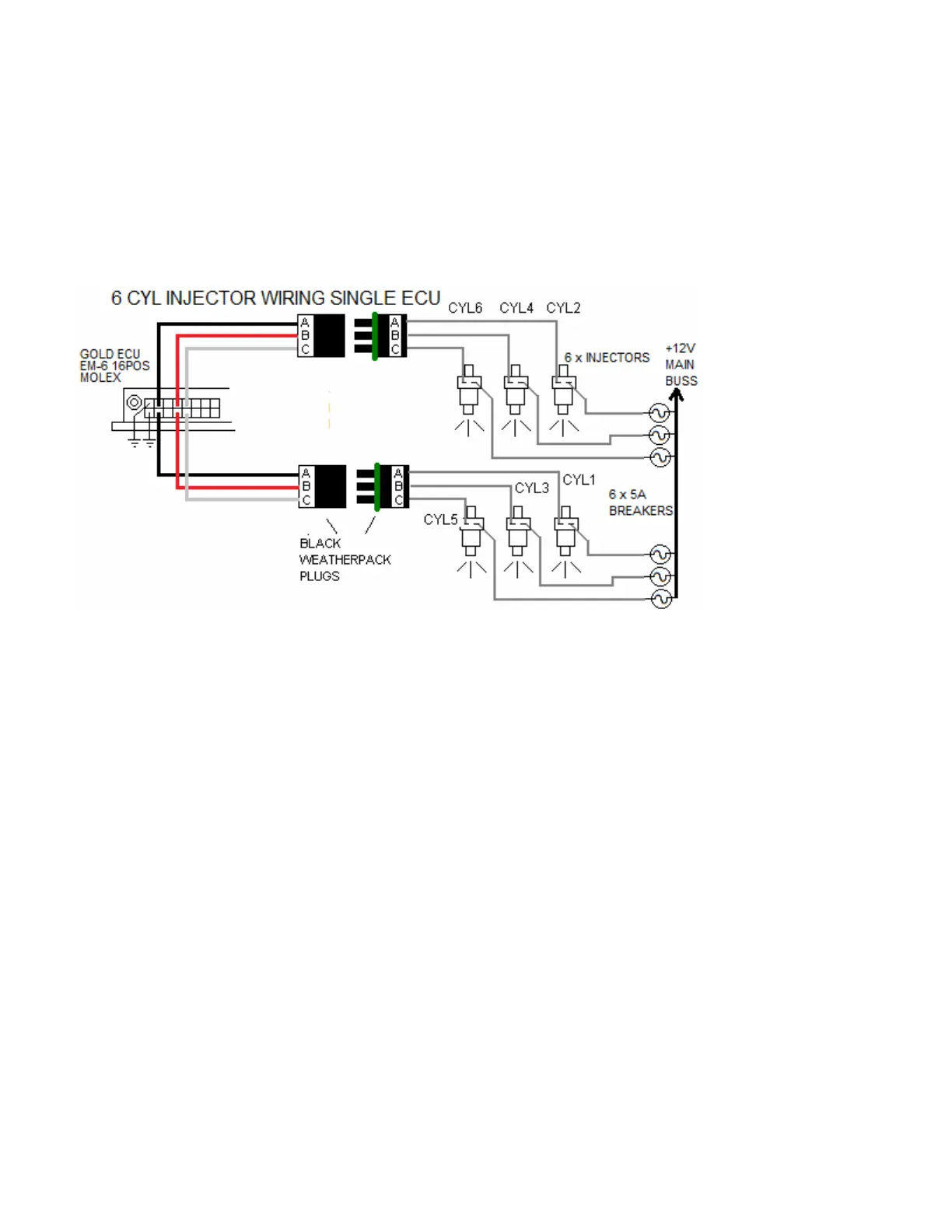

Injector output wire colors 6 Cyl Single ECU:
Blacks to Weatherpack A and Cyl #1 and #2.
Reds to Weatherpack B and Cyl #3 and #4.
Whites to Weatherpack C and Cyl #5 and #6.
It does not matter which black goes to Cyl #1 or Cyl #2., same for other wires. There are really only 3
outputs from the ECU so injectors are actually paired together. A Single ECU cannot do 6cyl individual
cylinder trim, only a Dual ECU setup can do cylinder trim.
If you have a single ECU system skip ahead to Injector Harness section.
