ST310014ACE Product Manual, Rev. D 17
2.3 Jumper settings
2.3.1 Master/slave configuration
The options jumper block shown in Figure 2 is used to configure the drive
for operation. It is the 8-pin dual header between the interface connector
and the power connector. Use the following settings to configure the
drive as a master or a slave.
Master or single drive. The drive is configured at the factory for a master
or single-drive operation with a jumper set on pins 7 and 8.
Drive as slave. Remove all jumpers.
Drive as master with a non-ATA-compatible slave.
Set a jumper on pins 5 and 6 and a jumper on pins 7 and 8. Use this
jumper setting only if the drive does not work as a master with no jumpers
installed.

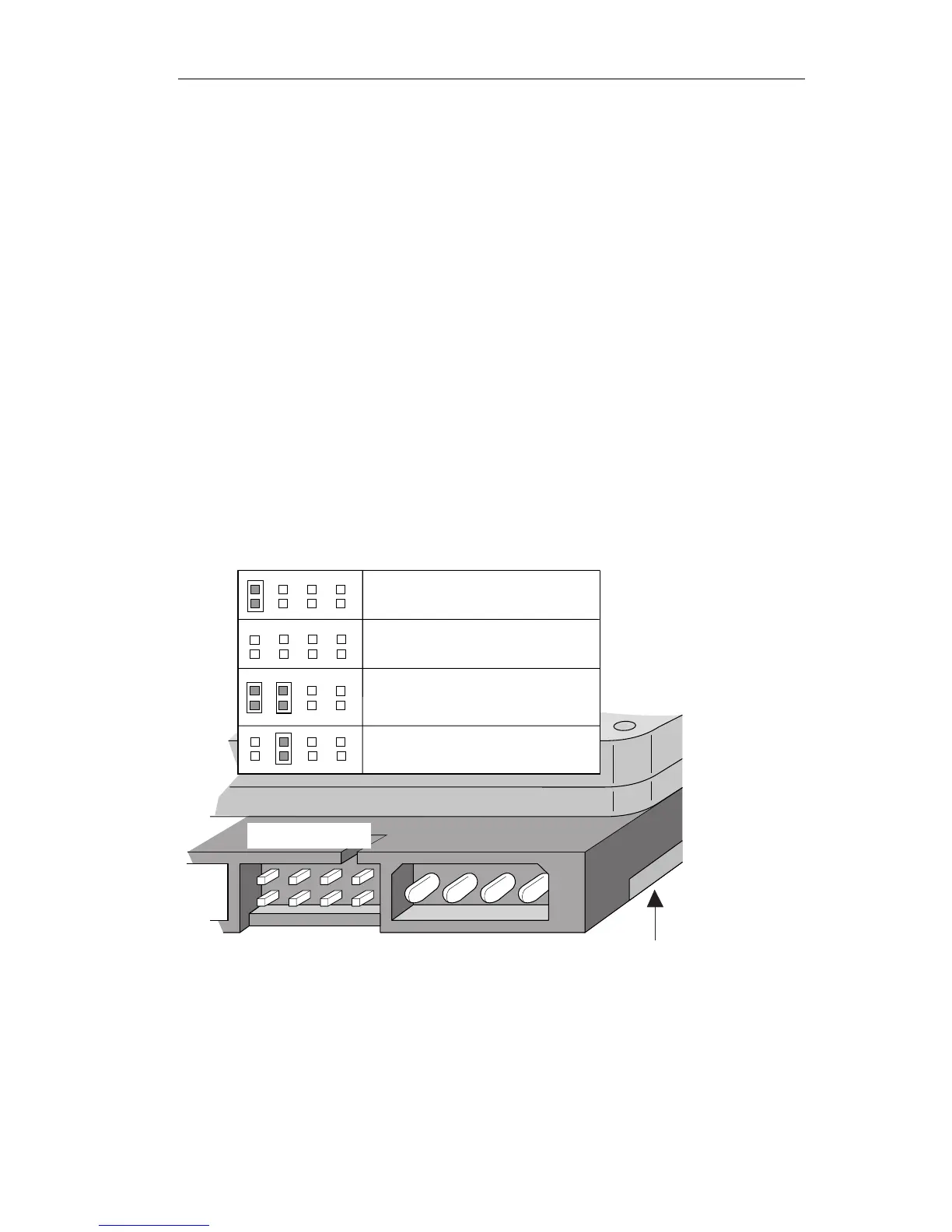

Figure 3. Master/slave jumper settings
Circuit Board
2
684
1753
Options jumper block
Drive is slave
Master or single drive
Cable select
Master with non ATA-
compatible slave
