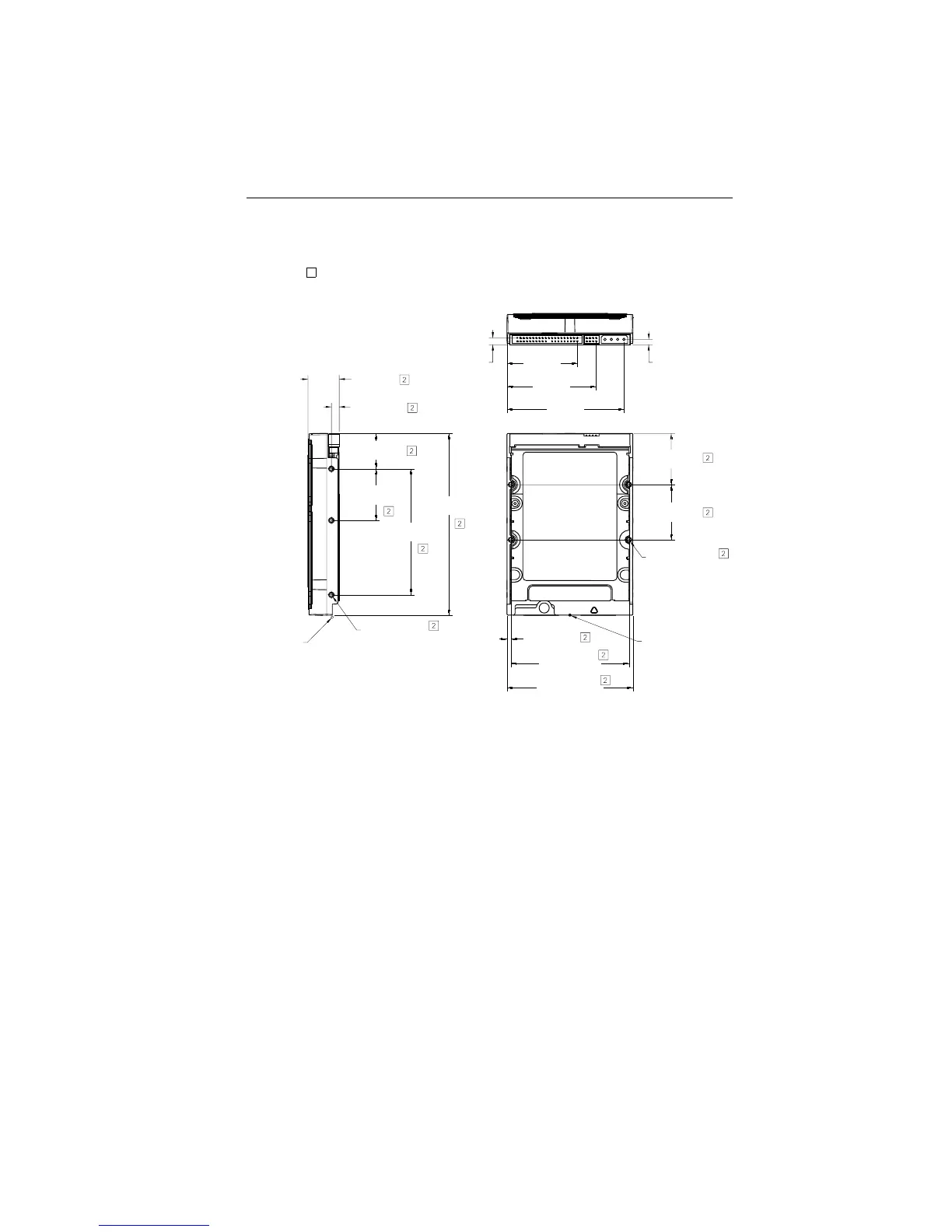

Figure 4. Mounting dimensions—top, side and end view
Notes:
1. Dimensions are shown in inches (mm).
2 Dimensions per SFF-8301 specification.
3× 6-32 UNC-2B
3 min. thread depth
0.15 (3.8) max. fastener
penetration both sides
Recommended
case temperature
measurement location
0.125 ± 0.01
(3.18 ± 0.25)
3.75 ± 0.01
(95.25 ± 0.25)
4.0 ± 0.01
(101.60 ± 0.25)
Recommended
case temperature
measurement location
4× 6-32 UNC-2B
3 min. thread depth
0.15 (3.8) max. fastene
r
penetration
1.75 ± 0.01
(44.45 ± 0.25)
1.625 ± 0.02
(41.28 ± 0.51)
4.0 ± 0.01
(101.60 ± 0.25)
5.787 max
(146.99)
1.638 ± 0.01
(41.61 ± 0.25)
1.122 ± 0.02
(28.5 ± 0.51)
3× 0.25 ± 0.01
(6.35 ± 0.25)
both sides
1.028 max
(26.11)
0.218
(5.54)
0.168
(4.27)
2.23
(56.56)
2.83
(71.80)
3.71
(94.35)
