SEAGATE LAPTOP THIN HDD PRODUCT MANUAL, REV. K 18
CONFIGURING AND MOUNTING THE DRIVE

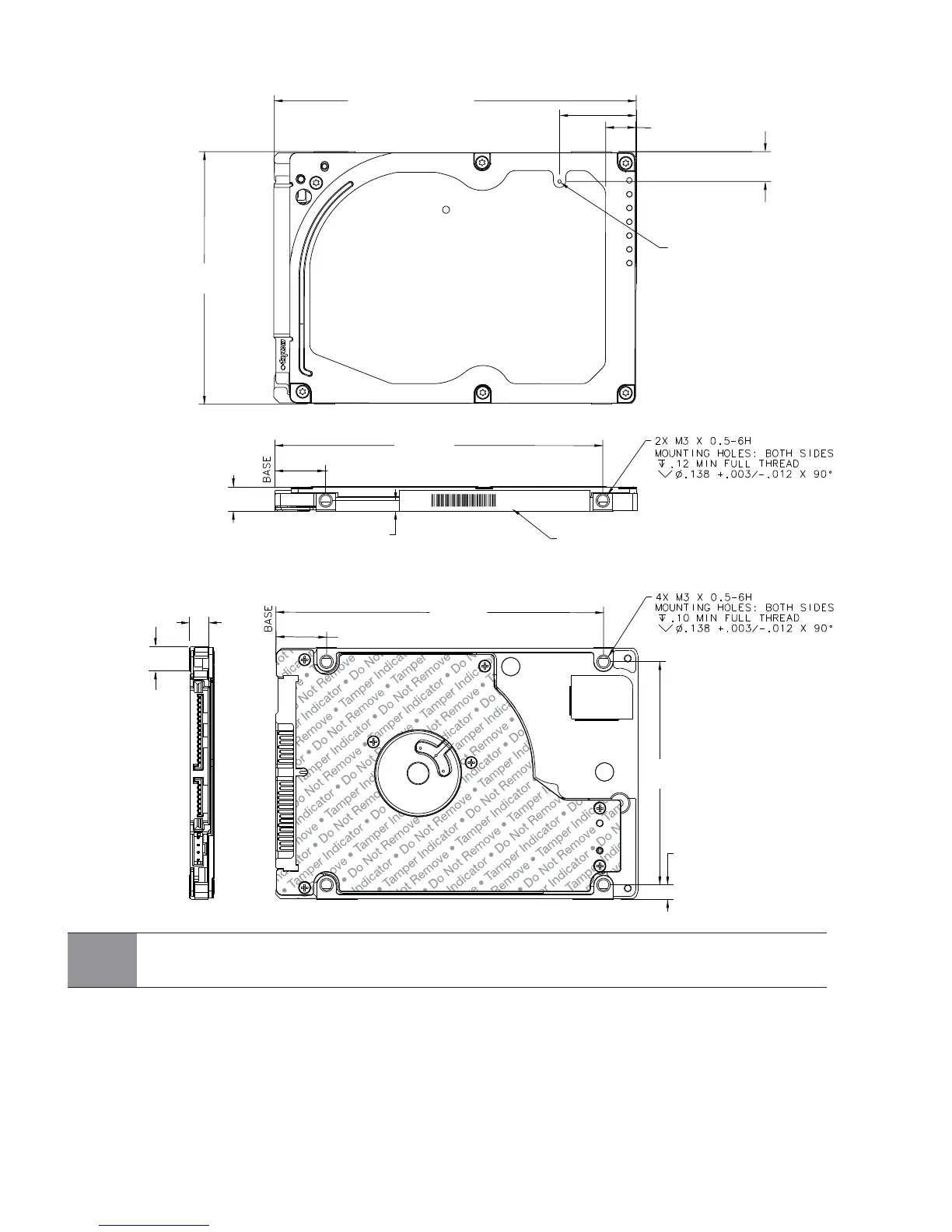

Figure 4 Mounting dimensions (for FIPS 140-2 models)
NOTE
FIPS 140-2 Models Contain 3 Tamper Evident Stickers with the marking "Tamper Indicator - Do Not Remove".
These stickers must remain attached to provide the tamper evidence throughout the life of the drive.
Removing these stickers will indicate tampering and void the drive warranty. (May not represent actual labels.)
BREATHER HOLE,
DO NOT COVER OR SEAL
2.750 ± .010 in
69.85 ± .25 mm
3.951 +.008 / -.010 in
100.36 +.203 / -.25 mm
.835 ± .010 in
21.21 ± .25 mm
.334 ± .050 in
8.48 ± 1.27 mm
.324 ± .010 in
8.23 ± .25 mm
0.268 ± .008 in
6.81 ± .203 mm
.551 in
13.99 mm
3.567 in
90.60 mm
3.567 in
90.60 mm
.551 in
13.99 mm
2X .118 in
2.99 mm
BOTH SIDES
.160 in
4.06 mm
2.430 in
61.72 mm
.263 in
6.68 mm
.230 in
5.84 mm
Do Not Remove *
Tamper Indicator *
C
TAMPER PROOF LABELS ON BOTH SIDES
DO NOT PEEL OR REMOVE.
