SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C 8
DRIVE SPECIFICATIONS
2.7.1.1 Typical current profiles
The typical 5V startup and operation current profile is shown in Figure 1.

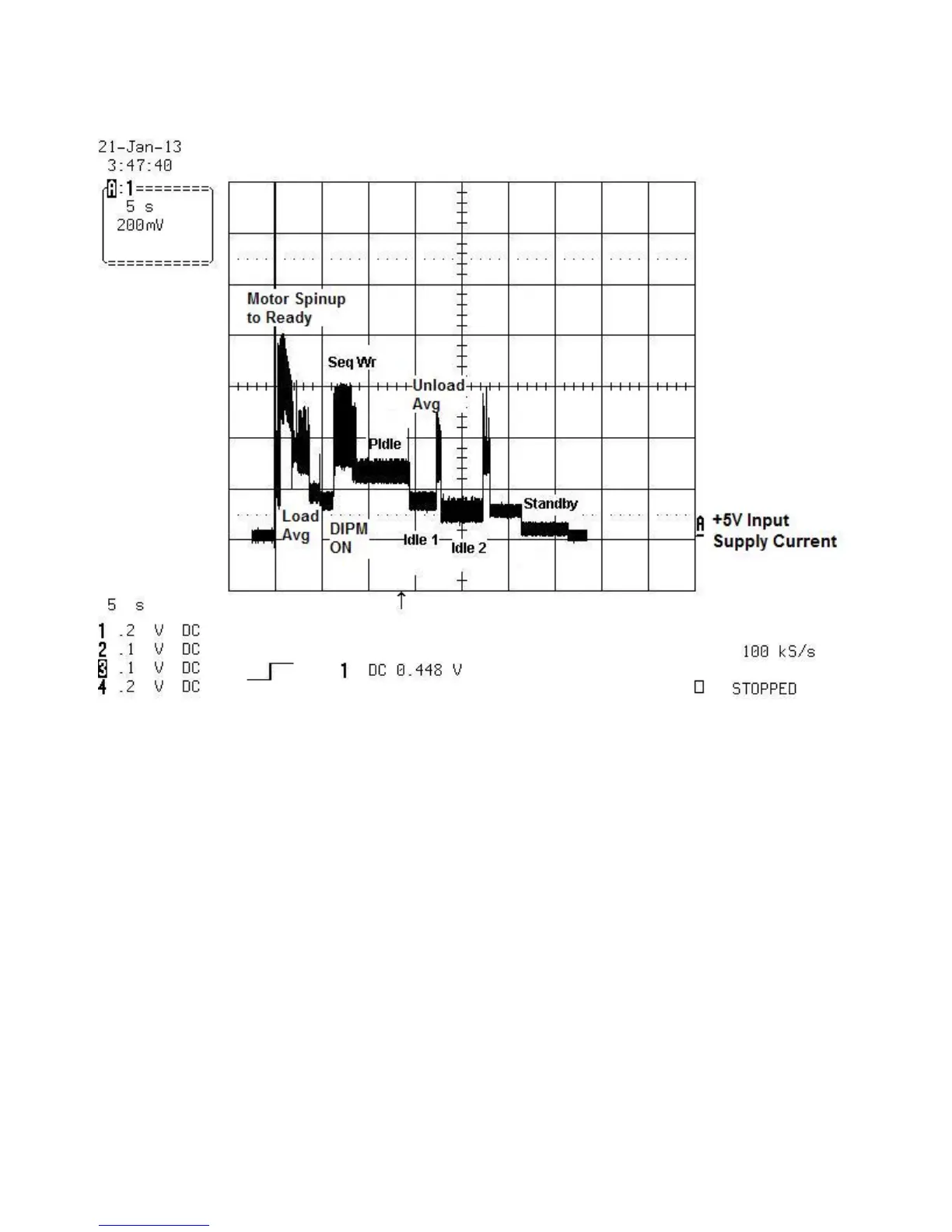

Figure 1 Typical 5V Startup and Operation Current Profile
