INSTALLATION
MANUAL
Product: Document #: Rev: Page:
SEAKEEPER 6 90402 1 6 of 6
Section 2: ELECTRICAL INSTALLATION
5. SEAKEEPER DC POWER CONNECTION INSTRUCTIONS
Reversing polarity on the DC power input to the Seakeeper can result
in damaging the electronics in the control system.
a. 12 VDC, 15 Amps. 2 x 12AWG (3 x 4mm
2
CSA) customer supplied.


i. Install Seakeeper provided DC Power Input Cable, P/N: 20248 as CABLE 1.
1. Route CABLE 1 to DC Power Distribution Panel.
2. Terminate RED conductor to +12 VDC. Terminate BLACK
conductor to 12V Rtn or Zero VDC.
ii. Before connecting CABLE 1 to Seakeeper, check for proper voltage and
polarity with a DC multimeter using Figure 7 below.
iii. Connect CABLE 1 to 12VDC input receptacle on Seakeeper.
When energizing DC power the first time, if Display does not power up
immediately then disconnect and inspect connector polarity.

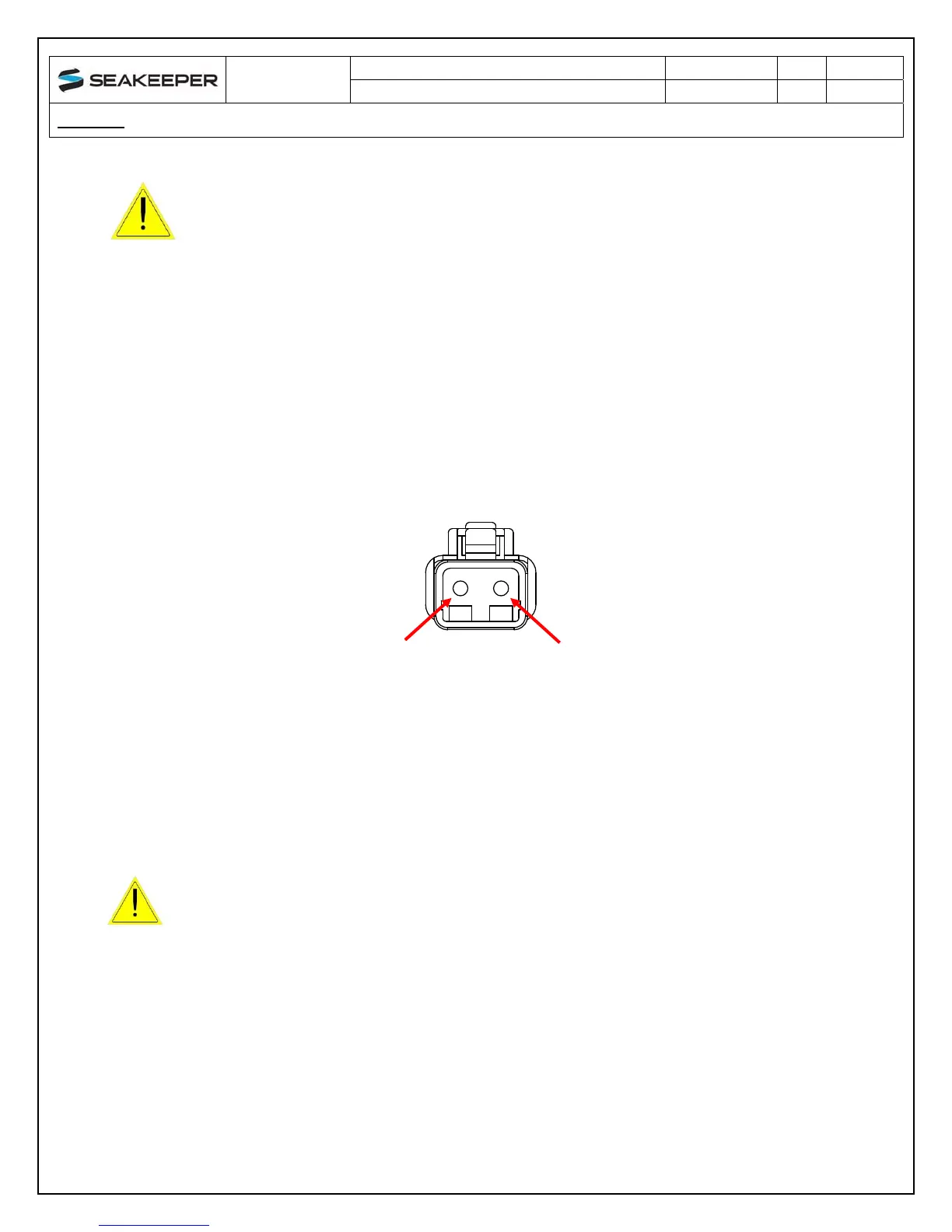

FIGURE7–DCPOWERINPUTCONNECTOR
CONTACTASSIGNMENTS
(
front
)
1
(+12VDC)
2
(12VRtn)
