6.1.2.2. 24V JUMP STARTING
NOTE: Read point
6.2 detection of 24V

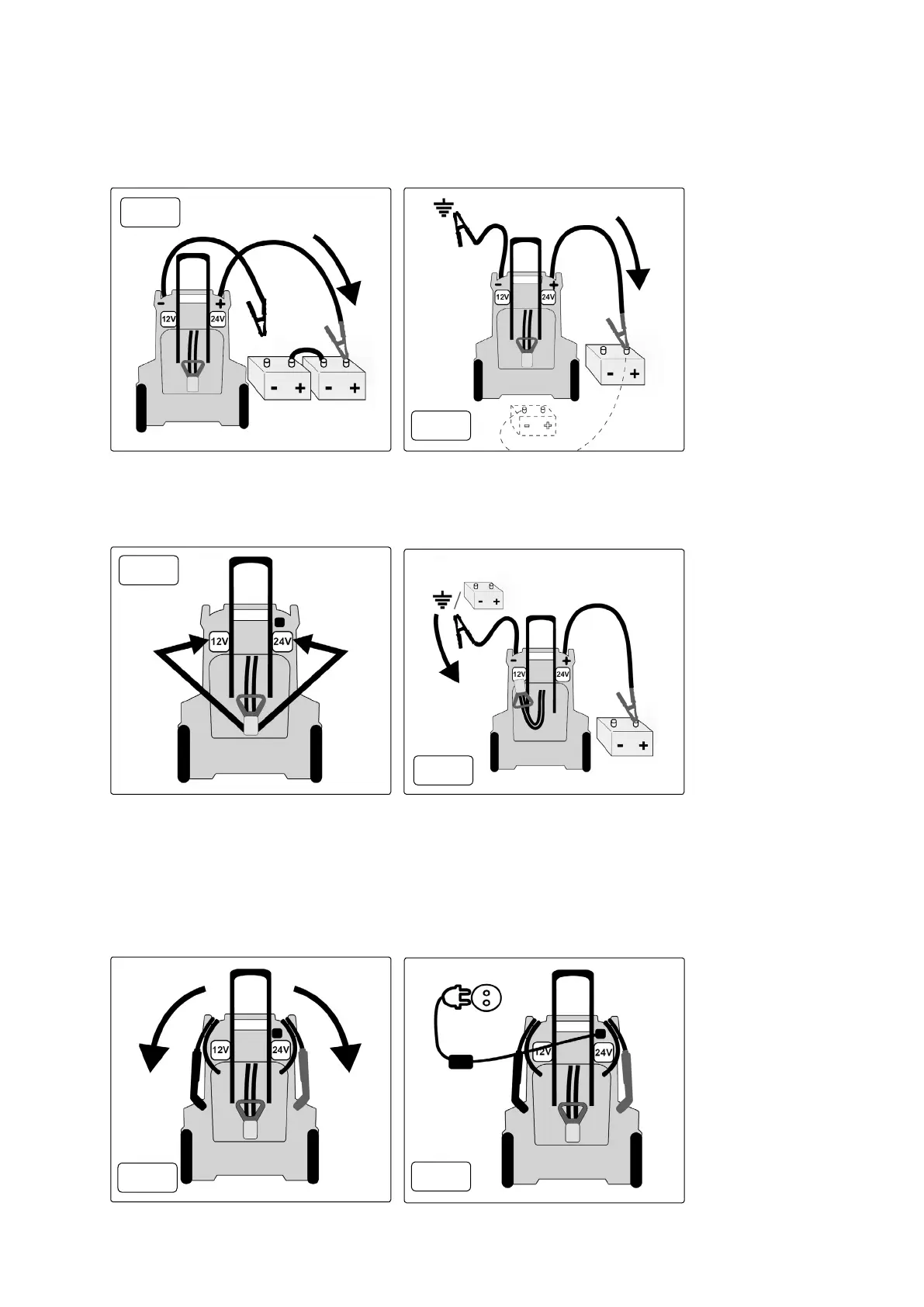

IF THE BATTERIES ARE SIDE BY SIDE,g.3
Connect the red clamp (+) to the positive terminal (+) of the battery, then connect the Black clamp (-) to the negative (-) terminal of the
other battery.
IF THE BATTERIES ARE ON BOTH SIDES OF THE VEHICLE,g.4
Connect the Red clamp (+) to the positive terminal (+) of the battery, then connect the black clamp (-) to the negative terminal (-) or to
the mass of the vehicle.
6.1.3. VOLTAGESELECTION,g.5
6.1.3.1. Select the correct voltage, for the vehicle to be jump started.
NOTE: From this moment on there is voltage to the clamps.
6.1.4. START THE ENGINE
6.1.4.1. Turn the ignition key for a maximum of 3 - 8 seconds. Wait for a further minute before attempting to start again.
6.1.5. DISCONNECTION,g.6
6.1.5.1. Disconnect the black (-) clamp rst followed by the red (+) clamp.
6.1.6. DISCONNECTIONOFTHEVOLTAGESELECTOR,g.7
6.1.7. After starting disconnect the voltage selector.
6.1.8. STORAGE,g.7seealsoSection7
6.1.9. Return the clamps to their support posts.
6.1.10. RECHARGING,g.8,seealsoSection8
6.1.10.1. Recharge the Roadstart immediately after use.
fig.
6
fig.
7
fig.
8
fig.
5
fig.
3
fig.
4
