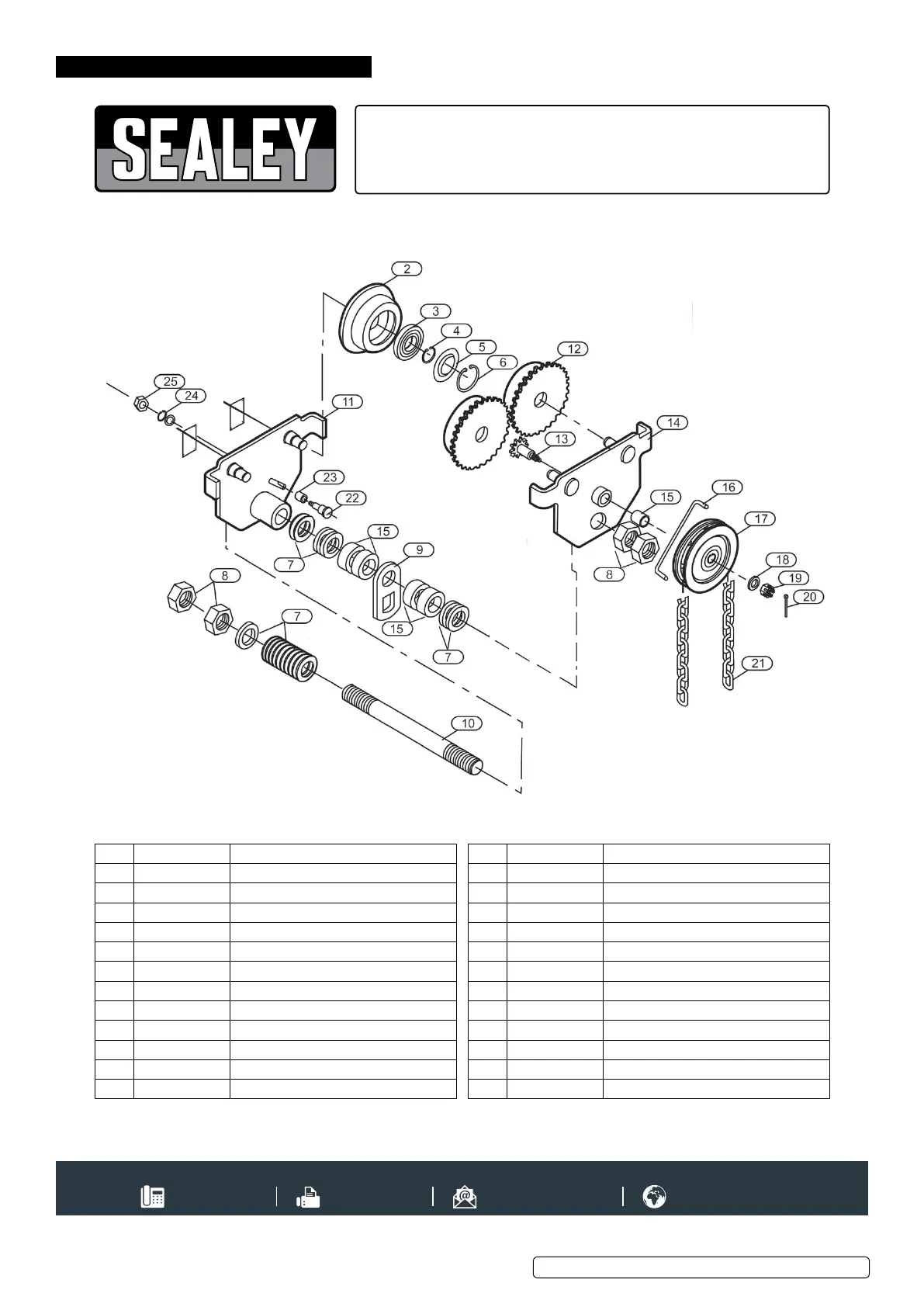

10. PARTS DIAGRAM PT1000G.V2
PT1000G.V2 Issue 2 PL 30/01/18
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500
01284 703534
sales@sealey.co.uk
www.sealey.co.uk
Page 1 of 1
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
Parts Information:
Trolley Geared 1tonne
Model No: PT1000G.V2
Item Part No. Description
2 PTG.V DRIVEN WHEEL
3 PTG.V BEARING
4 PTG.V RETAINING RING
5 PTG.V BEARING RING
6 PTG.V RETAINING RING
7 PTG.V SPACER WASHER
8 PTG.V HEX NUT
9 PTG.V LIFTING RING
10 PTG.V PIN
11 PTG.V LEFT SIDE GEAR CASE ASS'Y
12 PTG.V TOOTH GEAR
13 PTG.V DRIVEN SPINDLE
Item Part No. Description
14 PTG.V RIGHT SIDE GEAR CASE ASS'Y
15 PTG.V COPPER SLEEVE
16 PTG.V CATCH PIN
17 PTG.V CHAIN WHEEL
18 PTG.V SPACER WASHER
19 PTG.V HEX NUT
20 PTG.V SPLIT PIN
21 PTG.V CHAIN
22 PTG.V ROLL SPINDLE
23 PTG.V ROLL SLEEVE
24 PTG.V SPRING WASHER
25 PTG.V HEX NUT
