7 DO NOT operate within the vicinity of flammable liquids,
gases or solids.
7 DO NOT touch compressor cylinder, cylinder head or pipe
from head to tank as these may be hot.
7 DO NOT use this product to perform a task for which it has
not been designed.
7 DO NOT deface the certification plate attached to the
compressor tank.
7 DO NOT cover the compressor or restrict air flow around the
unit whilst operating.
q DANGER! DO NOT direct the output jet of air towards
people or animals.
7 DO NOT operate the compressor without an air filter.
7 DO NOT allow anyone to operate the compressor unless
they have received full instructions.
WARNING! The air tank is a pressure vessel and the
following safety measures apply:
7 DO NOT tamper with the safety valve, DO NOT modify or alter
the tank in any way and DO NOT strap anything to the tank.
7 DO NOT subject the tank to impact, vibration or to heat and
DO NOT allow contact with abrasives or corrosives.
3 Drain condensation from tank daily and inspect inside walls
for corrosion every three months and have a detailed tank
inspection carried out annually. The tank shell must not fall
below the certified thickness at any point.
WARNING! If an electrical fuse blows, ensure it is replaced
with an identical fuse type and rating.
3 When not in use, store the compressor carefully in a safe,
dry, childproof location.
3
When the compressor is not in use, it should be
switched off, disconnected from the mains supply and
the air drained from the tank.
2. INTRODUCTION & SPECIFICATIONS
Our top of the range single phase compressors, these units are suitable for the professional workshop and are fitted with a genuine 3hp
motor. Twin capacitors and a centrifugal switch aid trouble free starting on a good 13amp supply. In some cases a 16amp supply may be
required. Pumps feature heavy-duty full cast cylinders capped by alloy heads for improved heat dissipation and long life. Heavy-duty drive
guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Model: .......................SAC2103B.V2............ SAC2153B.V2 ............ SAC2203B.V2
Motor Output (HP):.........................3.......................3 .......................3
Voltage (V)/Phase: ..................... 230/1....................230/1 ....................230/1
Input current (A): .........................16......................16 ......................16
Speed (rpm): ..........................1280....................1280 ....................1280
Air Displacement (cfm/Lm): ............. 15/425...................15/425 ...................15/425
Max Free Air Delivery (cfm/Lm):.........10.9/309................. 10.9/309 .................10.9/309
Max Pressure (psi/bar): ................ 145/10...................145/10 ...................145/10
Tank Capacity (L): .......................100.....................150 .....................200
Dimensions (WxDxH) (mm):.......1040x460x910............ 1320x400x855 ............ 1440x440x900
Weight (kg): .............................66......................85 ......................97
Noise db(A): .............................76......................76 ......................76
Noise LwA db(A): . . . . . . . . . . . . . . . . . . . . . . . . . 96......................96 ......................96
3. PREPARATION
3.1. Remove compressor from packaging and inspect for any
shortages or damage. If anything is found to be missing or
damaged contact your supplier.
3.2. Save the packing material for future transportation of the
compressor. We recommend that you store the packing in a
safe location, at least for the period of the guarantee. Then, if
necessary, it will be easier to send the compressor to the
service centre.

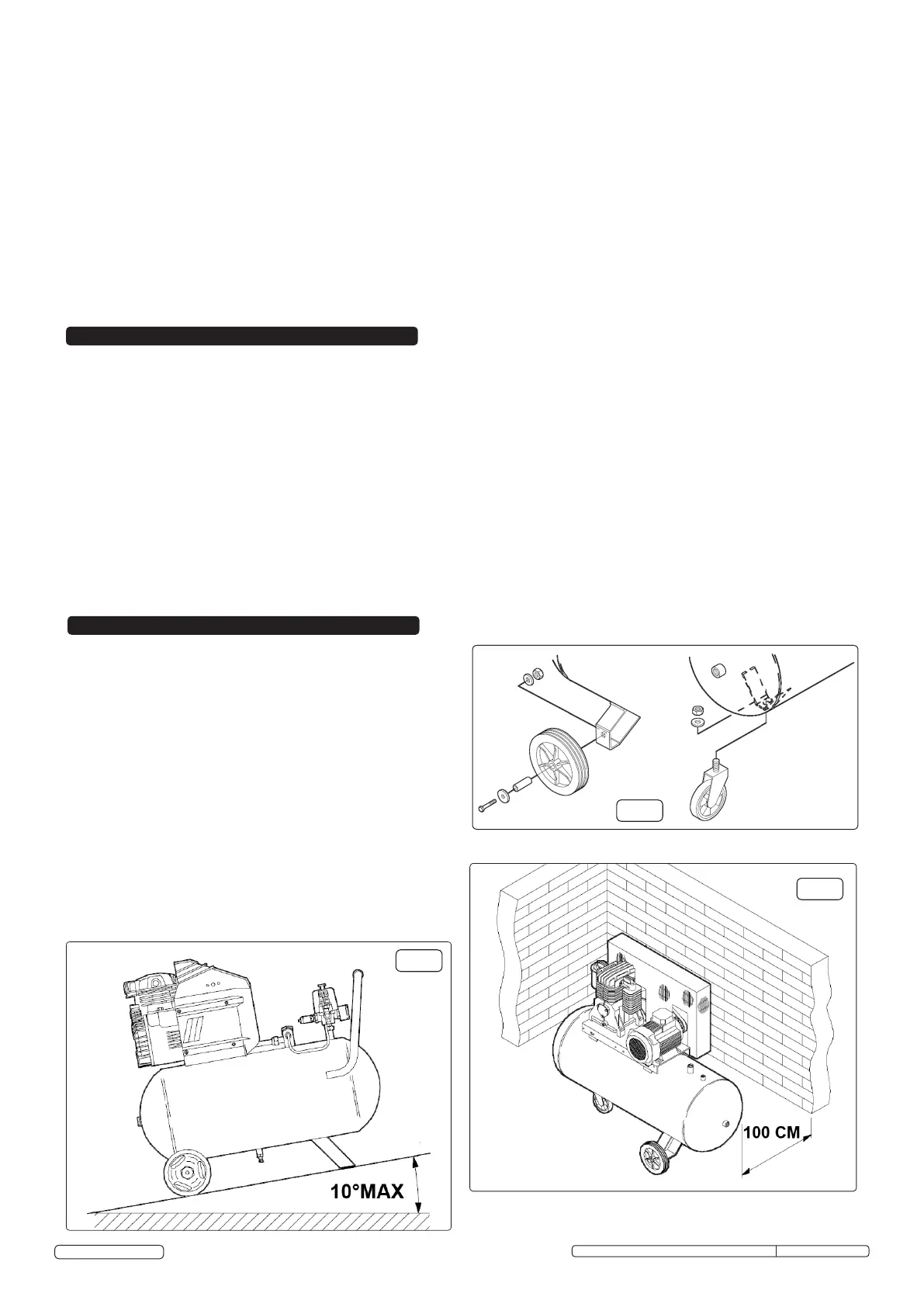

3.3. Assemble the two xed wheels and the castor wheel to the
SAC2103B.V2 as shown in g.1.
3.4. Confirm that the mains voltage corresponds with the voltage
shown on the compressor data plate.
3.5. Position the compressor on a at surface or with a maximum
permissible inclination of 10° (g.2). Site in a well ventilated
place, protected against atmospheric polution and not in a
place subject to explosion hazard. If the surface is inclined and
smooth, check if the compressor moves while in operation – if
it does, secure the wheels with two wedges. If the surface is in
a raised position, make sure it cannot fall, securing it in a
suitable way.
fig.2
fig.3
fig.1
SAC2103B.V2
Original Language Version
SAC2103B.V2, SAC2153B.V2, SAC2203B.V2 Issue: 1 - 30/10/13
© Jack Sealey Limited
