4. INSTALLATION
 WARNING! leavethismobileair-conditionerinanuprightpositionforatleast2hoursbeforerstuse.Ensurethattheairconditioner
 remainsinanuprightpositionwhilstitisbeingmoved.Placetheair-conditioneronaatgroundsurface.
4.1.  Connector25andWindowSealingBoardAssembly28arettedtoExhaustHose26.Place25and26ateachendofthehoseand
screw clockwise onto the hose to connect.

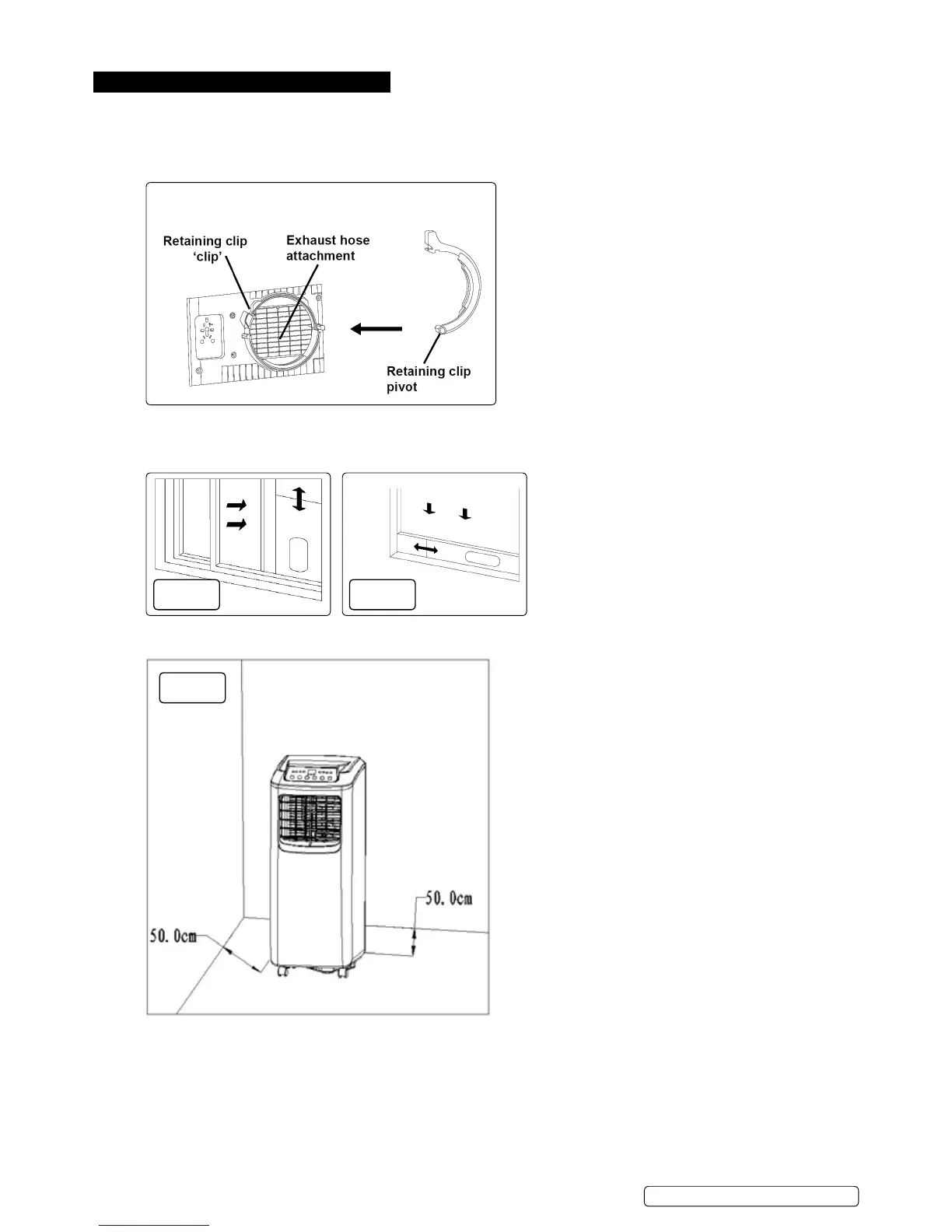

Exhaust hose Retaining Clamp assembly;
4.2. Select the exhaust hose retaining clamp.
4.3. Fit the exhaust hose to the circular aperture at the rear and secure with the retaining clamp. Rotate the retaining clamp anticlockwise
and snap the retaining clamp closed to secure the Heat Exhaust Hose.
4.4. Fit 27 window sealing board to the window as shown in Fig 1 (vertical) or Fig 2 (horizontal).
4.5. Position the mobile air-conditioner, with the exhaust hose assembly attached, near to a window. Keep the mobile air conditioner at
least 50cm away from the walls or other objects. (As shown in Fig 3)
4.6.  Snaptheatendoftheexhausthoseconnectorintotheellipticalholeofthewindowsealingboardassembly(asshowninFig4and
Fig 5).
4.7. To ensure adequate operation, ensure that the exhaust hose is not kinked, do not bend the exhaust hose any more than 45°.
 Important:
 Theexhausthoseis280mm-1500mmlongandthislengthisdeterminedbasedonthespecicationoftheair-conditioner(s).Do 
 notusehoseswithotherspecications.Donotreplacewithnon-genuinecomponentsasthismayaffectthefunctionsofthe 
 air-conditioner.Theowofexhaustmustbesmooth.Obstructedexhaustmaycausetheair-conditionertooverheat. 
Fig.1 Fig.2
Fig.3
